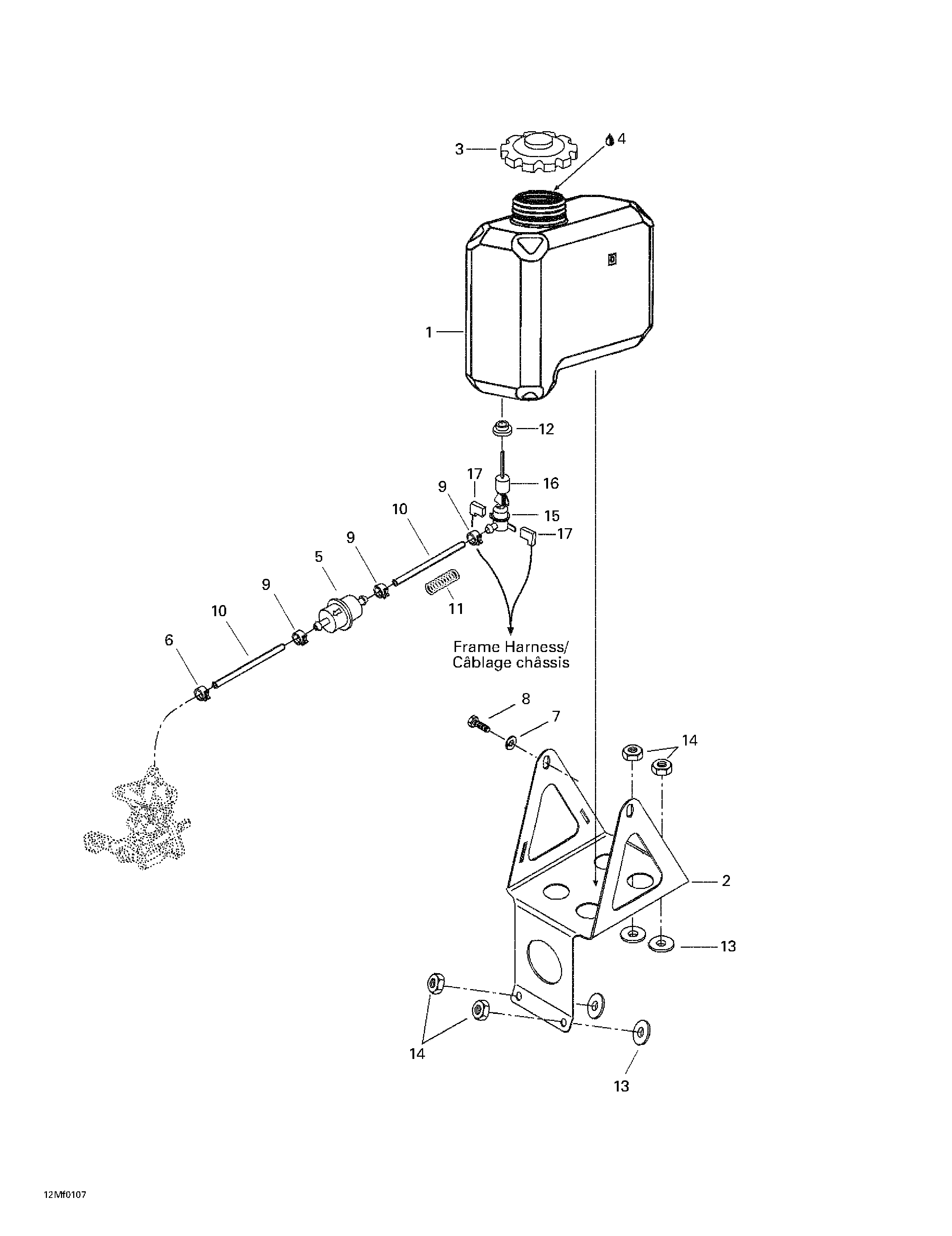

02- Oil Tank And Support для BRP Ski-Doo Summit 500 F - 2001
-
№АртикулНазвание
-
1572106700 Oil TankOil Tank
-
2517284700 Oil Tank SupportOil Tank Support
-
3572071000 CapCap
-
4413803100 Blizzard Oil (12 x 500 ml)Blizzard Oil (12 x 500 ml)
-
413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liter)Injection Oil (3 x 4 Liter)
-
413803200 Injection Oil (205 Liter)Injection Oil (205 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liter)Synthetic Injection Oil (3 x 4 Liter)
-
413710700 Synthetic Injection Oil (205 Liter)Synthetic Injection Oil (205 Liter)
-
413710500 Synthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-SSynthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-S
-
5414536500 FilterFilter
-
6414420700 Spring ClampSpring Clamp
-
7234161471 Lock Washer 6 mmLock Washer 6 mm
-
8207161044 Hex. Screw M6 x 10Hex. Screw M6 x 10
-
9414415200 Spring ClampSpring Clamp
-
10415080700 LineLine
-
11414940300 SpringSpring
-
12570023000 Insulated RingInsulated Ring
-
13414454400 Rubber SpacerRubber Spacer
-
14232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
15414681800 Level SwitchLevel Switch
-
16414681900 FloatFloat
-
17409010300 Femelle TerminalFemelle Terminal
