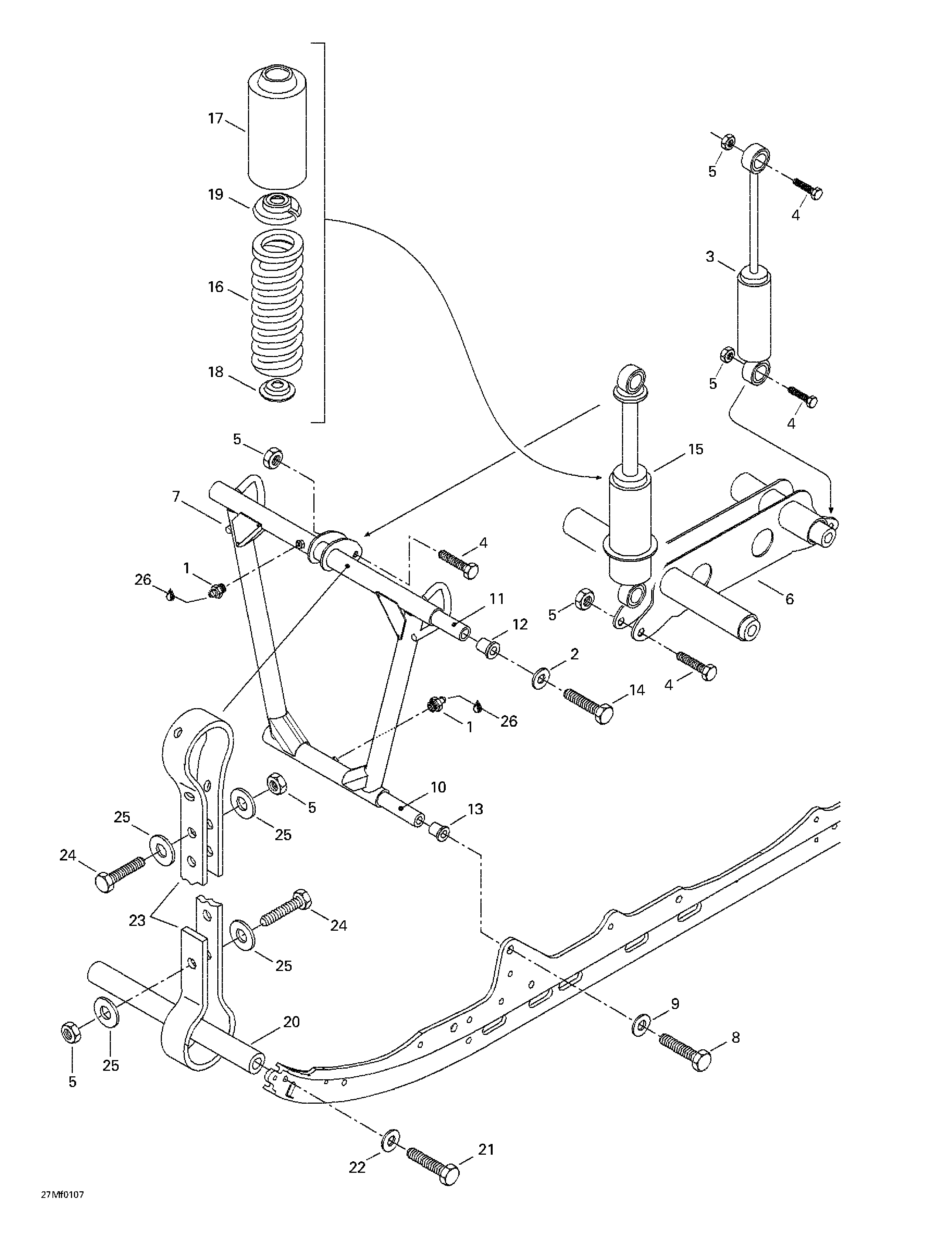

08- Front Arm для BRP Ski-Doo Summit 500 F - 2001
-
№АртикулНазвание
-
1408200700 Grease Fitting M6Grease Fitting M6
-
2732900049 WasherWasher
-
3503189612 Rear ShockRear Shock
-
4207084044 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
5232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
6503189466 Shock SupportShock Support
-
7503189311 Front ArmFront Arm
-
8207226044 Hex. Screw M12 x 60 (Scotch Grip)Hex. Screw M12 x 60 (Scotch Grip)
-
9503189276 WasherWasher
-
10503189313 ShaftShaft
-
11503188938 ShaftShaft
-
12503189324 CushionCushion
-
13503189323 CushionCushion
-
14207205544 Hex. Screw M10 x 55 (Scotch Grip)Hex. Screw M10 x 55 (Scotch Grip)
-
15503189611 ShockShock
-
16503189000 SpringSpring
-
17503188930 ProtectorProtector
-
18503165100 Spring GuideSpring Guide
-
19503140600 Spring StopperSpring Stopper
-
20503151600 AxleAxle
-
21207383044 Hex. Screw M8 x 30 (Scotch Grip)Hex. Screw M8 x 30 (Scotch Grip)
-
22503189157 WasherWasher
-
23503189362 Stopper StrapStopper Strap
-
24207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
25224081301 Flat WasherFlat Washer
-
26219700417 Synthetic Grease, 400gSynthetic Grease, 400g
