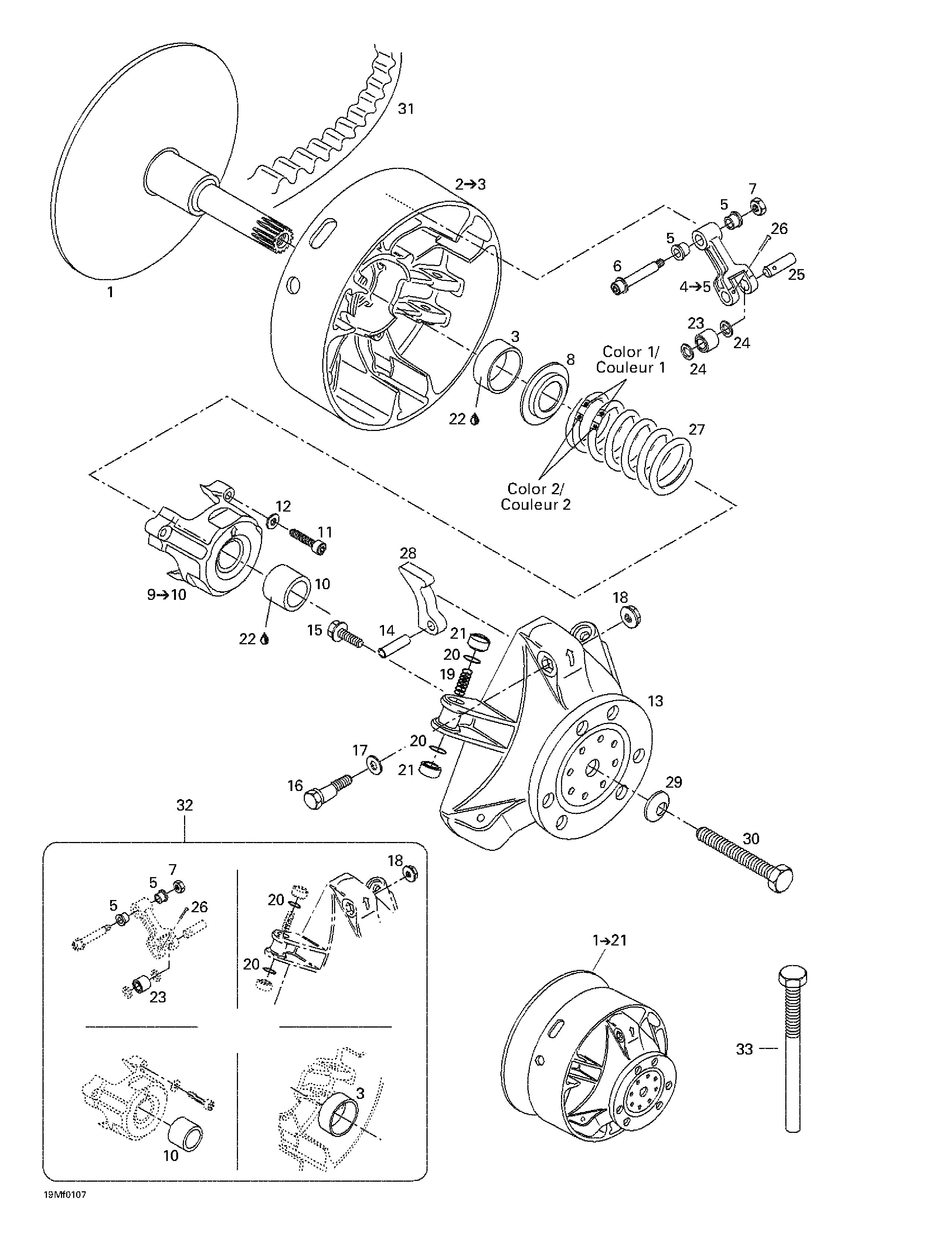

05- Drive Pulley для BRP Ski-Doo Summit 500 F - 2001
-
№АртикулНазвание
-
1417222368 Drive Pulley Ass'y. Includes 1 - 21.Drive Pulley Ass'y. Includes 1 - 21.
-
1417222250 Fixed FlangeFixed Flange
-
2417222241 Sliding Flange Ass'y. Includes 2 - 3.Sliding Flange Ass'y. Includes 2 - 3.
-
3417004201 BushingBushing
-
4417222383 Lever Ass'y. Includes 4 - 5.Lever Ass'y. Includes 4 - 5.
-
5417004305 BushingBushing
-
6417004800 Screw Ass'yScrew Ass'y
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8417222044 Spring SeatSpring Seat
-
9417222304 Spring Cover Ass'y. Includes 9 - 10.Spring Cover Ass'y. Includes 9 - 10.
-
10417004501 BushingBushing
-
11205064086 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
12420245370 WasherWasher
-
13417222081 Governor Cup Ass'yGovernor Cup Ass'y
-
14732804009 Rolled Pin M8 x 24Rolled Pin M8 x 24
-
15210361890 Hex. Forming Screw M6 x 18Hex. Forming Screw M6 x 18
-
16417005500 Calibration ScrewCalibration Screw
-
17417005600 WasherWasher
-
18233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
19417005700 SpringSpring
-
20732401030 O-RingO-Ring
-
21417005800 Slider ShoeSlider Shoe
-
22413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
23417003900 Roller Ass'yRoller Ass'y
-
24417004302 Stopper WasherStopper Washer
-
25417004309 PinPin
-
26732958001 Cotter PinCotter Pin
-
27414762800 Spring (Green/Violet)Spring (Green/Violet)
-
28417005227 Ramp 227Ramp 227
-
29250200005 Conical Spring WasherConical Spring Washer
-
30417113800 BoltBolt
-
31417300064 Drive BeltDrive Belt
-
32417006100 Clutch Repair KitClutch Repair Kit
-
33529007900 Puller Inner HalfPuller Inner Half
