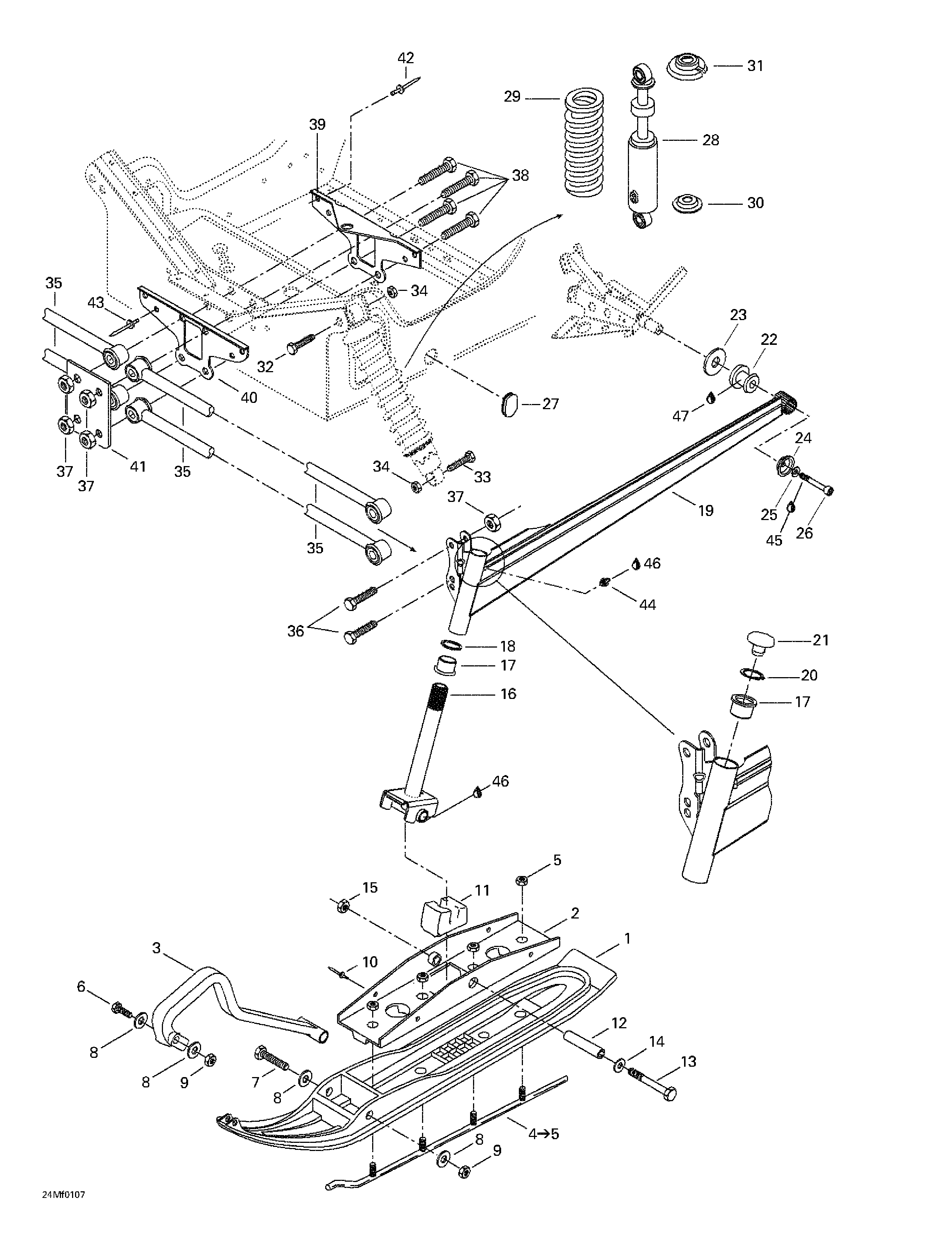

07- Front Suspension And Ski для BRP Ski-Doo Summit 500 F - 2001
-
№АртикулНазвание
-
1505070189 Flexible Ski LinerFlexible Ski Liner
-
2505070055 Bridge Ass'yBridge Ass'y
-
3572101000 Plastic HandlePlastic Handle
-
4860501900 Carbide Runner Kit. Includes 4 - 5.Carbide Runner Kit. Includes 4 - 5.
-
5233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
6207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
7230080044 Hex. Screw M8 x 100Hex. Screw M8 x 100
-
8234081410 Flat Washer 8 mmFlat Washer 8 mm
-
9232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
10390911100 Pop Rivet 1/4''Pop Rivet 1/4''
-
11506151233 Ski StopperSki Stopper
-
12506133300 SpacerSpacer
-
13250000001 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
14732900049 WasherWasher
-
15732610084 Flanged NutFlanged Nut
-
16506151234 Ski LegSki Leg
-
17505070003 CushionCushion
-
18505070004 WasherWasher
-
19505070707 R.H. Swing Arm (Full Moon)R.H. Swing Arm (Full Moon)
-
505070708 L.H. Swing Arm (Full Moon)L.H. Swing Arm (Full Moon)
-
20371910400 CirclipCirclip
-
21572091300 CapCap
-
22570062200 Rubber DamperRubber Damper
-
23503146700 WasherWasher
-
24506115800 BowlBowl
-
25234181401 Lock Washer 8 mmLock Washer 8 mm
-
26205082544 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
27414916600 Nylon PlugNylon Plug
-
28505070644 Front ShockFront Shock
-
29505070698 Shock SpringShock Spring
-
30503165100 Spring GuideSpring Guide
-
31503140600 Spring StopperSpring Stopper
-
32207006044 Hex. Screw M10 x 60Hex. Screw M10 x 60
-
33207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
34233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
35505070705 Arm Ass'yArm Ass'y
-
36207025044 Hex. Screw M12 x 50Hex. Screw M12 x 50
-
37232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
38230020044 Hex. Screw M12 x 100Hex. Screw M12 x 100
-
39517254900 Rear Link PlateRear Link Plate
-
40517254800 Front Link PlateFront Link Plate
-
41518306700 SupportSupport
-
42390909200 Rivet AvexRivet Avex
-
43390404900 Pop Rivet 1/4''Pop Rivet 1/4''
-
44408200700 Grease FittingGrease Fitting
-
45293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
46219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
47293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
