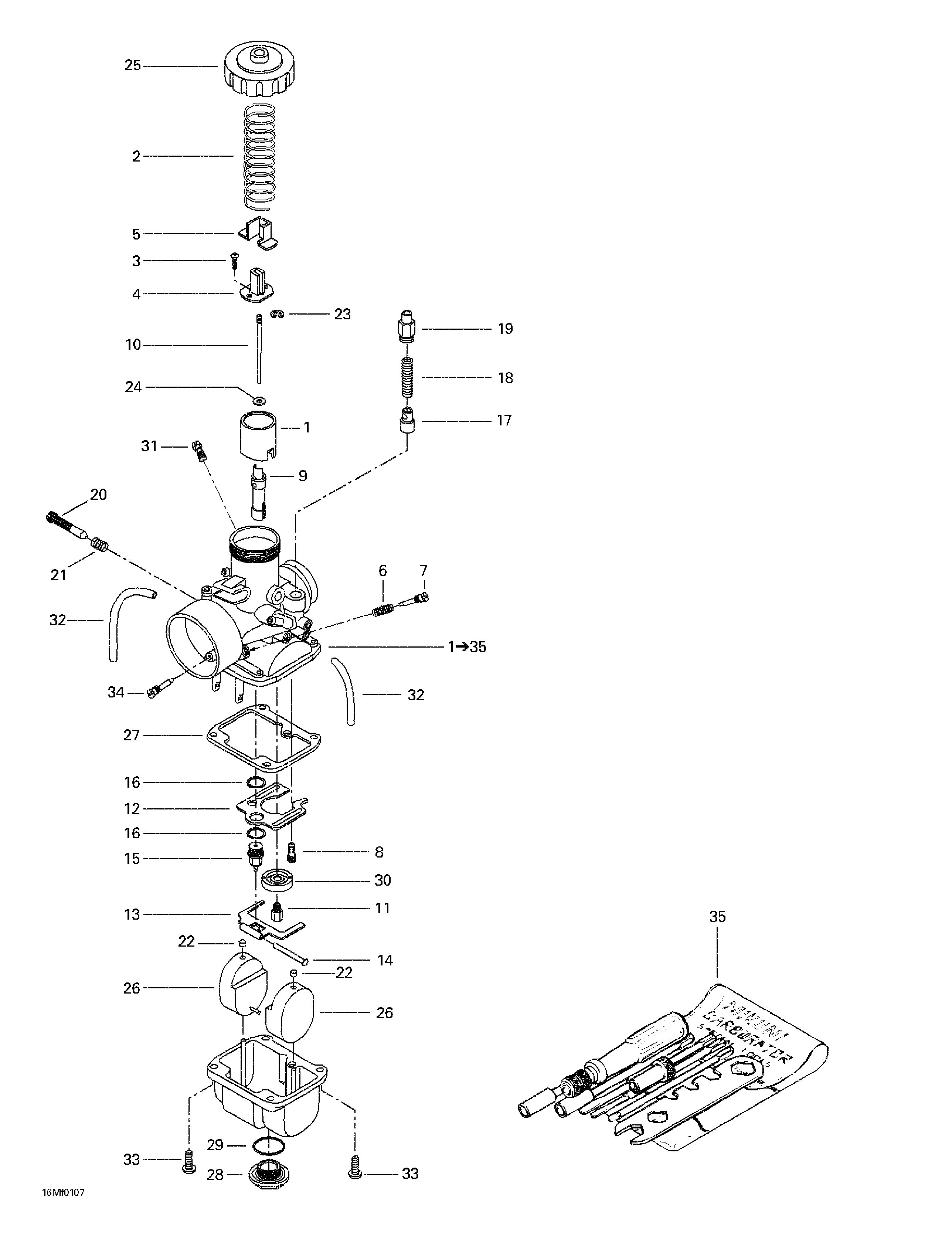

02- Carburetors для BRP Ski-Doo Summit 500 F - 2001
-
№АртикулНазвание
-
1403138654 Carburetor VM 34-565 (PTO). Includes 1 - 35.Carburetor VM 34-565 (PTO). Includes 1 - 35.
-
403138655 Carburetor VM 34-566 (MAG)Carburetor VM 34-566 (MAG)
-
1404128400 Piston Valve CA 2.5Piston Valve CA 2.5
-
2404154800 SpringSpring
-
3404121300 Screw with WasherScrew with Washer
-
4404161948 PackingPacking
-
5404122100 CoverCover
-
6404139800 Spring (Air Screw)Spring (Air Screw)
-
7404149000 Air ScrewAir Screw
-
8404161973 Pilot Jet (PJ 70)Pilot Jet (PJ 70)
-
9404100700 Needle Jet (NJ P-2 159)Needle Jet (NJ P-2 159)
-
10404110400 Jet Needle (JN 6DH2-4)Jet Needle (JN 6DH2-4)
-
11404112300 Main Jet (MJ 200) (PTO)Main Jet (MJ 200) (PTO)
-
404119000 Main Jet, MJ 190 (MAG)Main Jet, MJ 190 (MAG)
-
12404109600 BaffleBaffle
-
13404107600 Float LeverFloat Lever
-
14404103300 Lever PinLever Pin
-
15404103200 Needle Valve 1.5Needle Valve 1.5
-
16404101600 Seat WasherSeat Washer
-
17404161000 Plunger Ass'yPlunger Ass'y
-
18404127400 SpringSpring
-
19404161100 GuideGuide
-
20404125200 Throttle ScrewThrottle Screw
-
21404101700 Spring (Throttle Screw)Spring (Throttle Screw)
-
22404105800 CapCap
-
23404152400 E-RingE-Ring
-
24404117000 PackingPacking
-
25404103700 CoverCover
-
26404107100 FloatFloat
-
27404104200 GasketGasket
-
28404107400 Drain Plug ScrewDrain Plug Screw
-
29404107300 O-RingO-Ring
-
30404110900 Baffle RingBaffle Ring
-
31404153400 NippleNipple
-
32404161880 Air Vent TubeAir Vent Tube
-
33404102000 Screw and Lock WasherScrew and Lock Washer
-
34404131700 Plug ScrewPlug Screw
-
35404112000 Tool KitTool Kit
