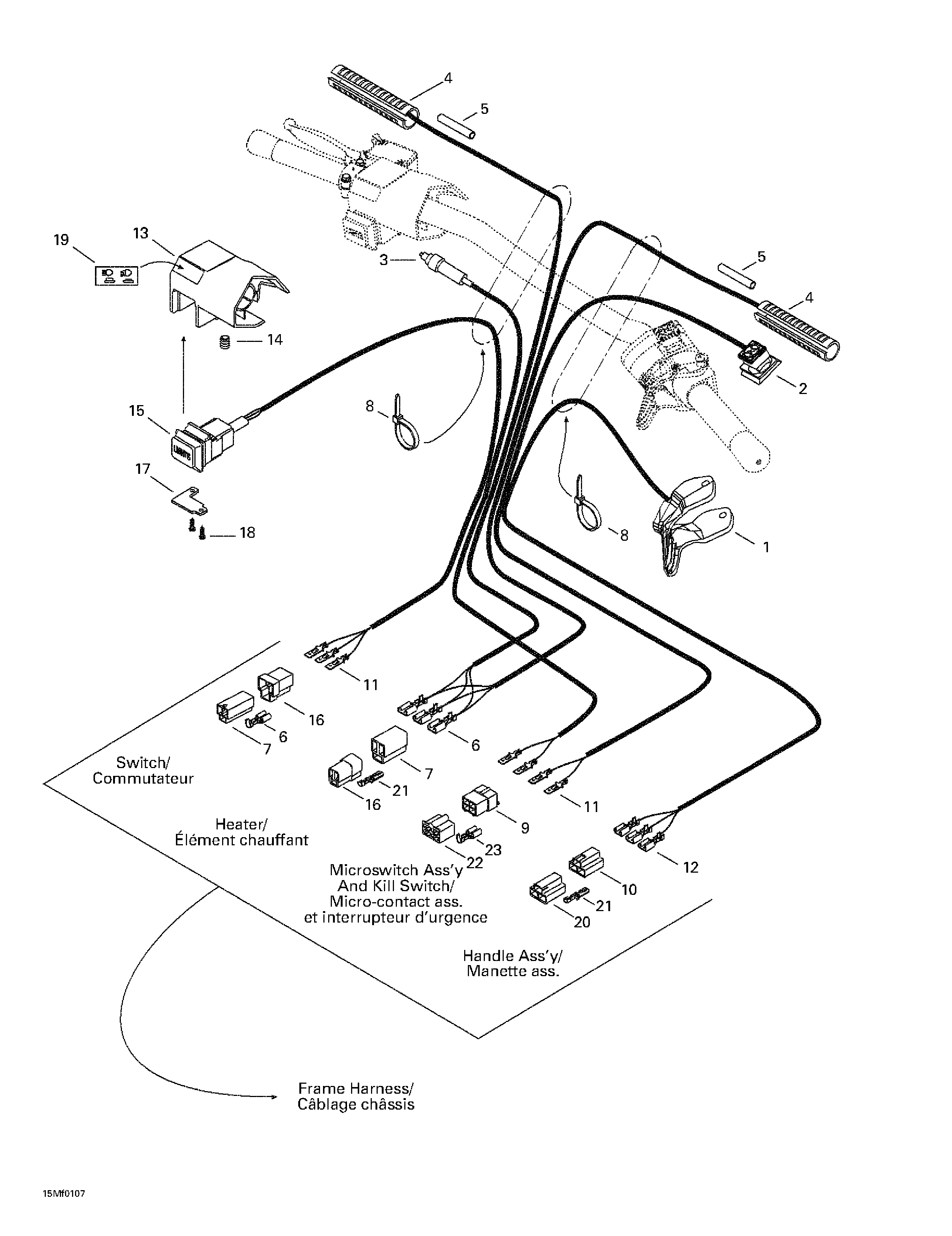

07- Steering System для BRP Ski-Doo Summit 500 F - 2001
-
№АртикулНазвание
-
1512059144 Heat Throttle Handle (34 mm)Heat Throttle Handle (34 mm)
-
2512059146 Kill SwitchKill Switch
-
3507032284 Microswitch Ass'yMicroswitch Ass'y
-
4515175573 Heating ElementHeating Element
-
5515175332 Low Temperature Tubing 1/4''Low Temperature Tubing 1/4''
-
6561503100 Female TerminalFemale Terminal
-
7409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
8414115200 Tie Rap 180 mmTie Rap 180 mm
-
9409209300 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
10409008500 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
11409210000 Male TerminalMale Terminal
-
12515175253 Female TerminalFemale Terminal
-
13572079500 Dimmer HousingDimmer Housing
-
14414440800 Set Screw M8 x 10Set Screw M8 x 10
-
15515175371 Light SwitchLight Switch
-
16409204200 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
17517283800 BracketBracket
-
18414473200 Phillips ScrewPhillips Screw
-
19415025500 Switch DecalSwitch Decal
-
20409008600 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
21409206100 Male TerminalMale Terminal
-
22409204900 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
23515175253 Female TerminalFemale Terminal
