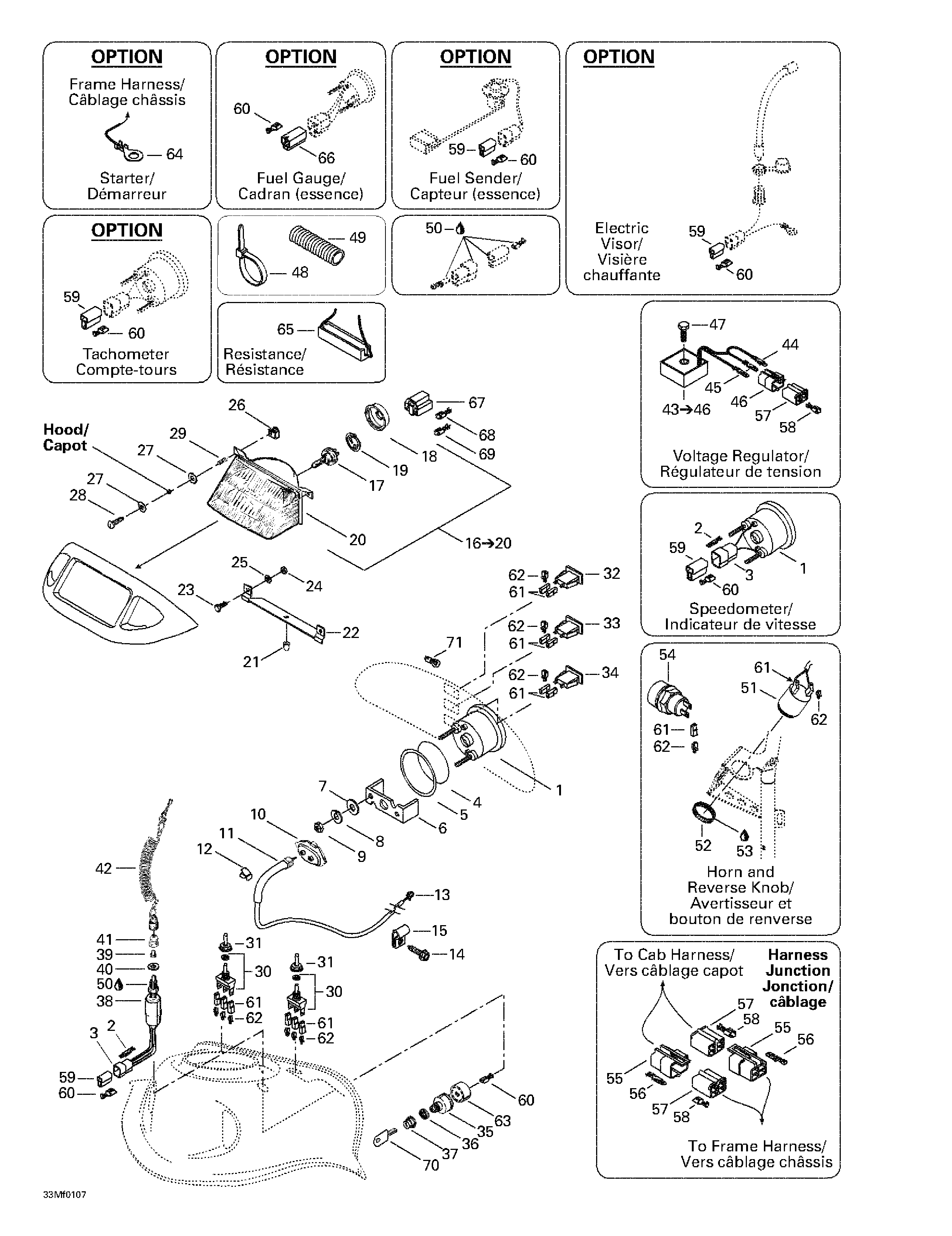

10- Electrical System для BRP Ski-Doo Summit 500 F - 2001
-
№АртикулНазвание
-
1515175335 Speedmeter (KMH)Speedmeter (KMH)
-
515175336 Speedmeter (MPH)Speedmeter (MPH)
-
2409210000 Male TerminalMale Terminal
-
3409204500 Male Terminal Housing (2 circuits)Male Terminal Housing (2 circuits)
-
4414807100 PackingPacking
-
5517258500 WasherWasher
-
6414806500 Case HolderCase Holder
-
7391301700 WasherWasher
-
8414806700 Lock WasherLock Washer
-
9414806900 NutNut
-
10515175400 Angle DriveAngle Drive
-
11414761400 Speedometer CableSpeedometer Cable
-
12414227300 ClipClip
-
13572010100 Speedo Drive InsertSpeedo Drive Insert
-
14365901100 Hex. Tapping ScrewHex. Tapping Screw
-
15414176000 Clip (Cable)Clip (Cable)
-
16410609100 Headlamp Ass'y. Includes 16 - 20.Headlamp Ass'y. Includes 16 - 20.
-
17410503700 Halogen BulbHalogen Bulb
-
18410607100 CoverCover
-
19410608300 Bulb HolderBulb Holder
-
20410609300 HeadlampHeadlamp
-
21410608200 Rubber BumperRubber Bumper
-
22517218500 Lamp SupportLamp Support
-
23207151244 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
24232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
25391301700 WasherWasher
-
26572078600 Lamp NutLamp Nut
-
27234051410 Flat Washer 5 mmFlat Washer 5 mm
-
28243244040 Phillips Screw M4 x 40Phillips Screw M4 x 40
-
29517168600 SpringSpring
-
30410107300 Switch (Heating Grip)Switch (Heating Grip)
-
31515175281 Switch CoverSwitch Cover
-
32515175591 Pilot Lamp (Oil Level)Pilot Lamp (Oil Level)
-
33515175592 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
34410113400 Pilot Lamp (Reverse)Pilot Lamp (Reverse)
-
35410111200 Ignition SwitchIgnition Switch
-
36410112100 Face NutFace Nut
-
37570013700 Switch BootSwitch Boot
-
38515175571 Brake SwitchBrake Switch
-
39570151100 Plunger CapPlunger Cap
-
41515145900 Switch NutSwitch Nut
-
42515151500 Cap Ass'yCap Ass'y
-
43515163800 Voltage Regulator. Includes 43 - 46.Voltage Regulator. Includes 43 - 46.
-
46409209300 Male Terminal Housing (4 circuits)Male Terminal Housing (4 circuits)
-
47210263580 Hex. Forming Screw M6 x 35Hex. Forming Screw M6 x 35
-
48293750001 Tie Rap (94 mm)Tie Rap (94 mm)
-
293750002 Locking Tie 142 mmLocking Tie 142 mm
-
293750008 Tie Rap (350 mm)Tie Rap (350 mm)
-
414115200 Tie RapTie Rap
-
515175220 Tie RapTie Rap
-
49415079900 TubingTubing
-
409901700 Tubing (9 mm)Tubing (9 mm)
-
409902100 Tubing (6 mm)Tubing (6 mm)
-
409901800 Tubing (13 mm)Tubing (13 mm)
-
50293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
51415060900 HornHorn
-
52414805101 Plastic NutPlastic Nut
-
53296000309 Sealant Silicone, Clear. 300 mlSealant Silicone, Clear. 300 ml
-
54415101200 Reverse KnobReverse Knob
-
55409209300 Male Terminal Housing (4 circuits)Male Terminal Housing (4 circuits)
-
56409206100 Male TerminalMale Terminal
-
57409204900 Female Terminal Housing (4 circuits)Female Terminal Housing (4 circuits)
-
58515175253 Female TerminalFemale Terminal
-
59409204600 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
60561503100 Female TerminalFemale Terminal
-
61409010400 Female Terminal Housing (1 circuits)Female Terminal Housing (1 circuits)
-
62409010100 Female TerminalFemale Terminal
-
63572150700 Ignition Switch BlockIgnition Switch Block
-
64409012500 Terminal RingTerminal Ring
-
65515175241 Resistance (50 ohms)Resistance (50 ohms)
-
66409204300 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
67409202700 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
68515175320 Female TerminalFemale Terminal
-
69409011500 Female TerminalFemale Terminal
-
70414991700 Blank Key (Plastic)Blank Key (Plastic)
-
71410504200 Instrumentation BulbInstrumentation Bulb
-
72515175362 Frame Harness (Not Shown)Frame Harness (Not Shown)
-
73515175359 Hood Harness (Not Shown)Hood Harness (Not Shown)
