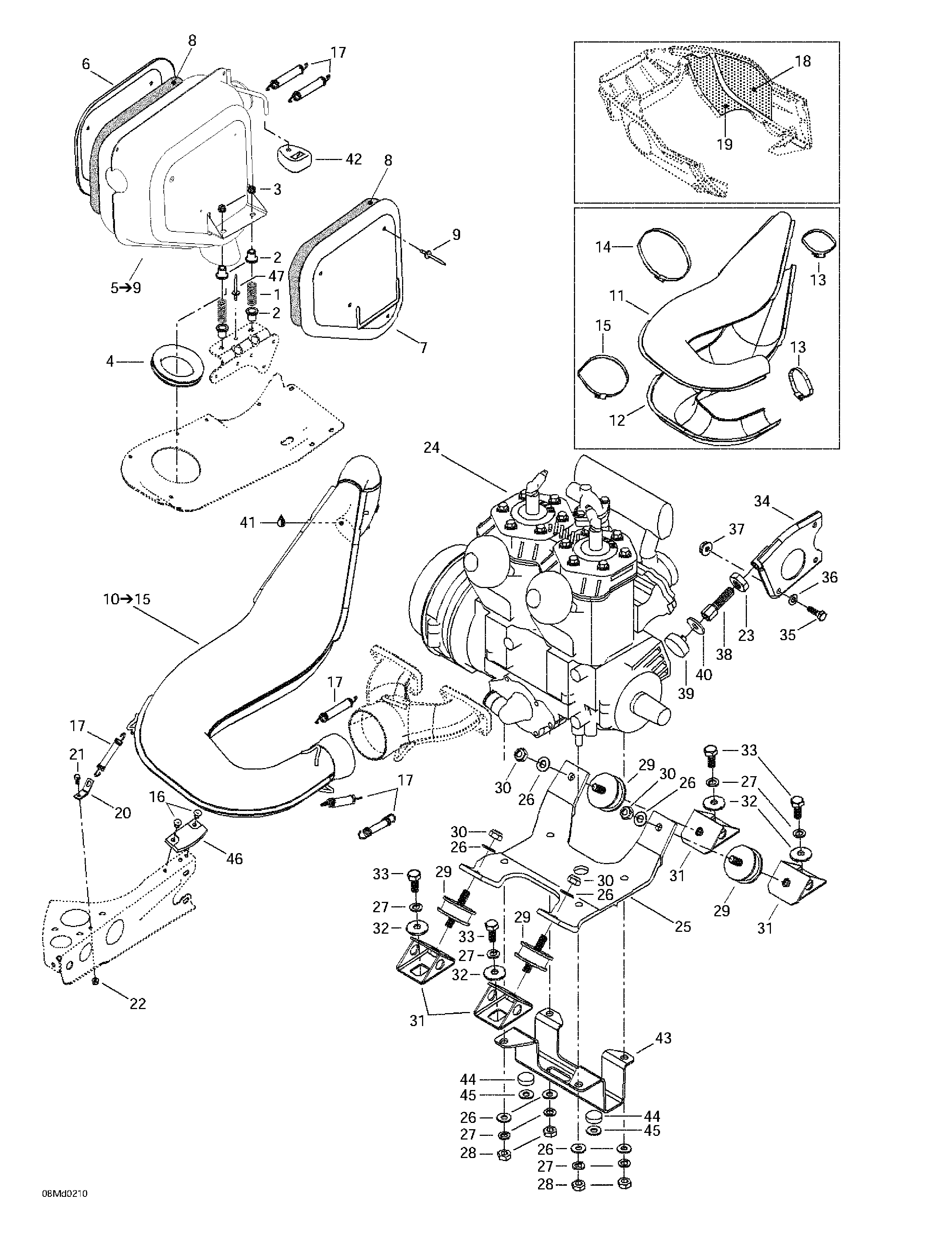

01- Engine Support And Muffler для BRP Ski-Doo MX Z X 440 - 2002
-
№АртикулНазвание
-
1414913700 SpringSpring
-
2514053343 GuideGuide
-
3233081416 Hex. Flanged NutHex. Flanged Nut
-
4570039000 Exhaust GrommetExhaust Grommet
-
5514053349 Muffler Ass'y. Includes 5 - 9.Muffler Ass'y. Includes 5 - 9.
-
6514051700 R.H. Heat ShieldR.H. Heat Shield
-
7514052960 L.H. Heat ShieldL.H. Heat Shield
-
8514051900 Insulating Wool R.HInsulating Wool R.H
-
514052961 Insulating Wool L.HInsulating Wool L.H
-
9390910000 Pop Rivet 3/16Pop Rivet 3/16
-
10514053419 Tuned Pipe Ass'y. Includes 10 - 15.Tuned Pipe Ass'y. Includes 10 - 15.
-
11514052938 Upper EnvelopeUpper Envelope
-
12514053422 Lower EnvelopeLower Envelope
-
13514052860 Norma Gear ClampNorma Gear Clamp
-
14514052861 Norma Gear ClampNorma Gear Clamp
-
15514052983 Norma Gear ClampNorma Gear Clamp
-
16390406500 Pop RivetPop Rivet
-
17415107100 SpringSpring
-
18514052718 Reflective SheetReflective Sheet
-
19514052719 Reflective SheetReflective Sheet
-
20514053436 Spring BracketSpring Bracket
-
21207151244 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
22233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
23732610019 R.H. Jam Nut M12R.H. Jam Nut M12
-
24400409425 > Engine> Engine
-
25512059064 Socle de moteurSocle de moteur
-
26234001410 Flat Washer 10 mmFlat Washer 10 mm
-
27234100602 Lock Washer 10 mmLock Washer 10 mm
-
28232006414 Nut M10Nut M10
-
29570128700 Rubber MountRubber Mount
-
30233601416 Elastic Stop Nut M10Elastic Stop Nut M10
-
31512050900 Engine SupportEngine Support
-
32512056700 Lock WasherLock Washer
-
33207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
34512058500 Support PlateSupport Plate
-
35207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
36234081410 Flat Washer 8 mmFlat Washer 8 mm
-
37232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
38512058800 Stopper ScrewStopper Screw
-
39512059056 StopperStopper
-
40512059057 WasherWasher
-
41413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
42514052704 Rubber BumperRubber Bumper
-
43512059242 Engine Support ExtensionEngine Support Extension
-
44512059055 StopperStopper
-
45512059058 WasherWasher
-
46570044100 Rubber PadRubber Pad
-
47390402200 Pop Rivet 3/16''Pop Rivet 3/16''
