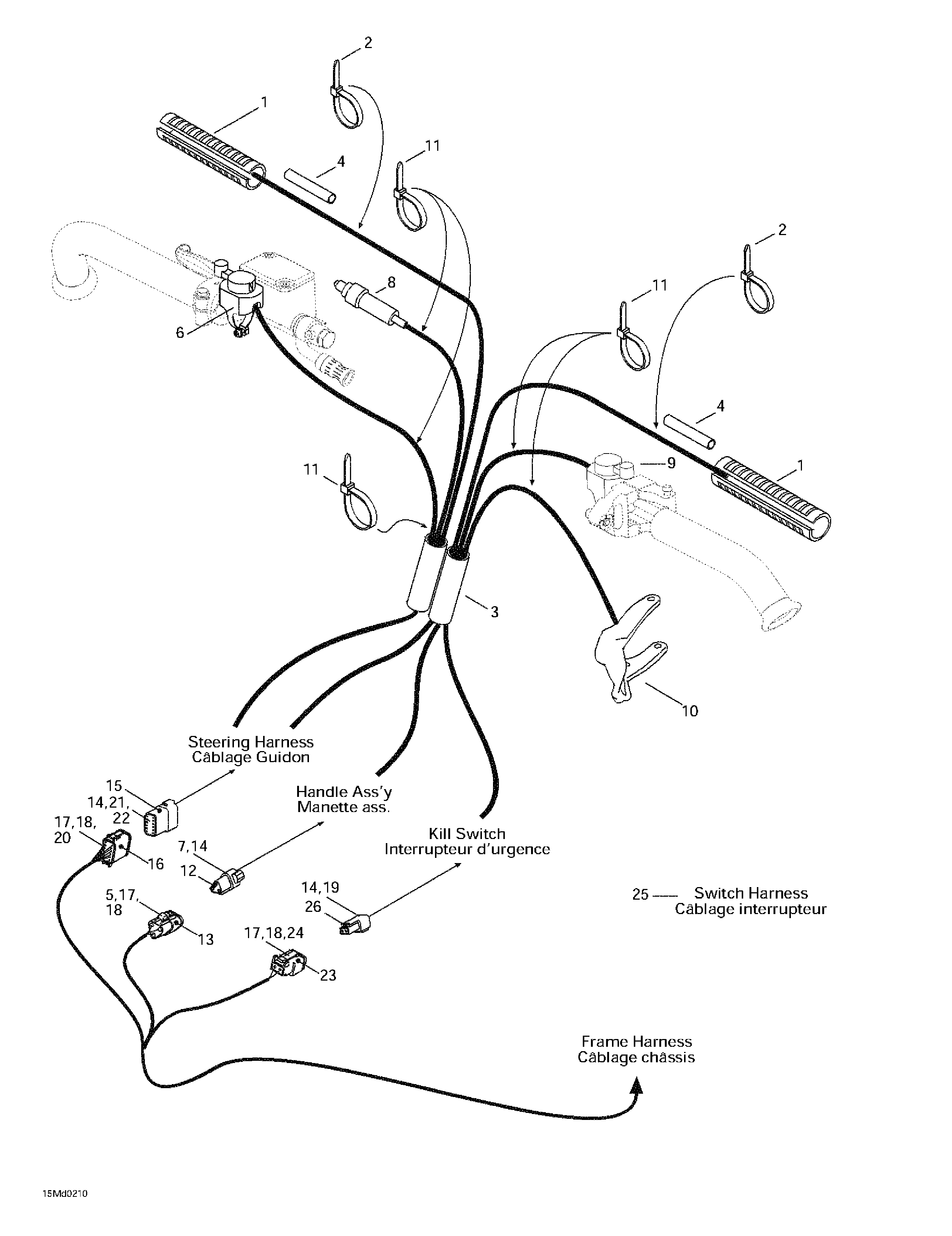

07- Steering System для BRP Ski-Doo MX Z X 440 - 2002
-
№АртикулНазвание
-
1515175664 HeaterHeater
-
2293750001 Tie Rap 94 mmTie Rap 94 mm
-
3515175314 Low Temp. Tubing (Vinyl)Low Temp. Tubing (Vinyl)
-
4515175332 Low Temp. Tubing (Vinyl)Low Temp. Tubing (Vinyl)
-
5409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
6515175684 Dimmer SwitchDimmer Switch
-
7409207500 Male LockMale Lock
-
9515175685 Kill SwitchKill Switch
-
10512059152 Heated Handle Ass'y (34 mm)Heated Handle Ass'y (34 mm)
-
11414115200 Tie Rap 180 mmTie Rap 180 mm
-
12515175666 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
13409207400 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
14278000631 Male TerminalMale Terminal
-
15515175669 Male Terminal Housing (12 Circuits)Male Terminal Housing (12 Circuits)
-
16515175704 Female Terminal Housing (12 Circuits)Female Terminal Housing (12 Circuits)
-
17278000632 Female TerminalFemale Terminal
-
18278001276 Female TerminalFemale Terminal
-
19409207500 Male LockMale Lock
-
20515175679 Female LockFemale Lock
-
21293000052 PlugPlug
-
22409015600 Male LockMale Lock
-
23278000739 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
24278000738 Female LockFemale Lock
-
25515175765 Switch Harness Ass'ySwitch Harness Ass'y
-
26515175665 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
