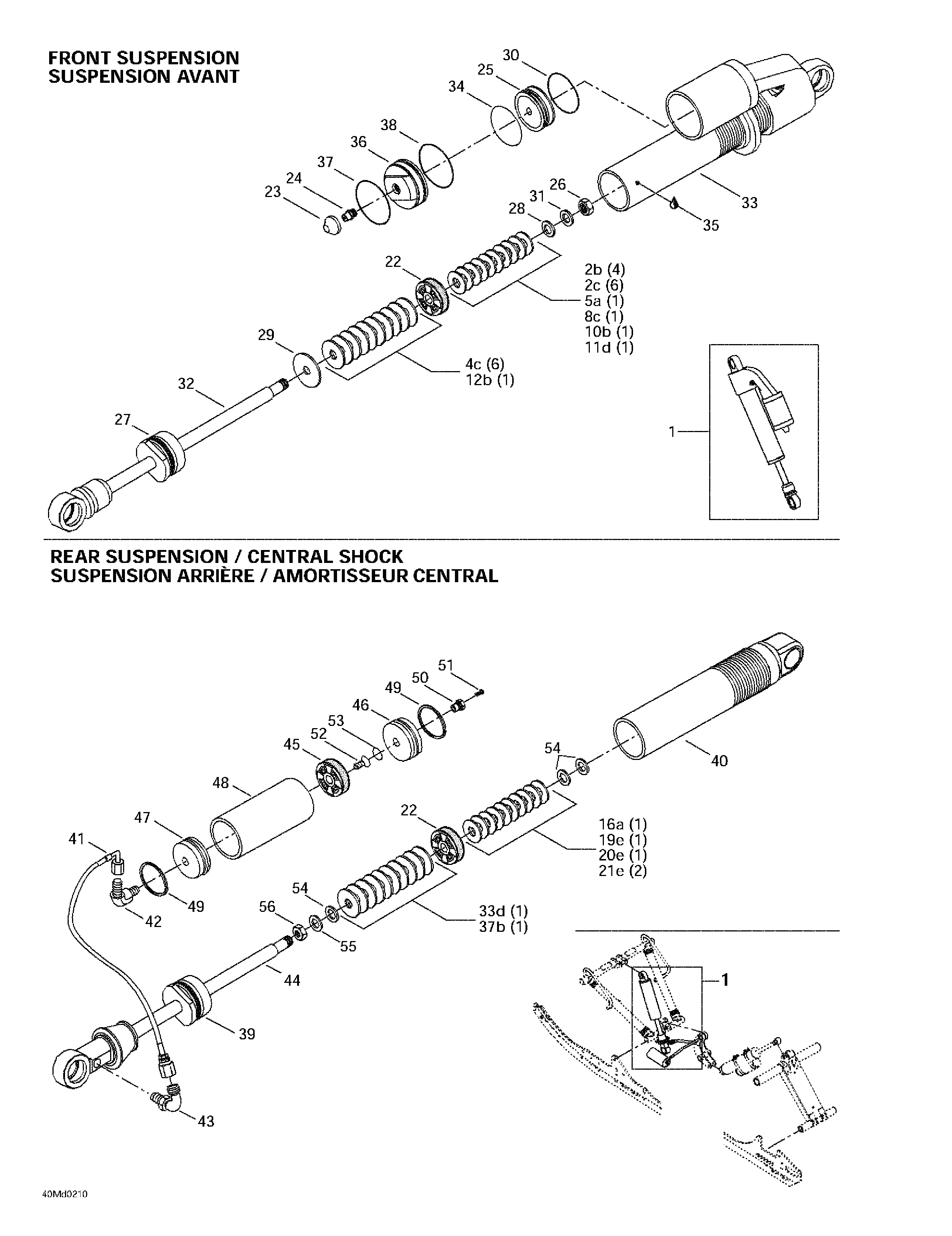

07- Front Take Apart Shocks для BRP Ski-Doo MX Z X 440 - 2002
-
№АртикулНазвание
-
1505070796 Take Apart Shock. MX Z X 440. (Front Suspension)Take Apart Shock. MX Z X 440. (Front Suspension)
-
503189779 Take Apart Shock. . (Rear Suspension - Central Shock)Take Apart Shock. . (Rear Suspension - Central Shock)
-
2a415039100 Leaf Valve O30 x 0.254 (mm). MX Z X 440.Leaf Valve O30 x 0.254 (mm). MX Z X 440.
-
2b414888318 Leaf Valve O30 x 0.203 (mm). MX Z X 440.Leaf Valve O30 x 0.203 (mm). MX Z X 440.
-
2c414888319 Leaf Valve O30 x 0.152 (mm). MX Z X 440.Leaf Valve O30 x 0.152 (mm). MX Z X 440.
-
3a414888320 Leaf Valve O28 x 0.203 (mm). MX Z X 440.Leaf Valve O28 x 0.203 (mm). MX Z X 440.
-
3b414888321 Leaf Valve O28 x 0.152 (mm). MX Z X 440.Leaf Valve O28 x 0.152 (mm). MX Z X 440.
-
4a415039000 Leaf Valve O26 x 0.254 (mm). MX Z X 440.Leaf Valve O26 x 0.254 (mm). MX Z X 440.
-
4b414888322 Leaf Valve O26 x 0.203 (mm). MX Z X 440.Leaf Valve O26 x 0.203 (mm). MX Z X 440.
-
4c414888323 Leaf Valve O26 x 0.152 (mm). MX Z X 440.Leaf Valve O26 x 0.152 (mm). MX Z X 440.
-
5a414888341 Leaf Valve O24 x 0.114 (mm). MX Z X 440.Leaf Valve O24 x 0.114 (mm). MX Z X 440.
-
6a414888324 Leaf Valve O22 x 0.203 (mm). MX Z X 440.Leaf Valve O22 x 0.203 (mm). MX Z X 440.
-
6b414888325 Leaf Valve O22 x 0.152 (mm). MX Z X 440.Leaf Valve O22 x 0.152 (mm). MX Z X 440.
-
7A414888340 Leaf Valve O21 x 0.114 (mm). MX Z X 440.Leaf Valve O21 x 0.114 (mm). MX Z X 440.
-
8a414888326 Leaf Valve O20 x 0.203 (mm). MX Z X 440.Leaf Valve O20 x 0.203 (mm). MX Z X 440.
-
8b414888327 Leaf Valve O20 x 0.152 (mm). MX Z X 440.Leaf Valve O20 x 0.152 (mm). MX Z X 440.
-
8c414888328 Leaf Valve O20 x 0.114 (mm). MX Z X 440.Leaf Valve O20 x 0.114 (mm). MX Z X 440.
-
10a414888329 Leaf Valve O18 x 0.203 (mm). MX Z X 440.Leaf Valve O18 x 0.203 (mm). MX Z X 440.
-
10b414888330 Leaf Valve O18 x 0.152 (mm). MX Z X 440.Leaf Valve O18 x 0.152 (mm). MX Z X 440.
-
11a414888331 Leaf Valve O16 x 0.254 (mm). MX Z X 440.Leaf Valve O16 x 0.254 (mm). MX Z X 440.
-
11b414888332 Leaf Valve O16 x 0.203 (mm). MX Z X 440.Leaf Valve O16 x 0.203 (mm). MX Z X 440.
-
11c414888333 Leaf Valve O16 x 0.152 (mm). MX Z X 440.Leaf Valve O16 x 0.152 (mm). MX Z X 440.
-
11d415093823 Leaf Valve O16 x 0.114 (mm). MX Z X 440.Leaf Valve O16 x 0.114 (mm). MX Z X 440.
-
12a414888334 Leaf Valve O15 x 0.254 (mm). MX Z X 440.Leaf Valve O15 x 0.254 (mm). MX Z X 440.
-
12b414888335 Leaf Valve O15 x 0.203 (mm). MX Z X 440.Leaf Valve O15 x 0.203 (mm). MX Z X 440.
-
12c414888336 Leaf Valve O15 x 0.152 (mm). MX Z X 440.Leaf Valve O15 x 0.152 (mm). MX Z X 440.
-
12d414888337 Leaf Valve O15 x 0.114 (mm). MX Z X 440.Leaf Valve O15 x 0.114 (mm). MX Z X 440.
-
13a415038900 Leaf Valve O16 x 0.114 (mm). MX Z X 440.Leaf Valve O16 x 0.114 (mm). MX Z X 440.
-
14a414888338 Leaf Valve O12 x 0.203 (mm). MX Z X 440.Leaf Valve O12 x 0.203 (mm). MX Z X 440.
-
14b414888339 Leaf Valve O12 x 0.152 (mm). MX Z X 440.Leaf Valve O12 x 0.152 (mm). MX Z X 440.
-
14c415038800 Leaf Valve O12 x 0.114 (mm). MX Z X 440.Leaf Valve O12 x 0.114 (mm). MX Z X 440.
-
14d415093824 Leaf Valve O12 x 0.114 (mm). MX Z X 440.Leaf Valve O12 x 0.114 (mm). MX Z X 440.
-
15a503190061 Leaf Valve O 0.700 x 0.004 (inches). .Leaf Valve O 0.700 x 0.004 (inches). .
-
15b503190062 Leaf Valve O 0.700 x 0.006 (inches). .Leaf Valve O 0.700 x 0.006 (inches). .
-
15c503190063 Leaf Valve O 0.700 x 0.008 (inches). .Leaf Valve O 0.700 x 0.008 (inches). .
-
15d503190064 Leaf Valve O 0.700 x 0.10 (inches). .Leaf Valve O 0.700 x 0.10 (inches). .
-
15e503190065 Leaf Valve O 0.700 x 0.12 (inches). .Leaf Valve O 0.700 x 0.12 (inches). .
-
15F503190066 Leaf Valve O 0.700 x 0.15 (inches). .Leaf Valve O 0.700 x 0.15 (inches). .
-
16a503190067 Leaf Valve O 0.800 x 0.004 (inches). .Leaf Valve O 0.800 x 0.004 (inches). .
-
16b503190068 Leaf Valve O 0.800 x 0.006 (inches). .Leaf Valve O 0.800 x 0.006 (inches). .
-
16c503190069 Leaf Valve O 0.800 x 0.008 (inches). .Leaf Valve O 0.800 x 0.008 (inches). .
-
16d503190070 Leaf Valve O 0.800 x 0.10 (inches). .Leaf Valve O 0.800 x 0.10 (inches). .
-
16e503190071 Leaf Valve O 0.800 x 0.12 (inches). .Leaf Valve O 0.800 x 0.12 (inches). .
-
16f503190072 Leaf Valve O 0.800 x 0.15 (inches). .Leaf Valve O 0.800 x 0.15 (inches). .
-
17a503190073 Leaf Valve O 0.900 x 0.004 (inches). .Leaf Valve O 0.900 x 0.004 (inches). .
-
17b503190074 Leaf Valve O 0.900 x 0.006 (inches). .Leaf Valve O 0.900 x 0.006 (inches). .
-
17c503190075 Leaf Valve O 0.900 x 0.008 (inches). .Leaf Valve O 0.900 x 0.008 (inches). .
-
17d503190076 Leaf Valve O 0.900 x 0.10 (inches). .Leaf Valve O 0.900 x 0.10 (inches). .
-
17E503190077 Leaf Valve O 0.900 x 0.12 (inches). .Leaf Valve O 0.900 x 0.12 (inches). .
-
17F503190078 Leaf Valve O 0.900 x 0.15 (inches). .Leaf Valve O 0.900 x 0.15 (inches). .
-
18a503190079 Leaf Valve O 1.00 x 0.006 (inches). .Leaf Valve O 1.00 x 0.006 (inches). .
-
18b503190080 Leaf Valve O 1.00 x 0.008 (inches). .Leaf Valve O 1.00 x 0.008 (inches). .
-
18c503190081 Leaf Valve O 1.00 x 0.10 (inches). .Leaf Valve O 1.00 x 0.10 (inches). .
-
18d503190082 Leaf Valve O 1.00 x 0.12 (inches). .Leaf Valve O 1.00 x 0.12 (inches). .
-
18e503190083 Leaf Valve O 1.00 x 0.15 (inches). .Leaf Valve O 1.00 x 0.15 (inches). .
-
19a503190084 Leaf Valve O 1.10 x 0.006 (inches). .Leaf Valve O 1.10 x 0.006 (inches). .
-
19b503190085 Leaf Valve O 1.10 x 0.008 (inches). .Leaf Valve O 1.10 x 0.008 (inches). .
-
19c503190086 Leaf Valve O 1.10 x 0.10 (inches). .Leaf Valve O 1.10 x 0.10 (inches). .
-
19d503190087 Leaf Valve O 1.10 x 0.12 (inches). .Leaf Valve O 1.10 x 0.12 (inches). .
-
19e503190088 Leaf Valve O 1.10 x 0.15 (inches). .Leaf Valve O 1.10 x 0.15 (inches). .
-
20a503190089 Leaf Valve O 1.25 x 0.006 (inches). .Leaf Valve O 1.25 x 0.006 (inches). .
-
20b503190090 Leaf Valve O 1.25 x 0.008 (inches). .Leaf Valve O 1.25 x 0.008 (inches). .
-
20c503190091 Leaf Valve O 1.25 x 0.10 (inches). .Leaf Valve O 1.25 x 0.10 (inches). .
-
20d503190092 Leaf Valve O 1.25 x 0.12 (inches). .Leaf Valve O 1.25 x 0.12 (inches). .
-
20e503190093 Leaf Valve O 1.25 x 0.15 (inches). .Leaf Valve O 1.25 x 0.15 (inches). .
-
21a503190094 Leaf Valve O 1.30 x 0.006 (inches). .Leaf Valve O 1.30 x 0.006 (inches). .
-
21b503190095 Leaf Valve O 1.30 x 0.008 (inches). .Leaf Valve O 1.30 x 0.008 (inches). .
-
21c503190096 Leaf Valve O 1.30 x 0.10 (inches). .Leaf Valve O 1.30 x 0.10 (inches). .
-
21d503190097 Leaf Valve O 1.30 x 0.12 (inches). .Leaf Valve O 1.30 x 0.12 (inches). .
-
21e503190098 Leaf Valve O 1.30 x 0.15 (inches). .Leaf Valve O 1.30 x 0.15 (inches). .
-
22503190100 Piston (O 0.063) (inches). .Piston (O 0.063) (inches). .
-
23503189307 Air Valve Cap. MX Z X 440.Air Valve Cap. MX Z X 440.
-
24414888314 Air Valve and Ring. MX Z X 440.Air Valve and Ring. MX Z X 440.
-
25505071016 Free Piston. MX Z X 440.Free Piston. MX Z X 440.
-
27505071017 Sealing Cap. MX Z X 440.Sealing Cap. MX Z X 440.
-
30415093807 O-Ring. MX Z X 440.O-Ring. MX Z X 440.
-
34415093806 Piston Ring. MX Z X 440.Piston Ring. MX Z X 440.
-
35293600035 Shock Oil. MX Z X 440.Shock Oil. MX Z X 440.
-
36415093808 Guide. MX Z X 440.Guide. MX Z X 440.
-
37415093804 O-Ring. MX Z X 440.O-Ring. MX Z X 440.
-
38415093805 Stop Ring. MX Z X 440.Stop Ring. MX Z X 440.
-
39503190104 Piston Rod Ass'y. .Piston Rod Ass'y. .
-
40503190043 Cap Ass'y. .Cap Ass'y. .
-
41503190044 Hose Ass'y. .Hose Ass'y. .
-
42503190045 90 Degres Elbow. .90 Degres Elbow. .
-
43503190046 45 Degres Elbow. .45 Degres Elbow. .
-
44503189998 Spring Stopper. .Spring Stopper. .
-
45503190047 Piston Ass'y. .Piston Ass'y. .
-
46503190048 Cap Ass'y. .Cap Ass'y. .
-
47503190049 End Cap. .End Cap. .
-
48503190050 Reservoir. .Reservoir. .
-
49503190051 Circlip. .Circlip. .
-
50503190057 Pressure Valve Ass'y. .Pressure Valve Ass'y. .
-
51503190054 Cap Screw. .Cap Screw. .
-
52503190052 Purge Screw. .Purge Screw. .
-
53503190053 O-Ring. .O-Ring. .
-
54503190059 Washer. .Washer. .
-
55503190060 Washer 5/8. .Washer 5/8. .
-
56503190058 Locking Nut. .Locking Nut. .
