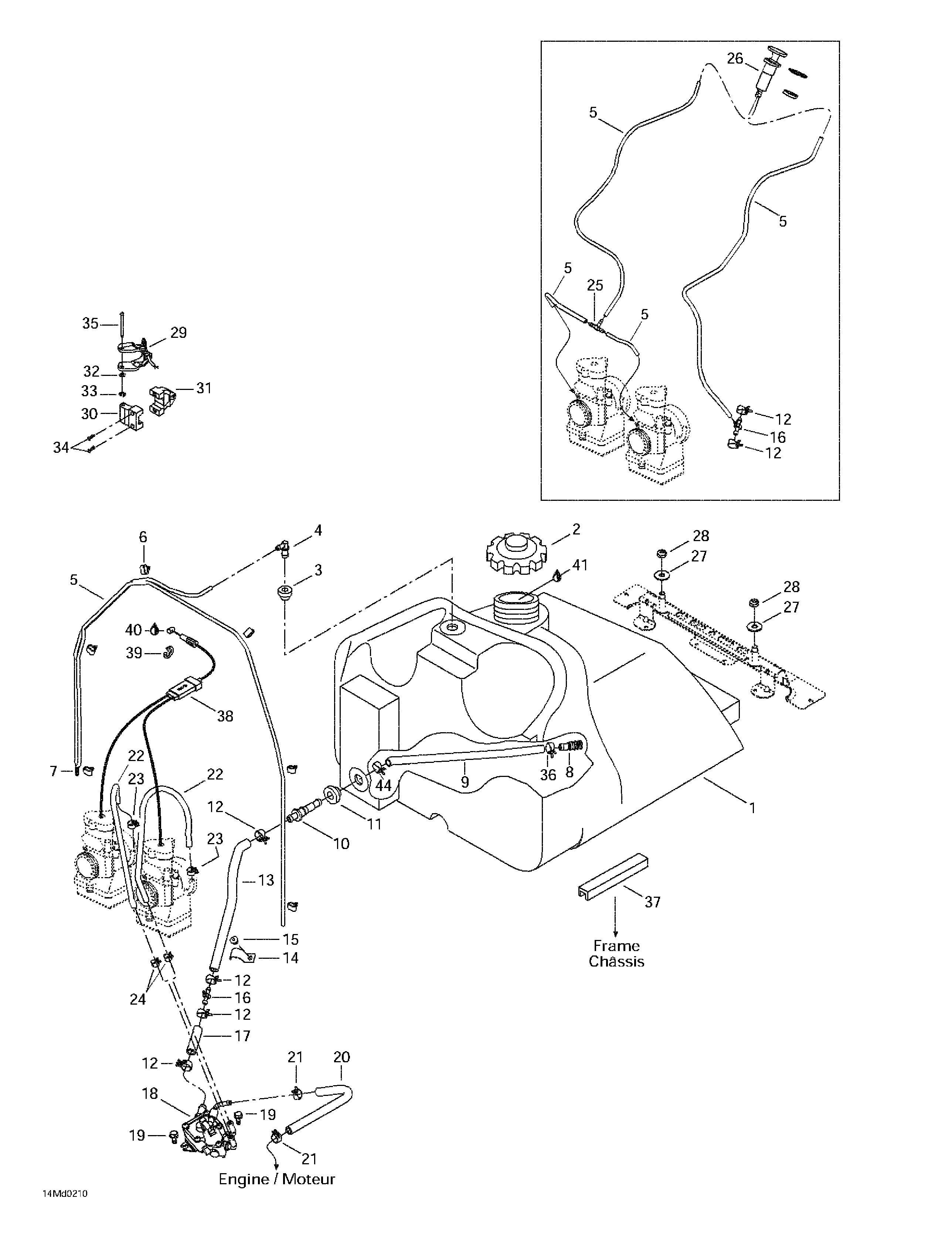

02- Fuel System для BRP Ski-Doo MX Z X 440 - 2002
-
№АртикулНазвание
-
1861301500 Fuel TankFuel Tank
-
2513033023 Fuel Tank CapFuel Tank Cap
-
3513032908 GrommetGrommet
-
4414814100 Male ConnectorMale Connector
-
5415080100 Primer LinePrimer Line
-
6513032923 Tube ClampTube Clamp
-
7414818200 RessortRessort
-
8414872100 Fuel FilterFuel Filter
-
9415005700 HoseHose
-
10414872700 Male ConnectorMale Connector
-
11570273900 GrommetGrommet
-
12513032979 Spring ClampSpring Clamp
-
13513032956 Formed HoseFormed Hose
-
14415018200 ClipClip
-
15390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
16415119300 T FittingT Fitting
-
17513032957 Formed HoseFormed Hose
-
18403901805 Fuel pumpFuel pump
-
19210361280 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
20415079800 Rubber HoseRubber Hose
-
21414415200 Spring ClampSpring Clamp
-
22415080200 Formed HoseFormed Hose
-
23414554800 Spring ClampSpring Clamp
-
24414420700 Spring ClampSpring Clamp
-
25414222400 T FittingT Fitting
-
26415060500 PrimerPrimer
-
27234082410 Flat Washer 8 mmFlat Washer 8 mm
-
28232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
29512059152 Handle Ass'y 34 mm (Heated)Handle Ass'y 34 mm (Heated)
-
30512059537 Lower Throttle Handle HousingLower Throttle Handle Housing
-
31512059538 Upper Throttle Handle HousingUpper Throttle Handle Housing
-
32414438900 WasherWasher
-
33414439000 CirclipCirclip
-
34205052544 Socket Head ScrewSocket Head Screw
-
35414438700 Lever PinLever Pin
-
36513033010 Cobra ClampCobra Clamp
-
37414506600 TrimTrim
-
38512058901 Throttle CableThrottle Cable
-
39414274500 CirclipCirclip
-
40293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
41413803100 Blizzard Oil (12 x 500 ml)Blizzard Oil (12 x 500 ml)
-
413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liter)Injection Oil (3 x 4 Liter)
-
413803200 Injection Oil (205 Liter)Injection Oil (205 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liter)Synthetic Injection Oil (3 x 4 Liter)
-
413710700 Synthetic Injection Oil (205 Liter)Synthetic Injection Oil (205 Liter)
-
413710500 Synthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-SSynthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-S
