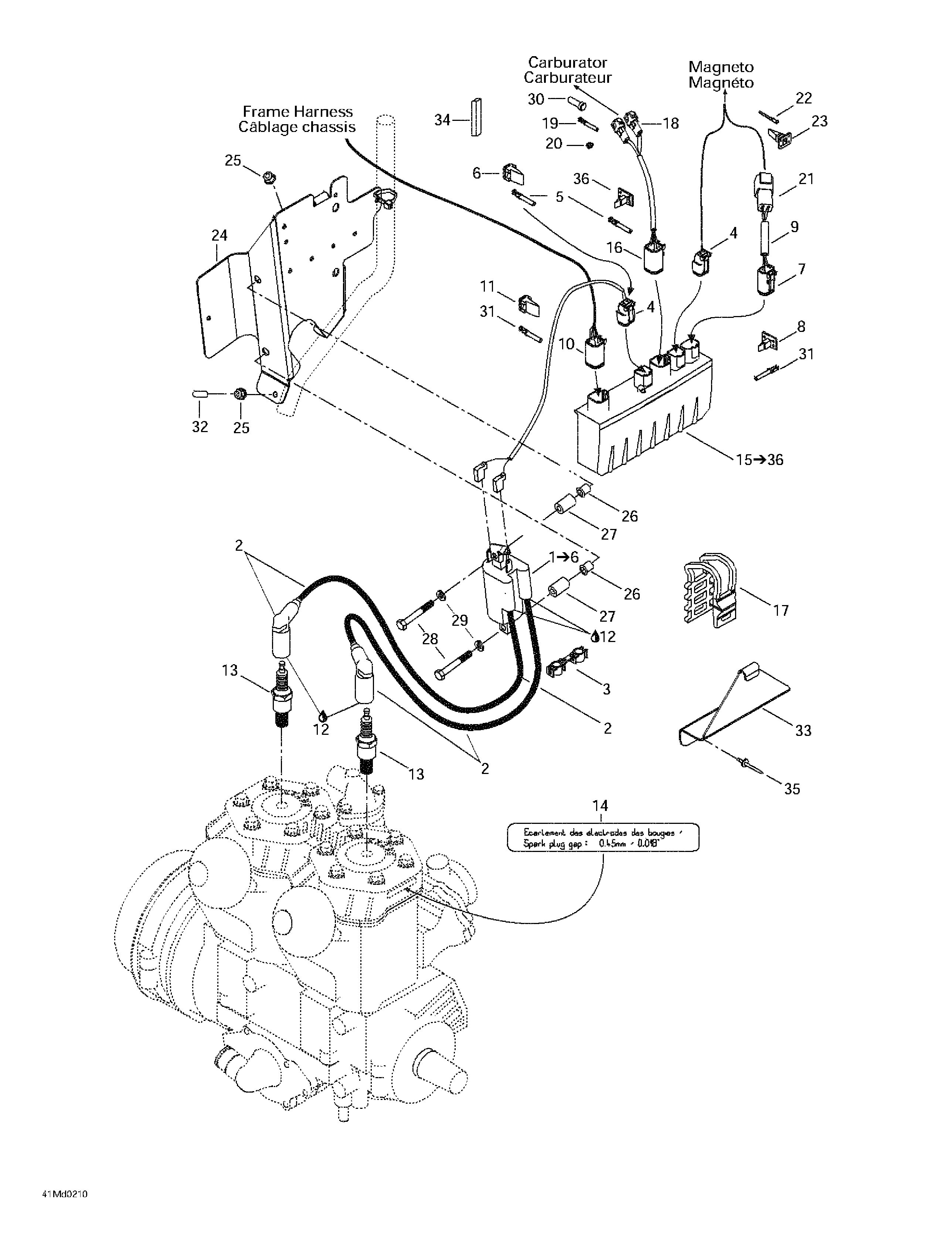

03- Ignition для BRP Ski-Doo MX Z X 440 - 2002
-
№АртикулНазвание
-
1512059564 Ignition Coil. Includes 1 - 6.Ignition Coil. Includes 1 - 6.
-
2512059499 Cable Ass'y 515 mmCable Ass'y 515 mm
-
512059500 Cable Ass'y 595 mmCable Ass'y 595 mm
-
3410914600 Clip (Package of 5)Clip (Package of 5)
-
4409207300 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
5278000632 Female TerminalFemale Terminal
-
6409207100 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
7278001739 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
8278000738 Female LockFemale Lock
-
9515175442 Tubing 6 mmTubing 6 mm
-
10278000736 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
11515175705 Female Lock (6 Circuits)Female Lock (6 Circuits)
-
12293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
13414961100 Spark Plug (NGK BR9ES)Spark Plug (NGK BR9ES)
-
14516000986 Spark Plug DecalSpark Plug Decal
-
15512059476 Calibration Module. Includes 15 - 36.Calibration Module. Includes 15 - 36.
-
16515175673 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
17570069700 LatchLatch
-
18409209200 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
19409012100 Female TerminalFemale Terminal
-
20409012300 SealSeal
-
21710000045 Male Terminal HousingMale Terminal Housing
-
22409014800 Male TerminalMale Terminal
-
23710000046 Male LockMale Lock
-
24518322927 Electronic Module SupportElectronic Module Support
-
25233261414 Elastic Flanged Stop NutElastic Flanged Stop Nut
-
26415107300 InsertInsert
-
27517203200 SpacerSpacer
-
28207064544 Hex. Screw M6 x 45Hex. Screw M6 x 45
-
29234161471 Lock Washer 6 mmLock Washer 6 mm
-
30293000052 Sealing CapSealing Cap
-
31278000632 Female TerminalFemale Terminal
-
32293000025 Short CupShort Cup
-
33518322928 Attache PlateAttache Plate
-
34271000110 Protection TrimProtection Trim
-
35390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
36515175678 Female LockFemale Lock
