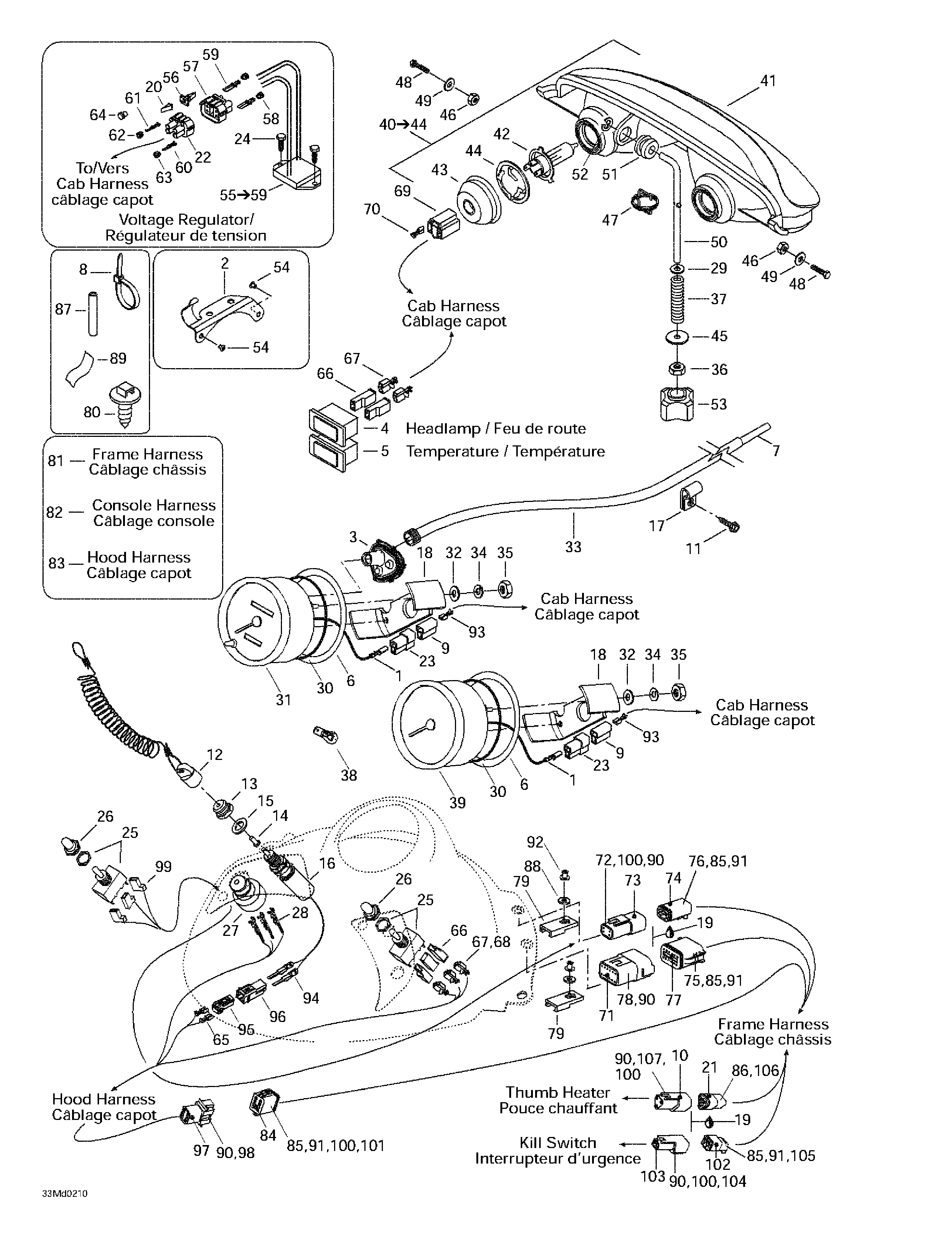

10- Electrical System для BRP Ski-Doo MX Z X 440 - 2002
-
№АртикулНазвание
-
1409210000 Male TerminalMale Terminal
-
2515175254 Cable SupportCable Support
-
3515175400 Drive AngleDrive Angle
-
4515175726 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
5515175727 Pilot Lamp (Temperature)Pilot Lamp (Temperature)
-
6517258500 WasherWasher
-
7415080100 LineLine
-
8293750002 Tie Rap 130 mmTie Rap 130 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
515175220 Tie RapTie Rap
-
293750001 Tie RapTie Rap
-
9409204600 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
10515175666 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
12515167900 Switch CapSwitch Cap
-
13415073500 Switch NutSwitch Nut
-
14570151100 Plunger CapPlunger Cap
-
15234001410 Flat Washer 10 mmFlat Washer 10 mm
-
16515175653 Switch BrakeSwitch Brake
-
17414176000 ClipClip
-
18414806500 Case HolderCase Holder
-
19293550004 Dielectric Grease, 3 ozDielectric Grease, 3 oz
-
20409013100 Male Lock (4 Circuits)Male Lock (4 Circuits)
-
21409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
22409207700 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
23409204500 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
24210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
25410107300 Switch (Heating Grip)Switch (Heating Grip)
-
26515175281 Switch coverSwitch cover
-
27515175762 D.E.S.S. Switch. Includes 27 - 28.D.E.S.S. Switch. Includes 27 - 28.
-
28515175232 Male TerminalMale Terminal
-
29234061410 Flat Washer 6 mmFlat Washer 6 mm
-
30414807100 O-RingO-Ring
-
31515175335 Speedometer (KMH)Speedometer (KMH)
-
515175336 Speedometer (MH)Speedometer (MH)
-
32391301700 Flat WasherFlat Washer
-
33415101500 Speedometer CableSpeedometer Cable
-
34414806700 Lock WasherLock Washer
-
35414806900 NutNut
-
36232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
37415100600 SpringSpring
-
38410501000 Instrumentation BulbInstrumentation Bulb
-
39515175341 TachometerTachometer
-
40515175517 Headlamp Ass'y. Includes 40 - 44.Headlamp Ass'y. Includes 40 - 44.
-
42410504401 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
43410607100 Protector CapProtector Cap
-
44410608300 Bulb HolderBulb Holder
-
45224060251 WasherWasher
-
46250100018 Nut M8Nut M8
-
47515175324 Spring (Europe)Spring (Europe)
-
48207053544 Hex. Screw M5 x 35Hex. Screw M5 x 35
-
49234051410 Flat WasherFlat Washer
-
50517295800 Adjuster RodAdjuster Rod
-
51415100800 GrommetGrommet
-
52732610072 Push NutPush Nut
-
53515175548 HandleHandle
-
54390402200 Pop RivetPop Rivet
-
55515175491 Voltage Regulator. Includes 55 - 59.Voltage Regulator. Includes 55 - 59.
-
56409013400 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
57409208000 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
58278000996 SealSeal
-
59278000994 Female TerminalFemale Terminal
-
60409013000 Male TerminalMale Terminal
-
61409010900 Male TerminalMale Terminal
-
62409208300 SealSeal
-
63278000996 Seal (Orange)Seal (Orange)
-
64409013900 PlugPlug
-
65515175231 Female TerminalFemale Terminal
-
66409010400 Female Terminal Housing (1 Circuuits)Female Terminal Housing (1 Circuuits)
-
67409010100 Female TerminalFemale Terminal
-
68409010600 Female Terminal (Double)Female Terminal (Double)
-
69409202700 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
70515175320 Female TerminalFemale Terminal
-
71515175669 Male Terminal Housing (12 Circuits)Male Terminal Housing (12 Circuits)
-
72278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
73515175667 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
74278000739 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
75515175679 Female LockFemale Lock
-
76278000738 Female LockFemale Lock
-
77515175704 Female Terminal Housing (12 Circuits)Female Terminal Housing (12 Circuits)
-
78409015600 Female LockFemale Lock
-
79270000141 ClipClip
-
80293730018 DartDart
-
81515175763 Frame HarnessFrame Harness
-
82515175764 Console HarnessConsole Harness
-
83515175463 Hood HarnessHood Harness
-
84278000743 Female Terminal Housing (8 Circuits)Female Terminal Housing (8 Circuits)
-
85278000632 Female TerminalFemale Terminal
-
86409205300 Female TerminalFemale Terminal
-
87415079900 Tubing (10 mm)Tubing (10 mm)
-
409901800 Tubing (13 mm)Tubing (13 mm)
-
415080000 Tubing (16 mm)Tubing (16 mm)
-
515175314 TubingTubing
-
88517225900 Flat WasherFlat Washer
-
89293740005 Vinyl Adhesif TapeVinyl Adhesif Tape
-
90278000631 Male TerminalMale Terminal
-
91278001276 Female TerminalFemale Terminal
-
92390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
93561503100 Female TerminalFemale Terminal
-
94515175232 Male TerminalMale Terminal
-
95515175654 Female Terminal HousingFemale Terminal Housing
-
96515175658 Female Terminal Housing (8 Circuits)Female Terminal Housing (8 Circuits)
-
97278001742 Male Terminal Housing (8 Circuits)Male Terminal Housing (8 Circuits)
-
98515175276 Male LockMale Lock
-
99409010300 Female TerminalFemale Terminal
-
100293000052 PlugPlug
-
101278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
102409207300 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
103409206900 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
104409207500 Male LockMale Lock
-
105409207100 Female LockFemale Lock
-
106409203300 Female TerminalFemale Terminal
-
107409207600 Male LockMale Lock
