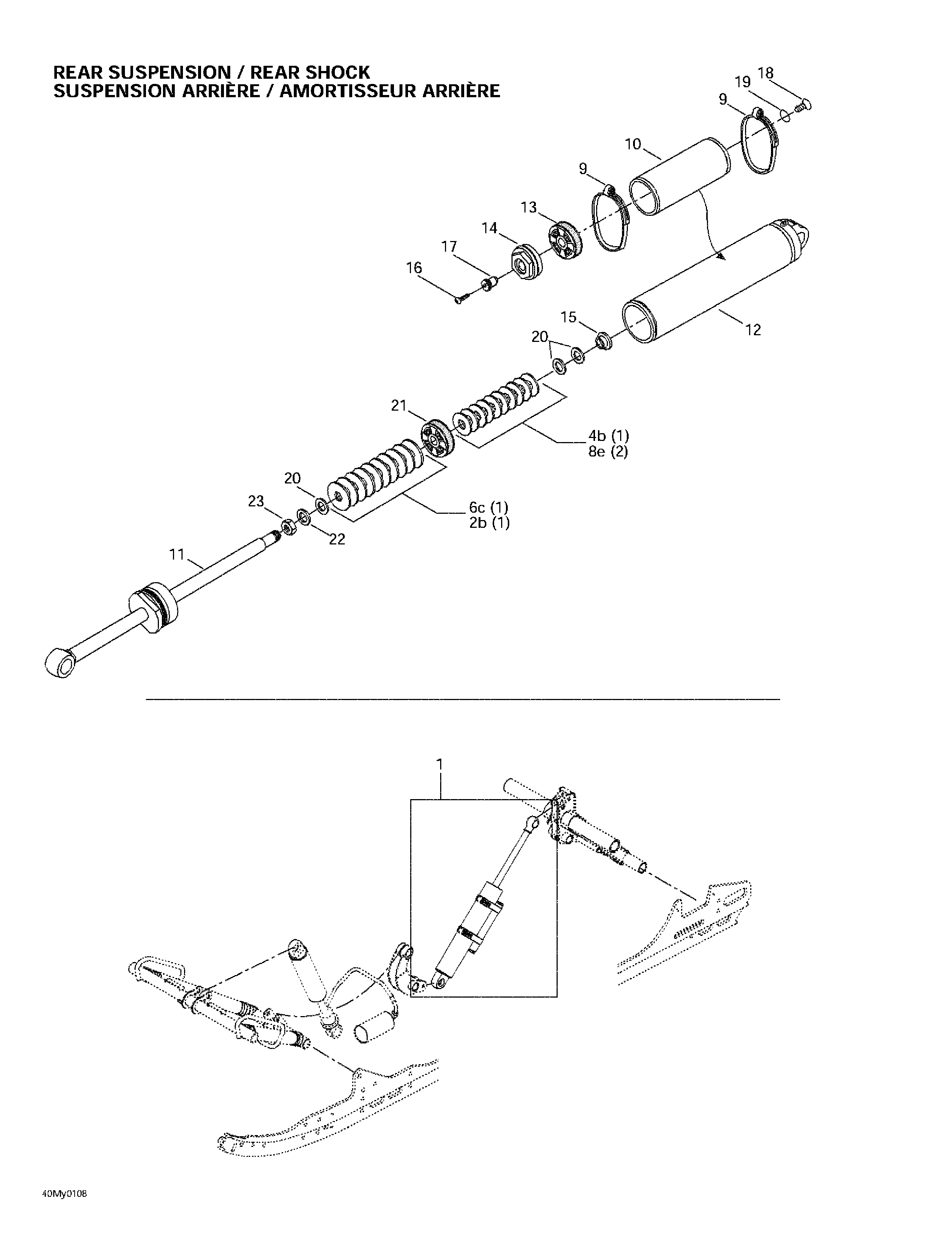

08- Rear Take Apart Shocks 2 для BRP Ski-Doo MX Z X 440 - 2002
-
№АртикулНазвание
-
1503189780 Take Apart Shock. . (Rear Suspension - Rear Shock)Take Apart Shock. . (Rear Suspension - Rear Shock)
-
2a503190061 Leaf Valve O 0. 700 x 0.004 (inches). .Leaf Valve O 0. 700 x 0.004 (inches). .
-
2b503190062 Leaf Valve O 0.700 x 0.006 (inches). .Leaf Valve O 0.700 x 0.006 (inches). .
-
2c503190063 Leaf Valve O 0.700 x 0.008 (inches). .Leaf Valve O 0.700 x 0.008 (inches). .
-
2d503190064 Leaf Valve O 0.700 x 0.10 (inches). .Leaf Valve O 0.700 x 0.10 (inches). .
-
2e503190065 Leaf Valve O 0.700 x 0.12 (inches). .Leaf Valve O 0.700 x 0.12 (inches). .
-
2f503190066 Leaf Valve O 0.700 x 0.15 (inches). .Leaf Valve O 0.700 x 0.15 (inches). .
-
3a503190067 Leaf Valve O 0.800 x 0.004 (inches). .Leaf Valve O 0.800 x 0.004 (inches). .
-
3b503190068 Leaf Valve O 0.800 x 0.006 (inches). .Leaf Valve O 0.800 x 0.006 (inches). .
-
3c503190067 Leaf Valve O 0.800 x 0.008 (inches). .Leaf Valve O 0.800 x 0.008 (inches). .
-
3c503190070 Leaf Valve O 0.800 x 0.10 (inches). .Leaf Valve O 0.800 x 0.10 (inches). .
-
3c503190071 Leaf Valve O 0.800 x 0.12 (inches). .Leaf Valve O 0.800 x 0.12 (inches). .
-
3c503190072 Leaf Valve O 0.800 x 0.15 (inches). .Leaf Valve O 0.800 x 0.15 (inches). .
-
4a503190073 Leaf Valve O 0.900 x 0.004 (inches). .Leaf Valve O 0.900 x 0.004 (inches). .
-
4b503190074 Leaf Valve O 0.900 x 0.006 (inches). .Leaf Valve O 0.900 x 0.006 (inches). .
-
4c503190075 Leaf Valve O 0.900 x 0.008 (inches). .Leaf Valve O 0.900 x 0.008 (inches). .
-
4d503190076 Leaf Valve O 0.900 x 0.10 (inches). .Leaf Valve O 0.900 x 0.10 (inches). .
-
4e503190077 Leaf Valve O 0.900 x 0.12 (inches). .Leaf Valve O 0.900 x 0.12 (inches). .
-
4f503190078 Leaf Valve O 0.900 x 0.15 (inches). .Leaf Valve O 0.900 x 0.15 (inches). .
-
5a503190079 Leaf Valve O 1.00 x 0.006 (inches). .Leaf Valve O 1.00 x 0.006 (inches). .
-
5b503190080 Leaf Valve O 1.00 x 0.008 (inches). .Leaf Valve O 1.00 x 0.008 (inches). .
-
5c503190081 Leaf Valve O 1.00 x 0.10 (inches). .Leaf Valve O 1.00 x 0.10 (inches). .
-
5d503190082 Leaf Valve O 1.00 x 0.12 (inches). .Leaf Valve O 1.00 x 0.12 (inches). .
-
5e503190083 Leaf Valve O 1.00 x 0.15 (inches). .Leaf Valve O 1.00 x 0.15 (inches). .
-
6a503190084 Leaf Valve O 1.10 x 0.006 (inches). .Leaf Valve O 1.10 x 0.006 (inches). .
-
6b503190085 Leaf Valve O 1.10 x 0.008 (inches). .Leaf Valve O 1.10 x 0.008 (inches). .
-
6c503190086 Leaf Valve O 1.10 x 0.10 (inches). .Leaf Valve O 1.10 x 0.10 (inches). .
-
6D503190087 Leaf Valve O 1.10 x 0.12 (inches). .Leaf Valve O 1.10 x 0.12 (inches). .
-
6e503190088 Leaf Valve O 1.10 x 0.15 (inches). .Leaf Valve O 1.10 x 0.15 (inches). .
-
7A503190089 Leaf Valve O 1.25 x 0.006 (inches). .Leaf Valve O 1.25 x 0.006 (inches). .
-
7b503190090 Leaf Valve O 1.25 x 0.008 (inches). .Leaf Valve O 1.25 x 0.008 (inches). .
-
7c503190091 Leaf Valve O 1.25 x 0.10 (inches). .Leaf Valve O 1.25 x 0.10 (inches). .
-
7D503190092 Leaf Valve O 1.25 x 0.12 (inches). .Leaf Valve O 1.25 x 0.12 (inches). .
-
7E503190093 Leaf Valve O 1.25 x 0.15 (inches). .Leaf Valve O 1.25 x 0.15 (inches). .
-
8a503190094 Leaf Valve O 1.30 x 0.006 (inches). .Leaf Valve O 1.30 x 0.006 (inches). .
-
8b503190095 Leaf Valve O 1.30 x 0.008 (inches). .Leaf Valve O 1.30 x 0.008 (inches). .
-
8c503190096 Leaf Valve O 1.30 x 0.10 (inches). .Leaf Valve O 1.30 x 0.10 (inches). .
-
8d503190097 Leaf Valve O 1.30 x 0.12 (inches). .Leaf Valve O 1.30 x 0.12 (inches). .
-
8e503190098 Leaf Valve O 1.30 x 0.15 (inches). .Leaf Valve O 1.30 x 0.15 (inches). .
-
9503190036 Gear Clamp. .Gear Clamp. .
-
10503190037 Reservoir. .Reservoir. .
-
11503190038 Rod Ass'y. .Rod Ass'y. .
-
12503190039 Cap Ass'y. .Cap Ass'y. .
-
13503190040 Piston Ass'y. .Piston Ass'y. .
-
14503190041 Valve Ass'y. .Valve Ass'y. .
-
15503190042 Rod Spacer. .Rod Spacer. .
-
16503190055 Cap Screw. .Cap Screw. .
-
17503190056 Pressure Valve Ass'y. .Pressure Valve Ass'y. .
-
18503190052 Purge Screw. .Purge Screw. .
-
19503190053 O-Ring. .O-Ring. .
-
20503190059 Washer. .Washer. .
-
21503190101 Piston. .Piston. .
-
22503190060 Washer. .Washer. .
-
23503190058 Locking Nut. .Locking Nut. .
