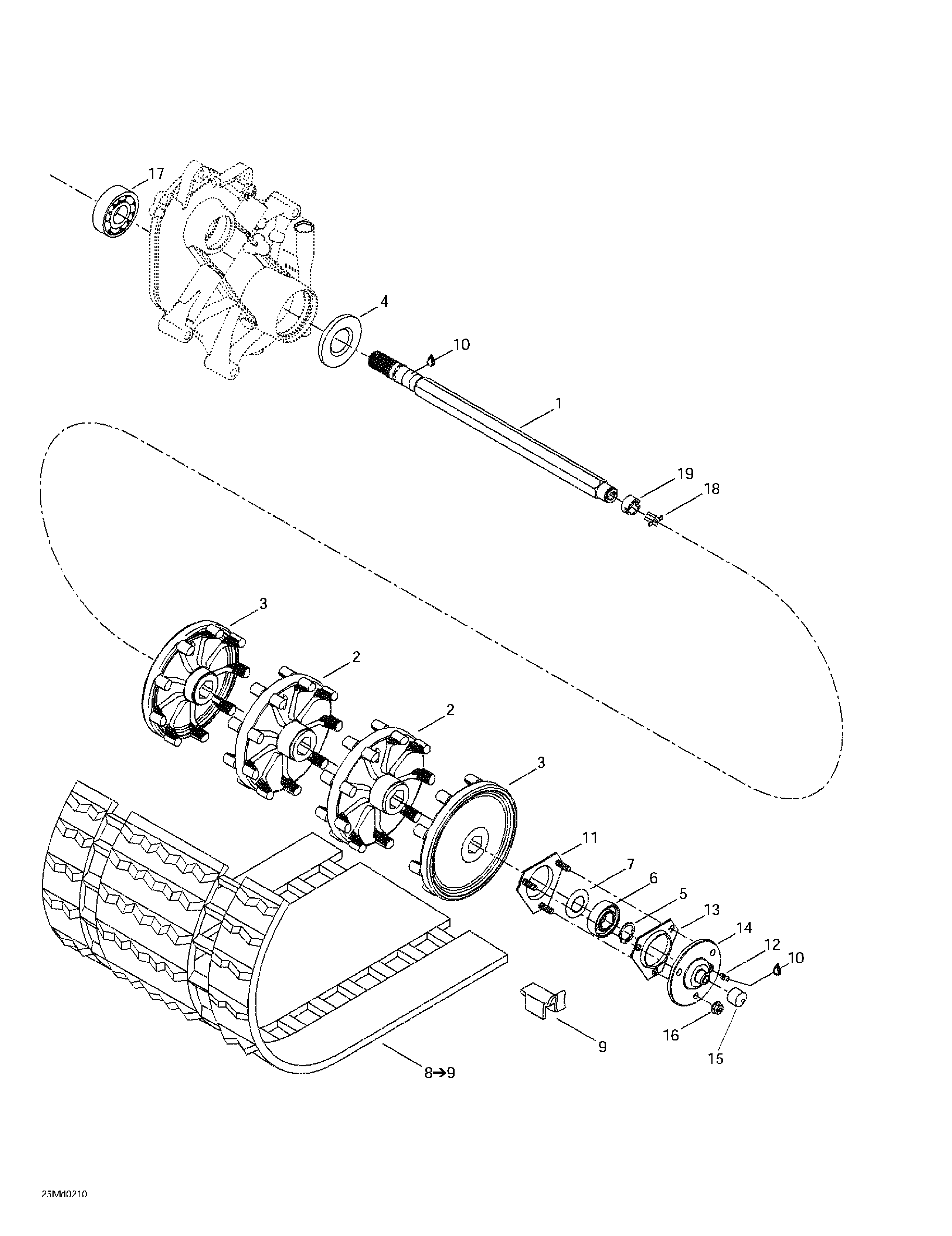

05- Drive Axle And Track для BRP Ski-Doo MX Z X 440 - 2002
-
№АртикулНазвание
-
1504151792 Drive AxleDrive Axle
-
2504151803 9-Tooth Sprocket9-Tooth Sprocket
-
3504151834 9-Tooth Half Sprocket9-Tooth Half Sprocket
-
4504151918 Oil SealOil Seal
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Ball Bearing ProtectorBall Bearing Protector
-
8504152102 Track 15'' x 21'' x 1.450''. Includes 8 - 9.Track 15'' x 21'' x 1.450''. Includes 8 - 9.
-
9500003400 Guide CleatGuide Cleat
-
10219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
11504151860 Bearing HousingBearing Housing
-
12408200700 Grease FittingGrease Fitting
-
13501025000 FlangeFlange
-
14504151836 Flange (Speedo Drive Insert)Flange (Speedo Drive Insert)
-
15504151825 CapCap
-
16233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
17504152005 Ball BearingBall Bearing
-
18572010100 Speedometer Drive InsertSpeedometer Drive Insert
-
19572097500 AdaptorAdaptor
