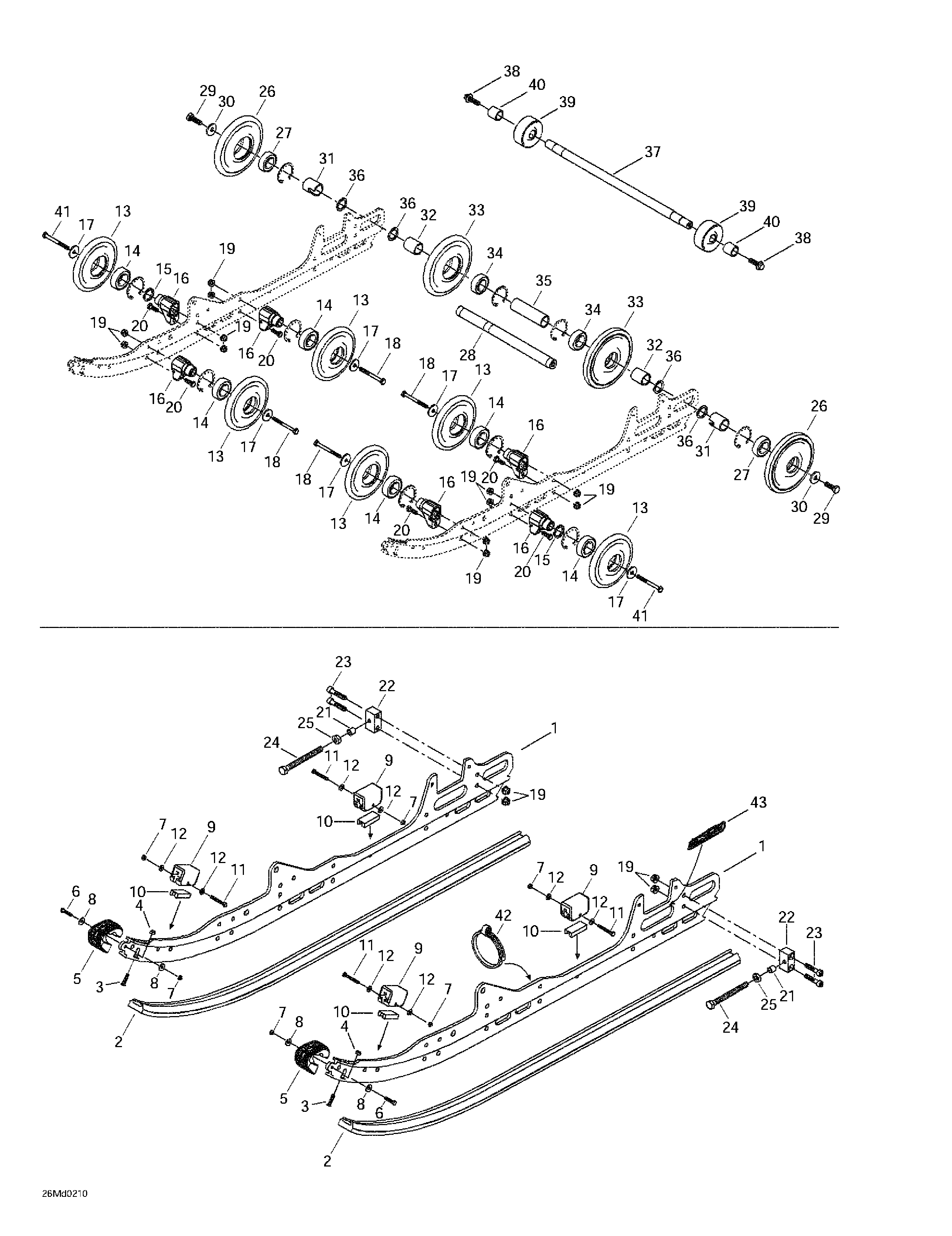

08- Rear Suspension для BRP Ski-Doo MX Z X 440 - 2002
-
№АртикулНазвание
-
1503189927 RunnerRunner
-
2560316300 ShoeShoe
-
3208562560 Screw M6 x 25Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 ProtectorProtector
-
6207152544 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 Flat WasherFlat Washer
-
9570063000 Rubber StopperRubber Stopper
-
10572084800 Reinforcement StopperReinforcement Stopper
-
11207054044 Hex. Screw M5 x 40Hex. Screw M5 x 40
-
12391301700 Flat WasherFlat Washer
-
13503189171 Wheel 135 Ass'y (thin). Includes 13 - 14.Wheel 135 Ass'y (thin). Includes 13 - 14.
-
14405404500 Ball Bearing 6205Ball Bearing 6205
-
15503173700 WasherWasher
-
16503189679 SupportSupport
-
17503183100 WasherWasher
-
18207088044 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
19233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
20207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
21503168500 SpacerSpacer
-
22503189211 TensionerTensioner
-
23205084044 Socket Head Screw M8 x 40Socket Head Screw M8 x 40
-
24230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
25232006414 Nut M10Nut M10
-
26503189568 Wheel 165. Includes 26 - 27.Wheel 165. Includes 26 - 27.
-
27405404500 Ball Bearing 6205Ball Bearing 6205
-
28503167900 Rear AxleRear Axle
-
29250000019 Hex. ScrewHex. Screw
-
30503183300 WasherWasher
-
31503189809 Outer SpacerOuter Spacer
-
32503182900 Inner SpacerInner Spacer
-
33503189579 Wheel 165 (Thin). Includes 33 - 34.Wheel 165 (Thin). Includes 33 - 34.
-
34405404500 Ball Bearing 6205Ball Bearing 6205
-
35503156000 Central SpacerCentral Spacer
-
36503180400 WasherWasher
-
37503189733 ShaftShaft
-
38207582544 Hex. Flanged Screw M8 x 25 (Scotch Grip)Hex. Flanged Screw M8 x 25 (Scotch Grip)
-
39503189514 Track ProtectorTrack Protector
-
40503189254 SpacerSpacer
-
41207088544 Hex. Screw M8 x 85Hex. Screw M8 x 85
-
42293650036 Tridon ClampTridon Clamp
-
43516001248 Suspension DecalSuspension Decal
