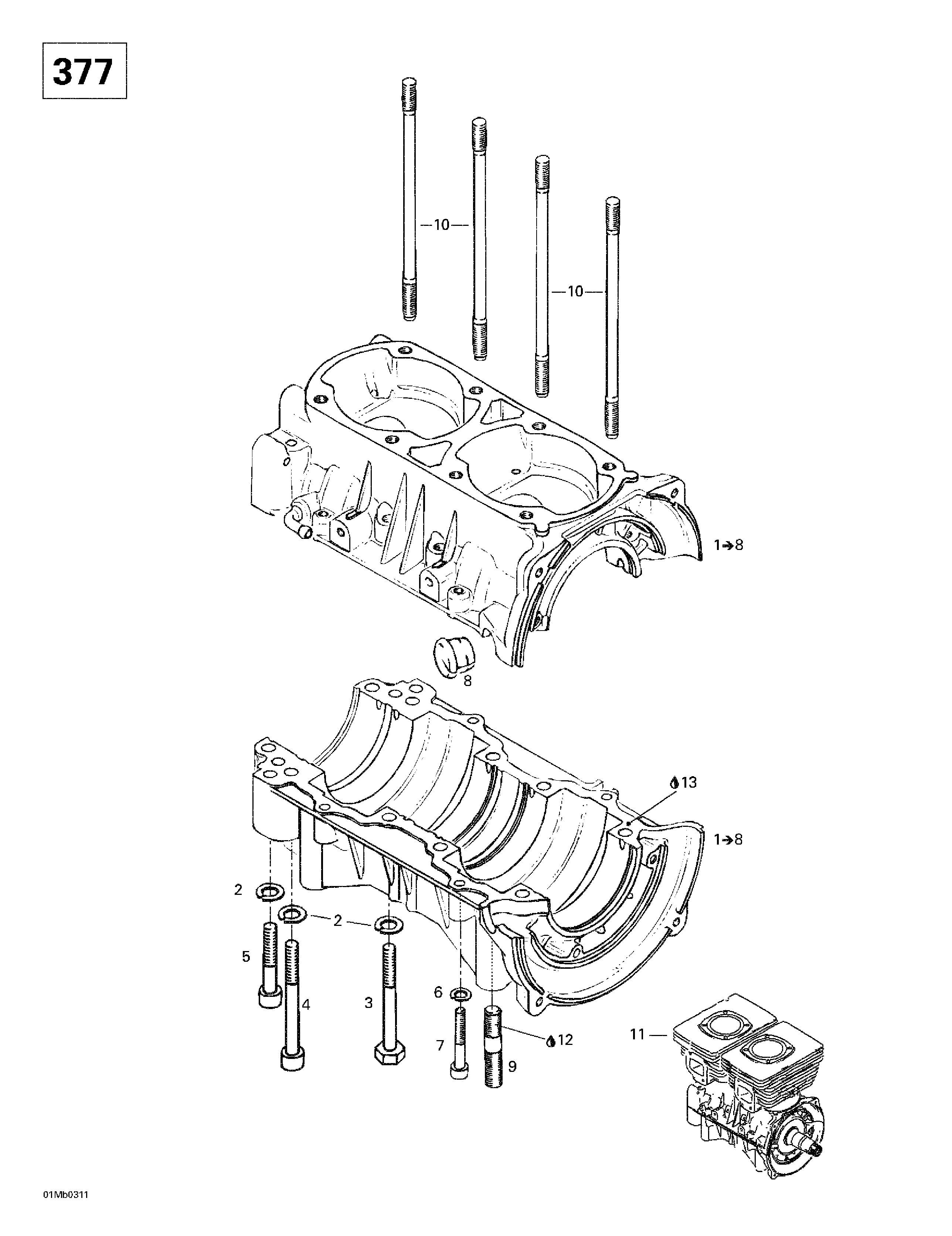

01- Crankcase (377) для BRP Ski-Doo Grand Touring 380 F/550 F - 2003
-
№АртикулНазвание
-
1420888483 Crankcase Ass'y. Includes 1 - 7. 380 F.Crankcase Ass'y. Includes 1 - 7. 380 F.
-
2420945752 Lock Washer 8 mm. 380 F.Lock Washer 8 mm. 380 F.
-
3420841201 Hex. Screw M8 x 70. 380 F.Hex. Screw M8 x 70. 380 F.
-
4420841831 Screw M8 x 75. 380 F.Screw M8 x 75. 380 F.
-
5420841566 Socket Head Screw M8 x 50. 380 F.Socket Head Screw M8 x 50. 380 F.
-
6420945751 Lock Washer 6 mm. 380 F.Lock Washer 6 mm. 380 F.
-
7420241816 Socket Head Screw M6 x 40. 380 F.Socket Head Screw M6 x 40. 380 F.
-
8420860962 Cable Grommet. 380 F.Cable Grommet. 380 F.
-
9420940190 Stud M10. 380 F.Stud M10. 380 F.
-
10420841149 Stud M8 x 167. 380 F.Stud M8 x 167. 380 F.
-
11420037704 Short Block Ass'y. 380 F.Short Block Ass'y. 380 F.
-
12293800060 Loctite 243, 10 ml. 380 F.Loctite 243, 10 ml. 380 F.
-
13420297906 Sealing Compound, 30 ml. 380 F.Sealing Compound, 30 ml. 380 F.
