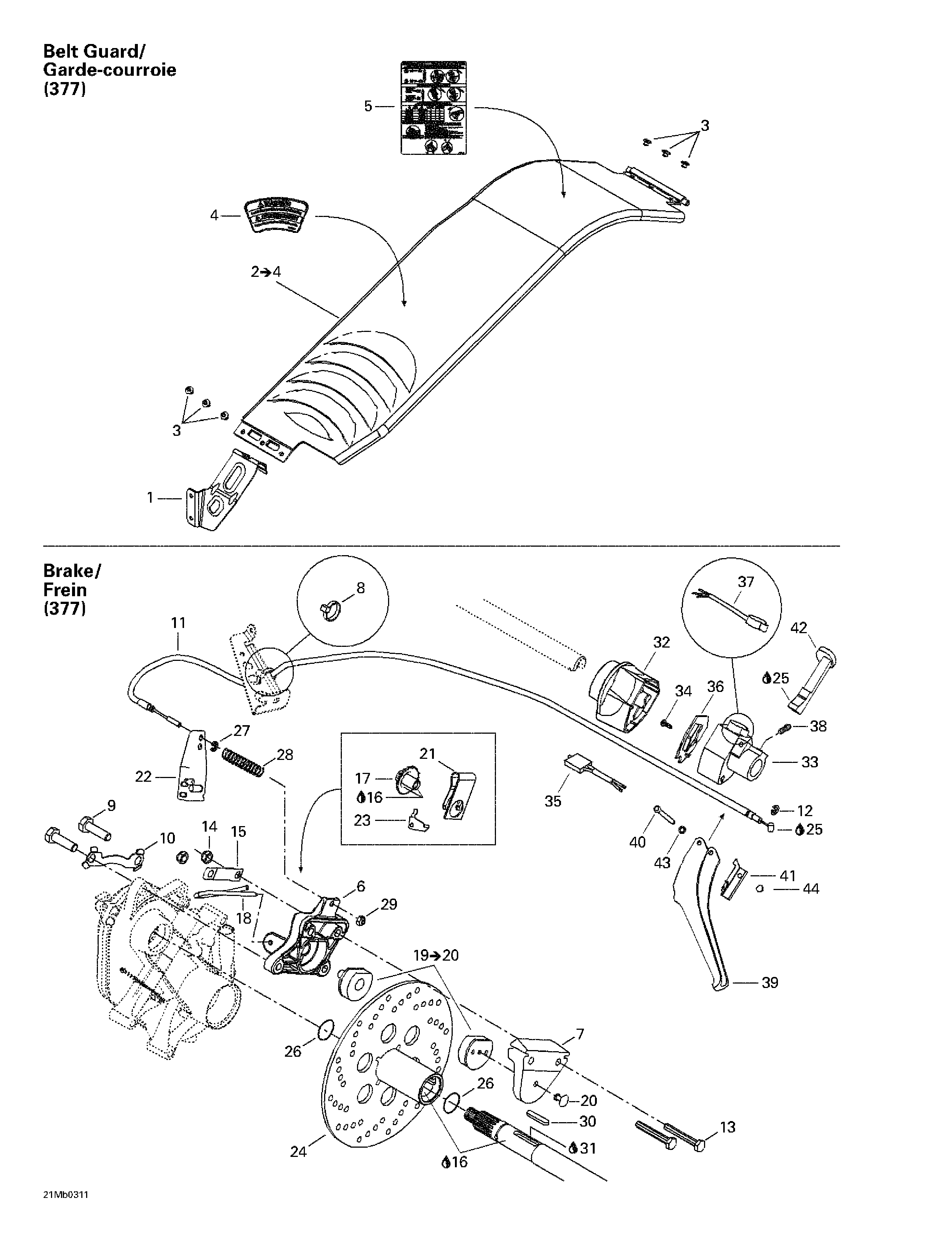

06- Mechanic Brake And Belt Guard (377) для BRP Ski-Doo Grand Touring 380 F/550 F - 2003
-
№АртикулНазвание
-
1417300172 Pulley Guard Bracket. 380 F.Pulley Guard Bracket. 380 F.
-
2417300173 Belt Guard Ass'y. Includes 2 - 4. 380 F.Belt Guard Ass'y. Includes 2 - 4. 380 F.
-
3390402200 Pop Rivet 3/16''. 380 F.Pop Rivet 3/16''. 380 F.
-
4516001190 Label Security (Belt Guard). 380 F.Label Security (Belt Guard). 380 F.
-
5516001640 Suspension Adjustment Decal. 380 F.Suspension Adjustment Decal. 380 F.
-
6507032303 Caliper. 380 F.Caliper. 380 F.
-
7414466800 Caliper. 380 F.Caliper. 380 F.
-
8414115200 Tie-Rap. 380 F.Tie-Rap. 380 F.
-
9207103544 Hex. Screw M10 x 35. 380 F.Hex. Screw M10 x 35. 380 F.
-
10507032316 Locking Tab. 380 F.Locking Tab. 380 F.
-
11507032315 Brake Cable. 380 F.Brake Cable. 380 F.
-
12414274500 Circlip. 380 F.Circlip. 380 F.
-
13207085544 Hex. Screw M8 x 55. 380 F.Hex. Screw M8 x 55. 380 F.
-
14232581414 Elastic Stop Nut M8. 380 F.Elastic Stop Nut M8. 380 F.
-
15507020400 Locking Tab. 380 F.Locking Tab. 380 F.
-
16293800070 Loctite 767, Antiseize Lubricant, 8 oz. 380 F.Loctite 767, Antiseize Lubricant, 8 oz. 380 F.
-
17507032310 Wheel Ratchet. 380 F.Wheel Ratchet. 380 F.
-
18507032306 Hair Pin. 380 F.Hair Pin. 380 F.
-
19860701700 Brake Pad Kit. Includes 19 - 20. 380 F.Brake Pad Kit. Includes 19 - 20. 380 F.
-
20390409600 Pop Rivet 3/16''. 380 F.Pop Rivet 3/16''. 380 F.
-
21507020200 Release Spring. 380 F.Release Spring. 380 F.
-
22507021500 Lever. 380 F.Lever. 380 F.
-
23507009400 Ratchet Spring. 380 F.Ratchet Spring. 380 F.
-
24507029000 Brake Disk. 380 F.Brake Disk. 380 F.
-
25293550004 Dielectric Grease, 150 g. 380 F.Dielectric Grease, 150 g. 380 F.
-
26414928900 O-Ring. 380 F.O-Ring. 380 F.
-
27371901300 Circlip. 380 F.Circlip. 380 F.
-
28414460600 Spring. 380 F.Spring. 380 F.
-
29232561414 Elastic Stop Nut M6. 380 F.Elastic Stop Nut M6. 380 F.
-
30507021300 Key. 380 F.Key. 380 F.
-
31293800073 Loctite 277, 10 ml. 380 F.Loctite 277, 10 ml. 380 F.
-
32507032311 Brake Cover. 380 F.Brake Cover. 380 F.
-
33572086500 Brake Housing. 380 F.Brake Housing. 380 F.
-
34414473200 Self Tapping Screw. 380 F.Self Tapping Screw. 380 F.
-
35507032318 Brake Switch. 380 F.Brake Switch. 380 F.
-
36507032328 Plate. 380 F.Plate. 380 F.
-
37507032314 Dimmer Switch. 380 F.Dimmer Switch. 380 F.
-
38414440800 Set Screw. 380 F.Set Screw. 380 F.
-
39572025700 Brake Handle. 380 F.Brake Handle. 380 F.
-
40517229400 Pin. 380 F.Pin. 380 F.
-
41507032317 Spring. 380 F.Spring. 380 F.
-
42572025200 Brake Lever. 380 F.Brake Lever. 380 F.
-
43414729400 Spring Washer. 380 F.Spring Washer. 380 F.
-
44389804300 Push Nut. 380 F.Push Nut. 380 F.
