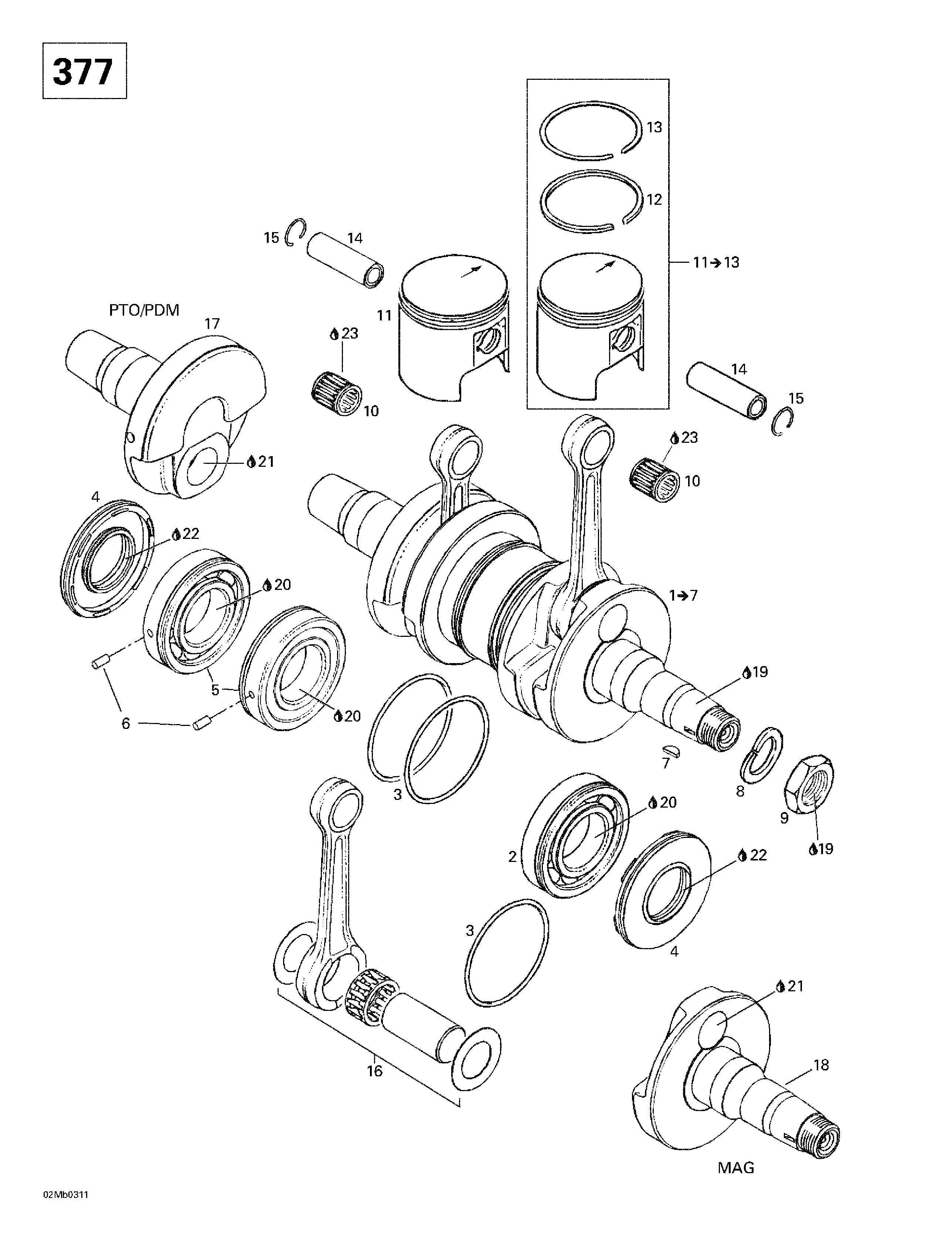

01- Crankshaft And Pistons (377) для BRP Ski-Doo Grand Touring 380 F/550 F - 2003
-
№АртикулНазвание
-
1420889630 Crankshaft Ass'y. Includes 1 - 7. 380 F.Crankshaft Ass'y. Includes 1 - 7. 380 F.
-
2420832570 Ball Bearing 6207. 380 F.Ball Bearing 6207. 380 F.
-
3420250165 O-Ring 64 mm. 380 F.O-Ring 64 mm. 380 F.
-
4420831950 Oil Seal. 380 F.Oil Seal. 380 F.
-
5420832574 Ball Bearing 6207 Ass'y. Includes 5 - 6. 380 F.Ball Bearing 6207 Ass'y. Includes 5 - 6. 380 F.
-
6420929972 Dowel Pin. 380 F.Dowel Pin. 380 F.
-
7420246055 Woodruff Key. 380 F.Woodruff Key. 380 F.
-
8420945759 Lock Washer 22 mm. 380 F.Lock Washer 22 mm. 380 F.
-
9420842230 Hex. Nut M 22. 380 F.Hex. Nut M 22. 380 F.
-
10420932904 Needle Bearing. 380 F.Needle Bearing. 380 F.
-
11420887475 Piston Ass'y 61.94 mm. Includes 11 - 13. 380 F.Piston Ass'y 61.94 mm. Includes 11 - 13. 380 F.
-
420887476 Oversize Piston Ass'y 62.19 mm. 380 F.Oversize Piston Ass'y 62.19 mm. 380 F.
-
420887477 Oversize Piston Ass'y 62.44 mm. 380 F.Oversize Piston Ass'y 62.44 mm. 380 F.
-
12420915895 Rectangular Ring 62.0 mm. 380 F.Rectangular Ring 62.0 mm. 380 F.
-
420915896 Rectangular Ring 62.25 mm. 380 F.Rectangular Ring 62.25 mm. 380 F.
-
420915897 Rectangular Ring 62.5 mm. 380 F.Rectangular Ring 62.5 mm. 380 F.
-
13420215215 Semi-Trapez Ring 62.0 mm. 380 F.Semi-Trapez Ring 62.0 mm. 380 F.
-
420215216 Semi-Trapez Ring 62.25 mm. 380 F.Semi-Trapez Ring 62.25 mm. 380 F.
-
420215217 Semi-Trapez Ring 62.5 mm. 380 F.Semi-Trapez Ring 62.5 mm. 380 F.
-
14420916260 Piston Pin. 380 F.Piston Pin. 380 F.
-
15420945735 Circlip. 380 F.Circlip. 380 F.
-
16420889634 Rod Repair Kit. 380 F.Rod Repair Kit. 380 F.
-
17420818204 Crankshaft half PTO. 380 F.Crankshaft half PTO. 380 F.
-
18420819010 Crankshaft half MAG. 380 F.Crankshaft half MAG. 380 F.
-
19293800060 Loctite 243, 10 ml. 380 F.Loctite 243, 10 ml. 380 F.
-
20293800070 Loctite 767, Antiseize Lubricant, 454g. 380 F.Loctite 767, Antiseize Lubricant, 454g. 380 F.
-
21413711400 Loctite 648, 10 ml. 380 F.Loctite 648, 10 ml. 380 F.
-
22413707000 Molykote 111. 380 F.Molykote 111. 380 F.
-
23413802900 Injection Oil (12 x 1 Liter). 380 F.Injection Oil (12 x 1 Liter). 380 F.
