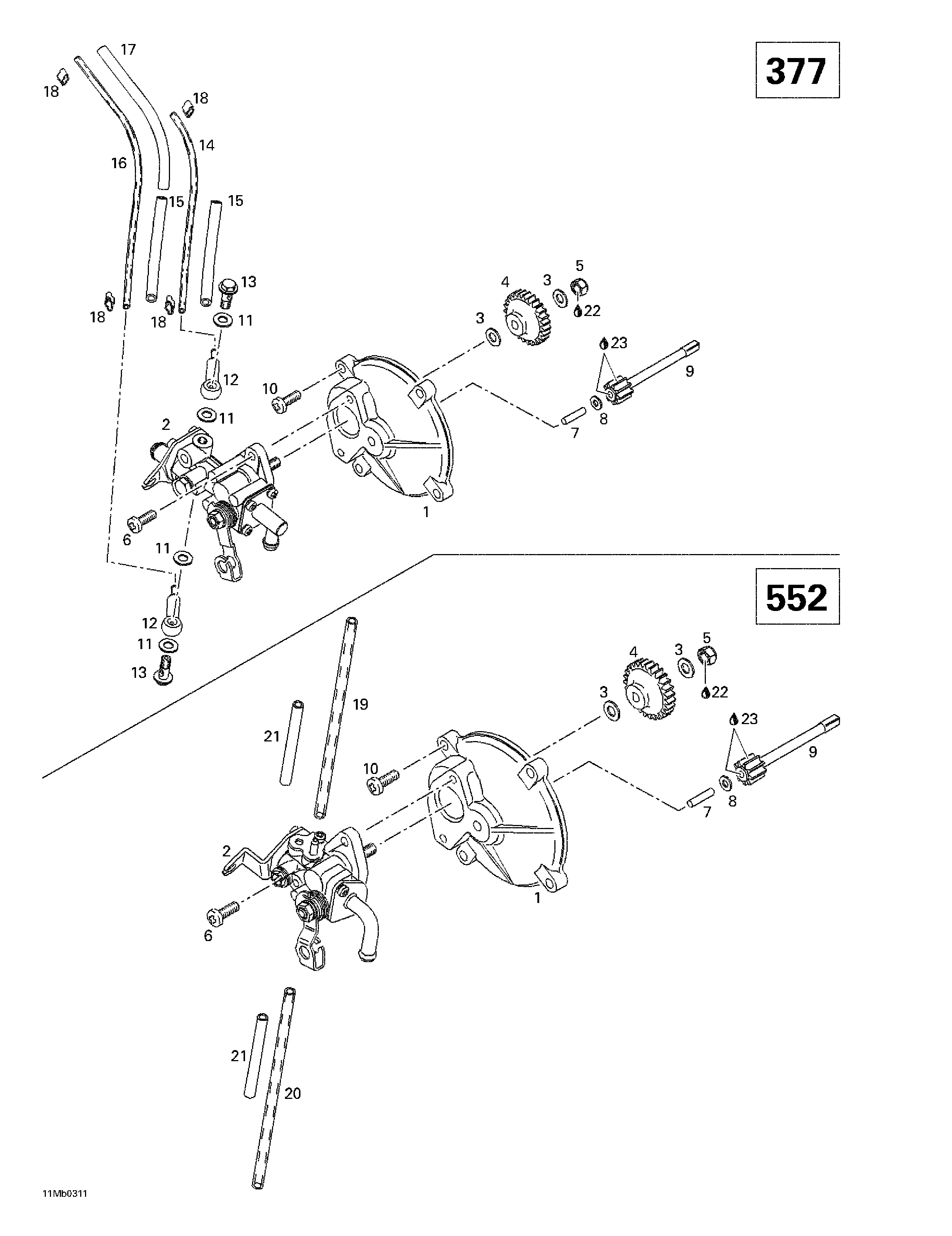

02- Oil Injection System для BRP Ski-Doo Grand Touring 380 F/550 F - 2003
-
№АртикулНазвание
-
1420910160 Pump Mounting FlangePump Mounting Flange
-
2420887997 Oil Pump Ass'y. 380 F.Oil Pump Ass'y. 380 F.
-
420889070 Oil Pump Ass'y. 550 F.Oil Pump Ass'y. 550 F.
-
3420927945 Flat WasherFlat Washer
-
4420935930 Oil Pump Gear (27 Teeth)Oil Pump Gear (27 Teeth)
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6420841971 Screw M5.5 x 16 (Plastite)Screw M5.5 x 16 (Plastite)
-
7420832260 Needle PinNeedle Pin
-
8420244073 Washer 4.3 mmWasher 4.3 mm
-
9420935970 Gear (9 Teeth)Gear (9 Teeth)
-
10420841976 Screw M5.5 x 16 (Plastite)Screw M5.5 x 16 (Plastite)
-
11404146600 Sealing Washer. 380 F.Sealing Washer. 380 F.
-
12420956010 Valve Ass'y. 380 F.Valve Ass'y. 380 F.
-
13404146800 Banjo Bolt M6 x 16. 380 F.Banjo Bolt M6 x 16. 380 F.
-
14414413800 Oil Line. 380 F.Oil Line. 380 F.
-
15420960750 Isolation Line 90 mm. 380 F.Isolation Line 90 mm. 380 F.
-
16414413800 Oil Line. 380 F.Oil Line. 380 F.
-
17420960729 Isolation Hose 150 mm. 380 F.Isolation Hose 150 mm. 380 F.
-
18420853840 Clamp. 380 F.Clamp. 380 F.
-
19420660491 Oil Line (270 mm). 550 F.Oil Line (270 mm). 550 F.
-
20420660427 Oil Line (420 mm). 550 F.Oil Line (420 mm). 550 F.
-
21420960728 Isolation Line (120 mm). 550 F.Isolation Line (120 mm). 550 F.
-
22293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
23413707000 Molykote 111Molykote 111
