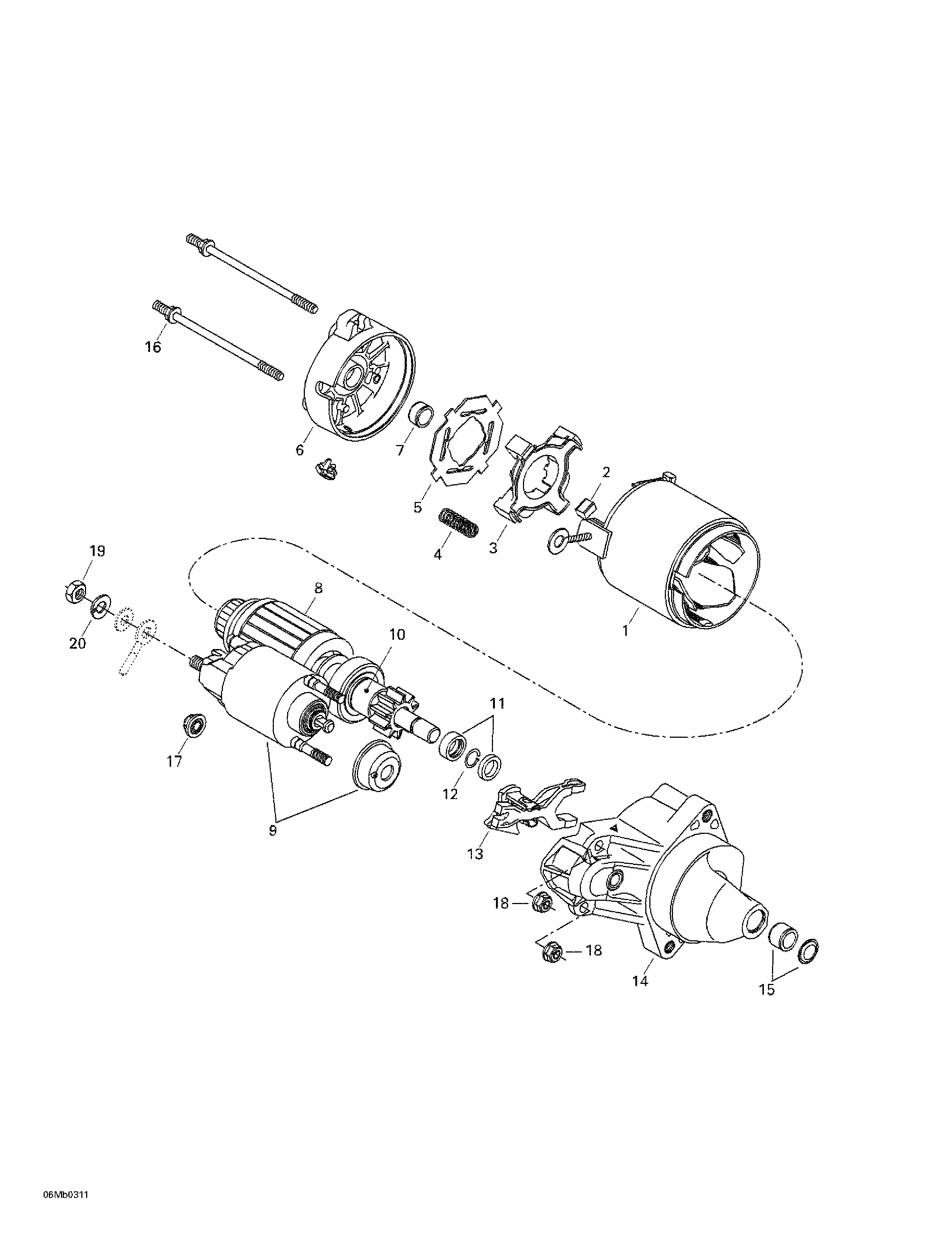

04- Electric Starter для BRP Ski-Doo Grand Touring 380 F/550 F - 2003
![](/wa-data/public/shop/sheme/bombardier/ski-doo/ca9ff736-cf31-4cf5-b40e-061fc4fcdfdb.png)
-
№АртикулНазвание
-
1515175795 Electric Starter. Includes 1 - 20.Electric Starter. Includes 1 - 20.
-
1410213106 Housing StarterHousing Starter
-
2410213107 BrushBrush
-
3410209700 Brush HolderBrush Holder
-
4410209800 SpringSpring
-
5410209900 InsulatorInsulator
-
6410213108 HousingHousing
-
7410210100 Bushing BrassBushing Brass
-
8410210200 Armature Ass'yArmature Ass'y
-
9410210300 Switch Ass'ySwitch Ass'y
-
10410210400 ClutchClutch
-
11410212500 NutNut
-
12410212600 CirclipCirclip
-
13410213109 LeverLever
-
14410213113 HousingHousing
-
15410210900 Bushing BrassBushing Brass
-
16410212000 BoltBolt
-
17410211100 NutNut
-
18410211200 NutNut
-
19232081414 Nut M8Nut M8
-
20234181401 Lock WasherLock Washer
