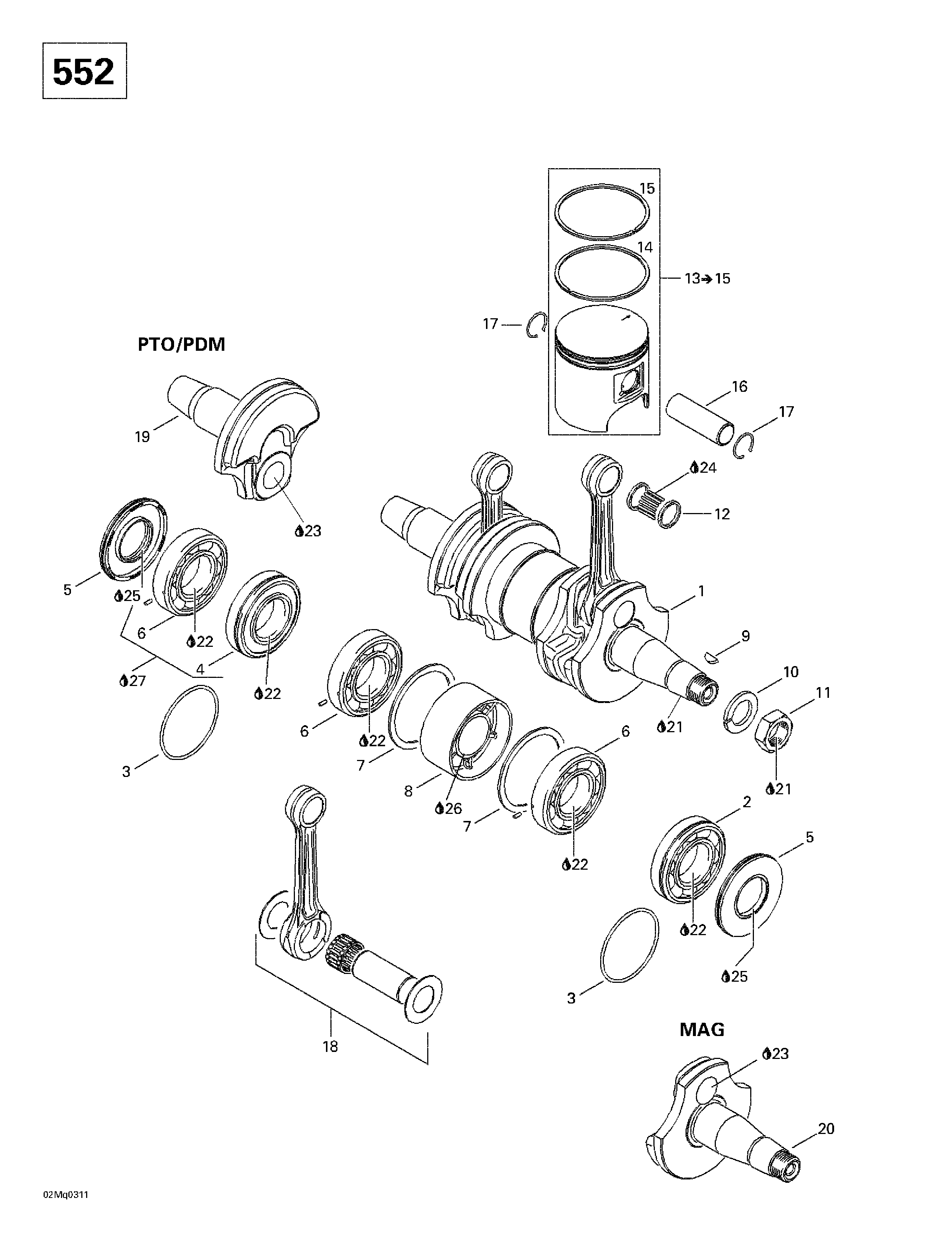

01- Crankshaft And Pistons (552) для BRP Ski-Doo Grand Touring 380 F/550 F - 2003
-
№АртикулНазвание
-
1420889060 Crankshaft Ass'y. Includes 1 - 8. 550 F.Crankshaft Ass'y. Includes 1 - 8. 550 F.
-
2420832571 Ball Bearing. 550 F.Ball Bearing. 550 F.
-
3293300022 O-Ring. 550 F.O-Ring. 550 F.
-
4420832637 Ball Bearing. 550 F.Ball Bearing. 550 F.
-
5290831952 Oil Seal. 550 F.Oil Seal. 550 F.
-
6420832573 Ball Bearing. 550 F.Ball Bearing. 550 F.
-
7420927710 Retaining Disk. 550 F.Retaining Disk. 550 F.
-
8420850149 Labyrinth Sleeve. 550 F.Labyrinth Sleeve. 550 F.
-
9420246055 Woodroff Key. 550 F.Woodroff Key. 550 F.
-
10420945759 Lock Washer. 550 F.Lock Washer. 550 F.
-
11420842230 Hex. Nut M22 x 1.5. 550 F.Hex. Nut M22 x 1.5. 550 F.
-
12420832420 Needle Bearing. 550 F.Needle Bearing. 550 F.
-
13420889050 Piston Ass'y 75.86 mm. Includes 13 - 15. 550 F.Piston Ass'y 75.86 mm. Includes 13 - 15. 550 F.
-
420889051 Piston Ass'y 76.11 mm. 550 F.Piston Ass'y 76.11 mm. 550 F.
-
420889052 Piston Ass'y 76.36 mm. 550 F.Piston Ass'y 76.36 mm. 550 F.
-
14420815300 Rectangular Ring 76 mm. 550 F.Rectangular Ring 76 mm. 550 F.
-
420815301 Rectangular Ring 76.25 mm. 550 F.Rectangular Ring 76.25 mm. 550 F.
-
420815302 Rectangular Ring 76.50 mm. 550 F.Rectangular Ring 76.50 mm. 550 F.
-
15420815150 Semi-trapez Ring 76 mm. 550 F.Semi-trapez Ring 76 mm. 550 F.
-
420815151 Semi-trapez Ring 76.25 mm. 550 F.Semi-trapez Ring 76.25 mm. 550 F.
-
420815152 Semi-trapez Ring 76.50 mm. 550 F.Semi-trapez Ring 76.50 mm. 550 F.
-
16420916405 Piston Pin. 550 F.Piston Pin. 550 F.
-
17420845106 Piston Circlip. 550 F.Piston Circlip. 550 F.
-
18420889064 Rod Repair Kit. 550 F.Rod Repair Kit. 550 F.
-
19420819180 Crankshaft PTO Side. 550 F.Crankshaft PTO Side. 550 F.
-
20420819210 Crankshaft MAG Side. 550 F.Crankshaft MAG Side. 550 F.
-
21293800060 Loctite 243, 10 ml. 550 F.Loctite 243, 10 ml. 550 F.
-
22293800070 Loctite 767, Antiseize Lubricant, 8 oz. 550 F.Loctite 767, Antiseize Lubricant, 8 oz. 550 F.
-
23413711400 Loctite 648, 10 ml. 550 F.Loctite 648, 10 ml. 550 F.
-
24413802900 Injection Oil (12 x 1 litre). 550 F.Injection Oil (12 x 1 litre). 550 F.
-
25420899271 Petamo Grease, GH133N, 400 g. 550 F.Petamo Grease, GH133N, 400 g. 550 F.
-
27293550021 Isoflex Grease, 50 g. 550 F.Isoflex Grease, 50 g. 550 F.
