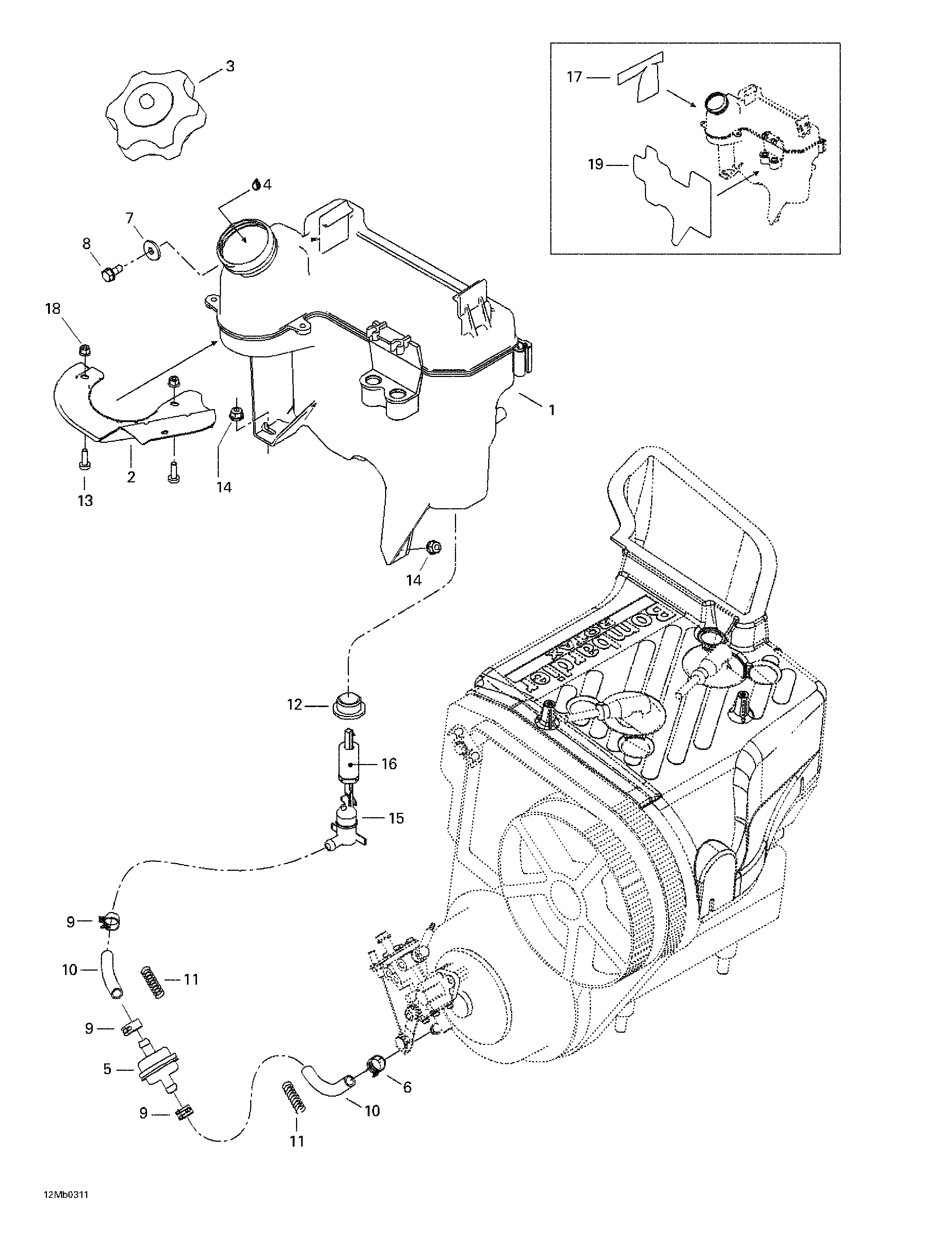

02- Oil Tank And Support для BRP Ski-Doo Grand Touring 380 F/550 F - 2003
-
№АртикулНазвание
-
1519000041 Injection Oil TankInjection Oil Tank
-
2519000043 DeflectorDeflector
-
3519000042 Oil Tank CapOil Tank Cap
-
4413803100 Blizzard Oil (12 x 500 ml)Blizzard Oil (12 x 500 ml)
-
413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liter)Injection Oil (3 x 4 Liter)
-
413803200 Injection Oil (205 Liter)Injection Oil (205 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liter)Synthetic Injection Oil (3 x 4 Liter)
-
413710700 Synthetic Injection Oil (205 Liter)Synthetic Injection Oil (205 Liter)
-
413710500 Synthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-SSynthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-S
-
5414536500 FilterFilter
-
6414420700 Spring ClipSpring Clip
-
7250200000 Lock Washer 6 mmLock Washer 6 mm
-
8210261280 Hex. Screw M6Hex. Screw M6
-
9414415200 Spring ClipSpring Clip
-
10415080700 Oil LineOil Line
-
11414940300 SpringSpring
-
12570023000 GrommetGrommet
-
13208651641 Philips Screw M5Philips Screw M5
-
14233261414 Elastic Stop Nut M6Elastic Stop Nut M6
-
15414681800 Oil Level SensorOil Level Sensor
-
16414681900 FloatFloat
-
17519000051 Reflective SheetReflective Sheet
-
18233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
19519000059 Reflective SheetReflective Sheet
