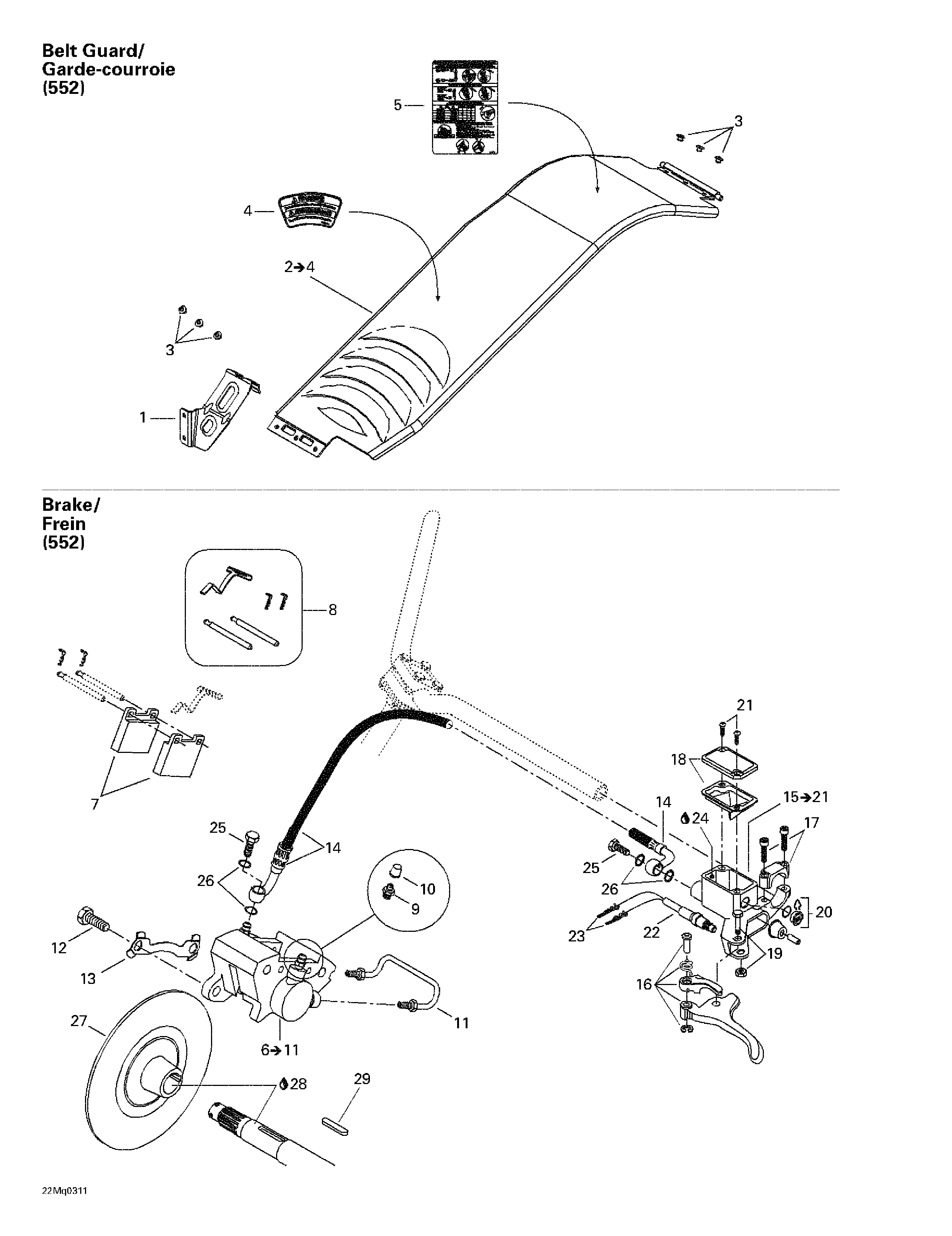

06- Hydraulic Brake And Belt Guard (552) для BRP Ski-Doo Grand Touring 380 F/550 F - 2003
-
№АртикулНазвание
-
1417300172 Pulley Guard Bracket. 550 F.Pulley Guard Bracket. 550 F.
-
2417300173 Belt Guard Ass'y. Includes 2 - 4. 550 F.Belt Guard Ass'y. Includes 2 - 4. 550 F.
-
3390402200 Pop Rivet 3/16''. 550 F.Pop Rivet 3/16''. 550 F.
-
4516001190 Label Security (Belt Guard). 550 F.Label Security (Belt Guard). 550 F.
-
5516001640 Suspension Adjustment Decal. 550 F.Suspension Adjustment Decal. 550 F.
-
6507032349 Caliper. Includes 6 - 11. 550 F.Caliper. Includes 6 - 11. 550 F.
-
7415053600 Brake Lining Kit. 550 F.Brake Lining Kit. 550 F.
-
8414990700 Kit (Pins, Retainers, Spring). 550 F.Kit (Pins, Retainers, Spring). 550 F.
-
9414989800 Screw-Bleeder. 550 F.Screw-Bleeder. 550 F.
-
10414989700 Boot. 550 F.Boot. 550 F.
-
11414989900 Rigid Tubing. 550 F.Rigid Tubing. 550 F.
-
12207103544 Hex. Screw M10 x 35. 550 F.Hex. Screw M10 x 35. 550 F.
-
13507032316 Locking Tab. 550 F.Locking Tab. 550 F.
-
14507032237 Hose. 550 F.Hose. 550 F.
-
15507032293 Master Cylinder. Includes 15 - 21. 550 F.Master Cylinder. Includes 15 - 21. 550 F.
-
16507032268 Brake Short Lever Ass'y. 550 F.Brake Short Lever Ass'y. 550 F.
-
17415029800 Clamp Ass'y. 550 F.Clamp Ass'y. 550 F.
-
18415029900 Cap. 550 F.Cap. 550 F.
-
19415030000 Pin Ass'y. 550 F.Pin Ass'y. 550 F.
-
20414990600 Window. 550 F.Window. 550 F.
-
21216141260 Screw M4 x 12. 550 F.Screw M4 x 12. 550 F.
-
22507032366 Microswitch. 550 F.Microswitch. 550 F.
-
23515175232 Male Terminal. 550 F.Male Terminal. 550 F.
-
24293600063 Brake Fluid, SRF (Dot 4). 550 F.Brake Fluid, SRF (Dot 4). 550 F.
-
24203600062 Brake Fluid, GTLMA (Dot 4), 12 x 354 ml. 550 F.Brake Fluid, GTLMA (Dot 4), 12 x 354 ml. 550 F.
-
25414920500 Banjo Bolt. 550 F.Banjo Bolt. 550 F.
-
26414920600 Washer. 550 F.Washer. 550 F.
-
27507032203 Brake Disk. 550 F.Brake Disk. 550 F.
-
28293800070 Loctite 767, Antiseize Lubricant, 8 oz. 550 F.Loctite 767, Antiseize Lubricant, 8 oz. 550 F.
-
29507021300 Key. 550 F.Key. 550 F.
