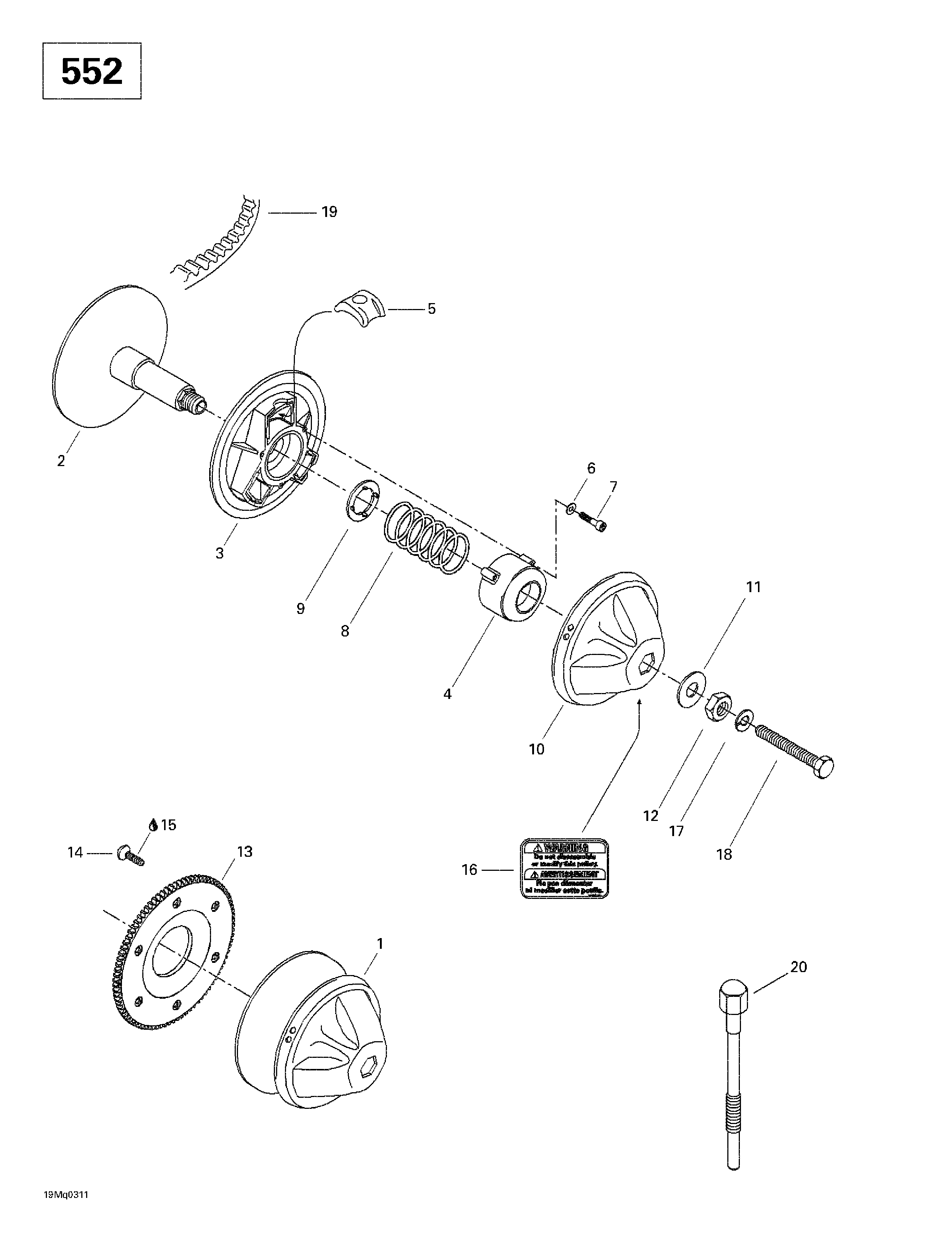

05- Drive Pulley (552) для BRP Ski-Doo Grand Touring 380 F/550 F - 2003
![](/wa-data/public/shop/sheme/bombardier/ski-doo/148d6061-1199-4709-b079-26a7805c92c6.png)
-
№АртикулНазвание
-
2415128601 Inner Flange. 550 F.Inner Flange. 550 F.
-
3417126692 Sliding Flange. 550 F.Sliding Flange. 550 F.
-
4415128602 Spring Cover. 550 F.Spring Cover. 550 F.
-
5415128603 Centrifugal Block. 550 F.Centrifugal Block. 550 F.
-
6420245370 Washer. 550 F.Washer. 550 F.
-
7415128606 Socket Head Screw M6 x 35. 550 F.Socket Head Screw M6 x 35. 550 F.
-
8415128607 Spring (Violet/Green). 550 F.Spring (Violet/Green). 550 F.
-
9417126694 Seat Spring. 550 F.Seat Spring. 550 F.
-
10415128609 Cap. 550 F.Cap. 550 F.
-
11415128610 Washer. 550 F.Washer. 550 F.
-
12417118300 Nut. 550 F.Nut. 550 F.
-
13417300186 Ring Gear (86 Teeth). 550 F.Ring Gear (86 Teeth). 550 F.
-
14236281684 Tork Screw M8 x 16. 550 F.Tork Screw M8 x 16. 550 F.
-
15293800005 Loctite 271, 10 ml. 550 F.Loctite 271, 10 ml. 550 F.
-
16516001726 Security Label (Disassembling). 550 F.Security Label (Disassembling). 550 F.
-
17392002800 Lock Spring Washer. 550 F.Lock Spring Washer. 550 F.
-
18417113800 Bolt. 550 F.Bolt. 550 F.
-
19415060600 Drive Belt. 550 F.Drive Belt. 550 F.
-
20529022400 Puller Inner Half. 550 F.Puller Inner Half. 550 F.
