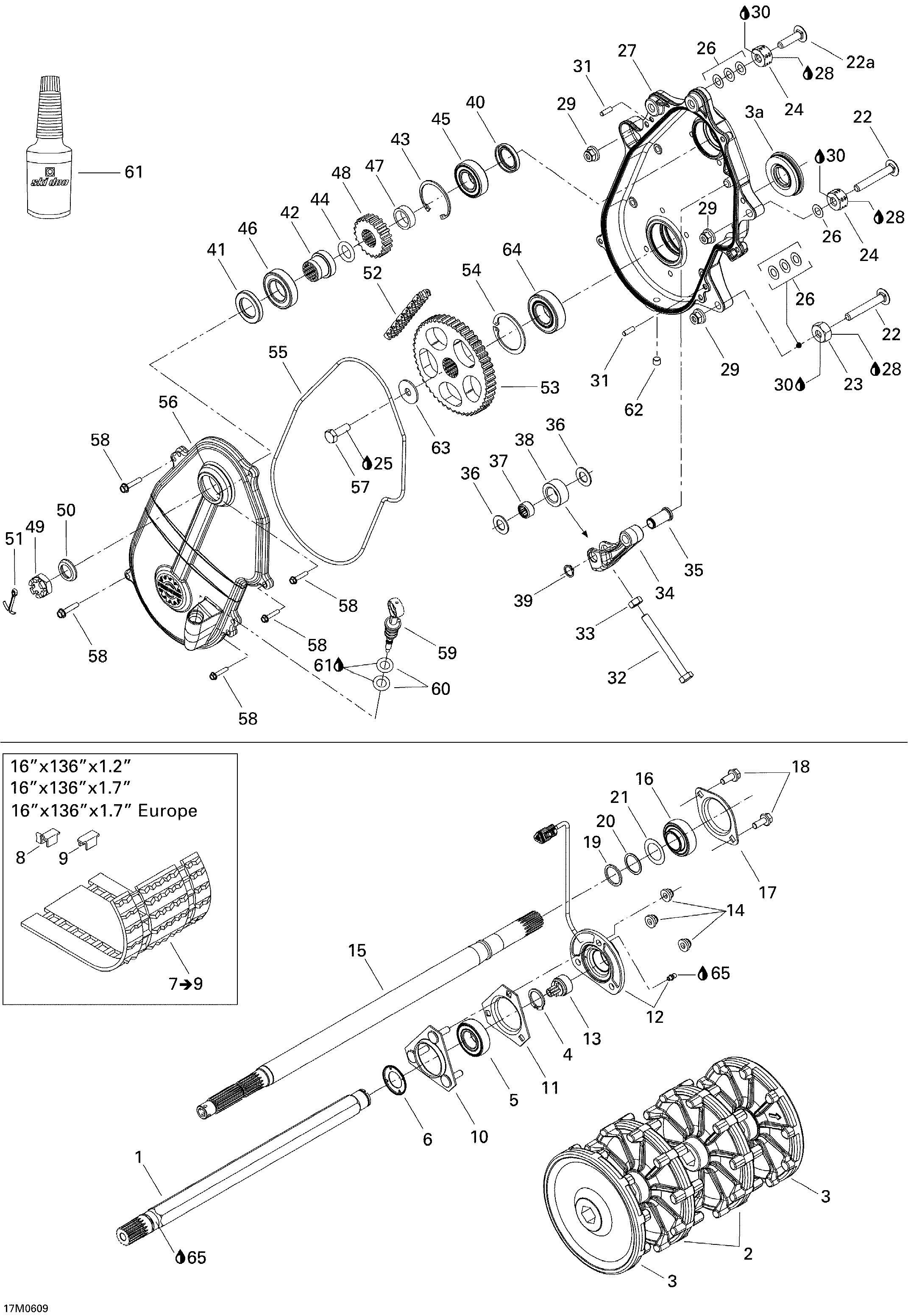

05- Drive System для BRP Ski-Doo MX Z 1000 SDI Renegade X - 2006
-
№АртикулНазвание
-
1504152424 Drive AxleDrive Axle
-
2504152198 Sprocket, 10 TeethSprocket, 10 Teeth
-
3504152199 Half Sprocket, 10 TeethHalf Sprocket, 10 Teeth
-
3a504151918 Oil Seal Ass'yOil Seal Ass'y
-
4371910200 CirclipCirclip
-
5504152009 Ball BearingBall Bearing
-
6501017400 Bearing ProtectorBearing Protector
-
7504152406 Track Ass'y 16''x136''x1.75''. Includes 7 to 9 / Track 16X136X1.7Track Ass'y 16''x136''x1.75''. Includes 7 to 9 / Track 16X136X1.7
-
7504152486 Track Ass'y 16''x136''x1.25''. Includes 7 to 9 / Track 16X136X1.2Track Ass'y 16''x136''x1.25''. Includes 7 to 9 / Track 16X136X1.2
-
8500003400 Guide Cleat. Track 16X136X1.7Guide Cleat. Track 16X136X1.7
-
8504152410 Guide. Track 16X136X1.2Guide. Track 16X136X1.2
-
9500003300 CleatCleat
-
10504151860 Bearing HousingBearing Housing
-
11501025000 FlangeFlange
-
12504152409 SensorSensor
-
13504152040 Magnetic AdaptorMagnetic Adaptor
-
14233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
15504152432 Counter ShaftCounter Shaft
-
16504152535 Ball BearingBall Bearing
-
17501026900 FlangeFlange
-
18207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
19417300252 SpacerSpacer
-
20417300265 SpacerSpacer
-
21504112000 ShimShim
-
22250000164 Carriage Bolt M10Carriage Bolt M10
-
22a250000165 Carriage Bolt M10Carriage Bolt M10
-
23504083800 SpacerSpacer
-
24504152524 SpacerSpacer
-
25293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
26504073700 WasherWasher
-
27504152308 Chain CaseChain Case
-
28293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
29233201414 Elastic Flanged Nut M10. Manuel StarterElastic Flanged Nut M10. Manuel Starter
-
29233201414 Elastic Flanged Nut M10. Electric StarterElastic Flanged Nut M10. Electric Starter
-
30293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
31732620001 Cylinder PinCylinder Pin
-
32230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
33232006414 Hex Nut M10Hex Nut M10
-
34504152245 Chain TensionerChain Tensioner
-
35504152323 Tensioner AxleTensioner Axle
-
36504080300 WasherWasher
-
37405403000 Needle BearingNeedle Bearing
-
38414531300 RollerRoller
-
39293370012 CirclipCirclip
-
40504152544 Oil SealOil Seal
-
41504152545 Oil SealOil Seal
-
42504152400 SpacerSpacer
-
43371901700 Circlip, InteriorCirclip, Interior
-
44293300109 O-ringO-ring
-
45504152006 Ball BearingBall Bearing
-
46504152418 Ball BearingBall Bearing
-
47504152398 ShimShim
-
48504084300 25 Teeth Sprocket, Large. Track 16X136X1.725 Teeth Sprocket, Large. Track 16X136X1.7
-
48504148400 27 Teeth Sprocket. Track 16X136X1.227 Teeth Sprocket. Track 16X136X1.2
-
49250100079 Hex Castle Nut 20 X 1.5Hex Castle Nut 20 X 1.5
-
50504152523 CapCap
-
51371006300 Pin CotterPin Cotter
-
52504152421 Large Drive chaineLarge Drive chaine
-
53504152441 Sprocket 49 TeethSprocket 49 Teeth
-
54415064300 Circlip, InteriorCirclip, Interior
-
55504152299 O-ringO-ring
-
56504152416 CoverCover
-
57207103044 Hex Screw M10 X 30Hex Screw M10 X 30
-
58210263080 Hex Forming Screw M6 X 30Hex Forming Screw M6 X 30
-
59504152322 Filler Cap Assy.Filler Cap Assy.
-
60414969400 O-RingO-Ring
-
61413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
62504151921 Plug 1/8''-27Plug 1/8''-27
-
63506150000 Washer 10 mmWasher 10 mm
-
64504152005 Ball BearingBall Bearing
-
65413711500 Synthetic GreaseSynthetic Grease
