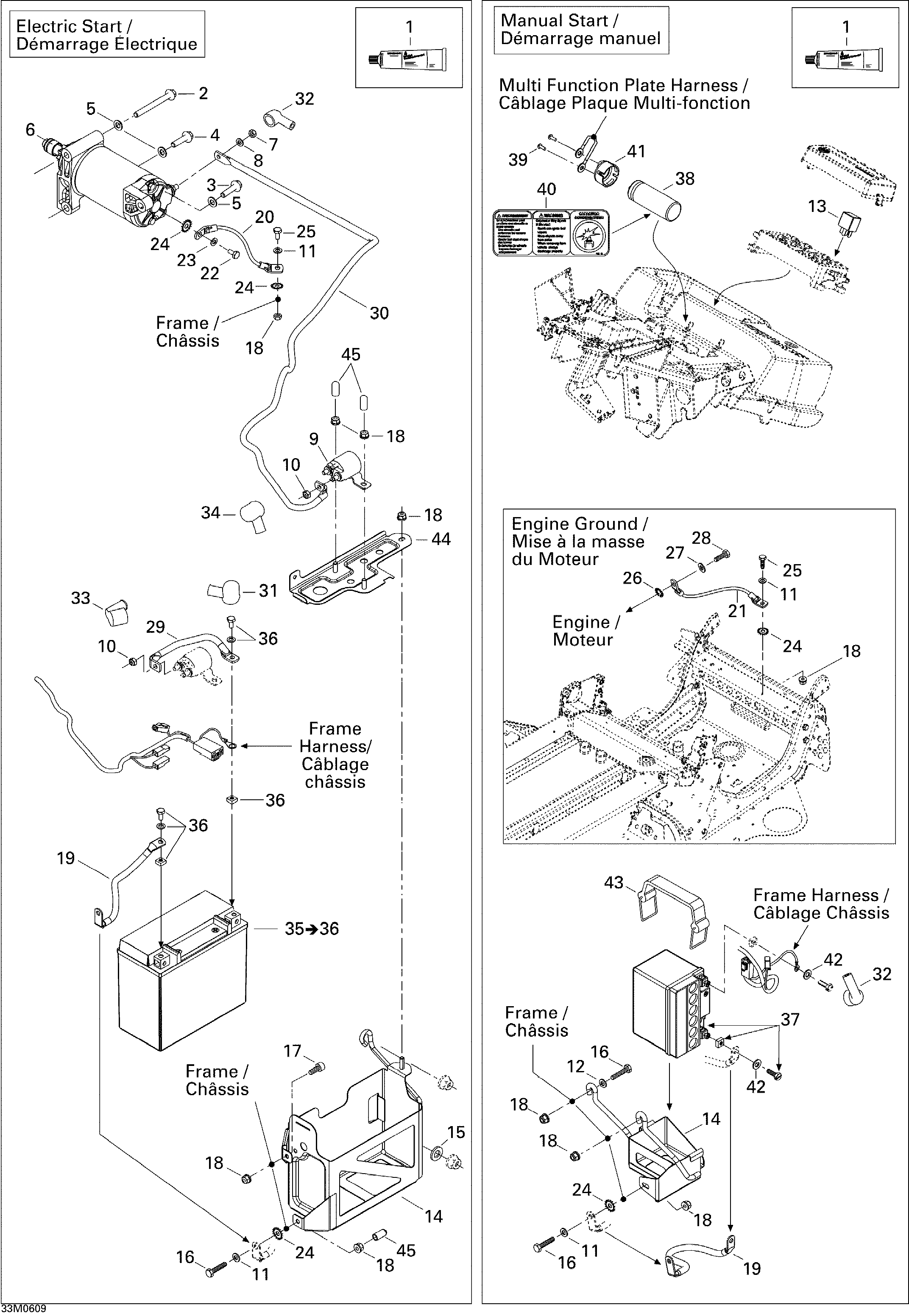

10- Electrical System для BRP Ski-Doo MX Z 1000 SDI Renegade X - 2006
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2207587544 Hex Flanged Screw M8 X 75, Scotch Grip. Electric StartHex Flanged Screw M8 X 75, Scotch Grip. Electric Start
-
3207583044 Hex Flanged Screw M8 X 30, Scotch Grip. Electric StartHex Flanged Screw M8 X 30, Scotch Grip. Electric Start
-
4207583044 Hex Flanged Screw M8 X 30, Scotch Grip. Electric StartHex Flanged Screw M8 X 30, Scotch Grip. Electric Start
-
5250200008 Flat Washer 8 mm. Electric StartFlat Washer 8 mm. Electric Start
-
6515176133 Electric Starter Ass'y. Electric StartElectric Starter Ass'y. Electric Start
-
7232561414 Elastic Stop Nut M6. Electric StartElastic Stop Nut M6. Electric Start
-
8234061410 Flat Washer M6. Electric StartFlat Washer M6. Electric Start
-
9515176011 Starter Relay. Electric StartStarter Relay. Electric Start
-
10232561414 Elastic Stop Nut M6. Electric StartElastic Stop Nut M6. Electric Start
-
11234061410 Flat Washer M6Flat Washer M6
-
12224061121 Flat Washer. Manual StartFlat Washer. Manual Start
-
13410113604 Relay. Manual StartRelay. Manual Start
-
14515176048 Battery Support. Electric StartBattery Support. Electric Start
-
14515176142 Battery Support. Manual StartBattery Support. Manual Start
-
15506151251 Washer. Electric StartWasher. Electric Start
-
16207162544 Hex Screw M6 X 25. Manual StartHex Screw M6 X 25. Manual Start
-
16207162544 Hex Screw M6 X 25. Electric StartHex Screw M6 X 25. Electric Start
-
17205061644 Socket Head Screw M6 X 16. Electric StartSocket Head Screw M6 X 16. Electric Start
-
18233261414 Elastic Flanged Nut M6. Manual StartElastic Flanged Nut M6. Manual Start
-
18233261414 Elastic Flanged Nut M6. Electric StartElastic Flanged Nut M6. Electric Start
-
19515176172 Ground WireGround Wire
-
20515176277 Ground Wire. Electric StartGround Wire. Electric Start
-
21515176276 Battery Assisted Ground Cable. Manual StartBattery Assisted Ground Cable. Manual Start
-
22207361644 Hex Screw M6 X 16, Scotch Grip. Electric StartHex Screw M6 X 16, Scotch Grip. Electric Start
-
23234061410 Flat Washer M6. Electric StartFlat Washer M6. Electric Start
-
24250200041 Serrated Lock Washer 6 mm. Electric StartSerrated Lock Washer 6 mm. Electric Start
-
24250200041 Serrated Lock Washer 6 mm. Manual StartSerrated Lock Washer 6 mm. Manual Start
-
25207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
26234481608 Serrated Lock Washer 8 mm. Manual StartSerrated Lock Washer 8 mm. Manual Start
-
27234081410 Flat Washer 8 mm. Manual StartFlat Washer 8 mm. Manual Start
-
28207181644 Hex. Screw M8 X 16. Manual StartHex. Screw M8 X 16. Manual Start
-
29515175904 Battery Wire. Electric StartBattery Wire. Electric Start
-
30515176259 Battery Wire. Electric StartBattery Wire. Electric Start
-
31570151000 Protection Cap. Electric StartProtection Cap. Electric Start
-
32278001771 Protector CapProtector Cap
-
33570064200 Protection Cap. Electric StartProtection Cap. Electric Start
-
34515175919 Protector Cap. Electric StartProtector Cap. Electric Start
-
35410301203 Battery, 18 Amperes. Electric Start, Includes 35 To 36Battery, 18 Amperes. Electric Start, Includes 35 To 36
-
36295500849 Battery Fastener Kit. Electric StartBattery Fastener Kit. Electric Start
-
37410301204 Battery With Fasteners, 3 Amperes. Manual StartBattery With Fasteners, 3 Amperes. Manual Start
-
38515176387 Capacitor. Manual StartCapacitor. Manual Start
-
39515176257 Mechanical Screw. Manual StartMechanical Screw. Manual Start
-
40516002976 Capacitor Decal. Manual StartCapacitor Decal. Manual Start
-
41515176211 Cap. Manual StartCap. Manual Start
-
42234051410 Flat Washer. Manual StartFlat Washer. Manual Start
-
43515175475 Battery Strap. Manual StartBattery Strap. Manual Start
-
44515175735 Battery Strip. Electric StartBattery Strip. Electric Start
-
45515176141 Cap. Electric StartCap. Electric Start
