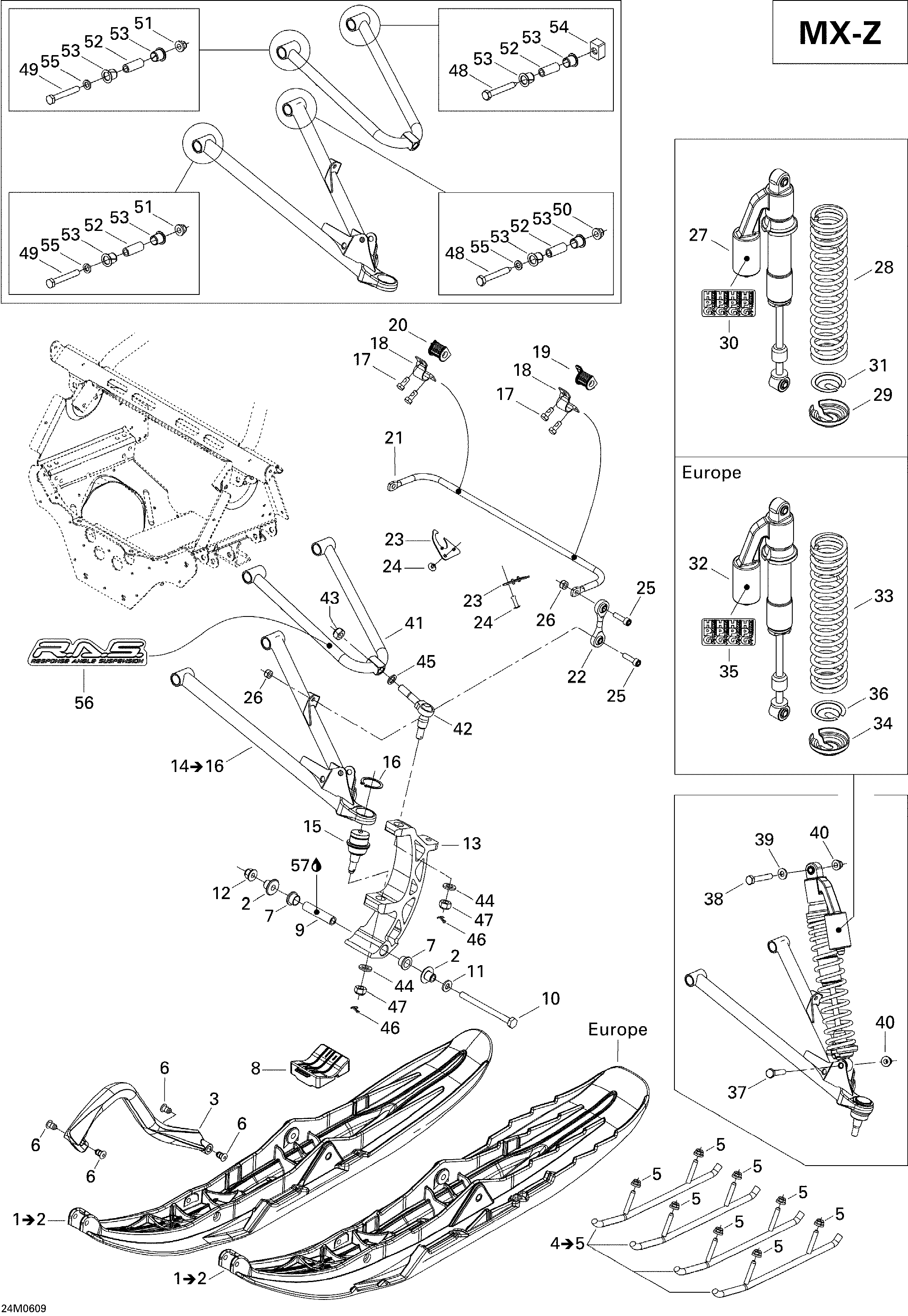

07- Front Suspension And Ski для BRP Ski-Doo MX Z 1000 SDI Renegade X - 2006
-
№АртикулНазвание
-
1505071790 RH Pilot Ski Ass'y, Black. Includes 1 to 2RH Pilot Ski Ass'y, Black. Includes 1 to 2
-
1505071791 LH Pilot Ski Ass'y, Black. Includes 1 to 2LH Pilot Ski Ass'y, Black. Includes 1 to 2
-
1505071775 RH Pilot Ski Ass'y, Black. Europe, Includes 1 to 2RH Pilot Ski Ass'y, Black. Europe, Includes 1 to 2
-
1505071777 LH Pilot Ski Ass'y, Black. Europe, Includes 1 to 2LH Pilot Ski Ass'y, Black. Europe, Includes 1 to 2
-
2505071781 CushionCushion
-
3505070917 Handle, YellowHandle, Yellow
-
4860511400 Carbide Runner Kit. Includes 4 to 5Carbide Runner Kit. Includes 4 to 5
-
4860511800 Square Carbide Runner Kit. Europe, Includes 4 to 5Square Carbide Runner Kit. Europe, Includes 4 to 5
-
5233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
6505071812 RetainerRetainer
-
7505070954 CushionCushion
-
8505071779 Ski StopperSki Stopper
-
9506133300 SpacerSpacer
-
10230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
11732900049 WasherWasher
-
12732610084 Hex Flanged Nut M10Hex Flanged Nut M10
-
13505071232 Ski LegSki Leg
-
14860512300 RH Lower Arm. Includes 14 to 16RH Lower Arm. Includes 14 to 16
-
14860512200 LH Lower Arm. Includes 14 to 16LH Lower Arm. Includes 14 to 16
-
15505071891 Ball JointBall Joint
-
16293370035 CirclipCirclip
-
17250000118 Hex Screw With NylonHex Screw With Nylon
-
18506095800 ClampClamp
-
19505071475 LH Torsion Bar BushingLH Torsion Bar Bushing
-
20505071476 RH Torsion Bar BushingRH Torsion Bar Bushing
-
21505071477 StabilisatorStabilisator
-
22505071479 Ball JointBall Joint
-
23505071253 PlugPlug
-
24293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
25205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
26232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
27505071204 RH Front ShockRH Front Shock
-
27505071205 LH Front ShockLH Front Shock
-
28505071947 Spring, White-black-greenSpring, White-black-green
-
29503140600 Spring StopperSpring Stopper
-
30516002748 Shock DecalShock Decal
-
31503141600 CapCap
-
32505071949 RH Front Shock. EuropeRH Front Shock. Europe
-
32505071950 LH Front Shock. EuropeLH Front Shock. Europe
-
33505071947 Spring, White-black-green. EuropeSpring, White-black-green. Europe
-
34503140600 Spring Stopper. EuropeSpring Stopper. Europe
-
35516002748 Shock Decal. EuropeShock Decal. Europe
-
36503141600 Cap. EuropeCap. Europe
-
37207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
38207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
39503189564 WasherWasher
-
40233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
41505071756 Upper ArmUpper Arm
-
42505071863 Upper Ball JointUpper Ball Joint
-
43250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
44234021410 Flat Washer 12 mmFlat Washer 12 mm
-
45503189276 WasherWasher
-
46211400017 Cotter PinCotter Pin
-
47250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
48250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
49250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
50250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
51250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
52505070567 BushingBushing
-
53505070566 Arm BushingArm Bushing
-
54505071695 Rectangular NutRectangular Nut
-
55503189564 WasherWasher
-
56516002747 R.a.s. Suspension DecalR.a.s. Suspension Decal
-
57219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
