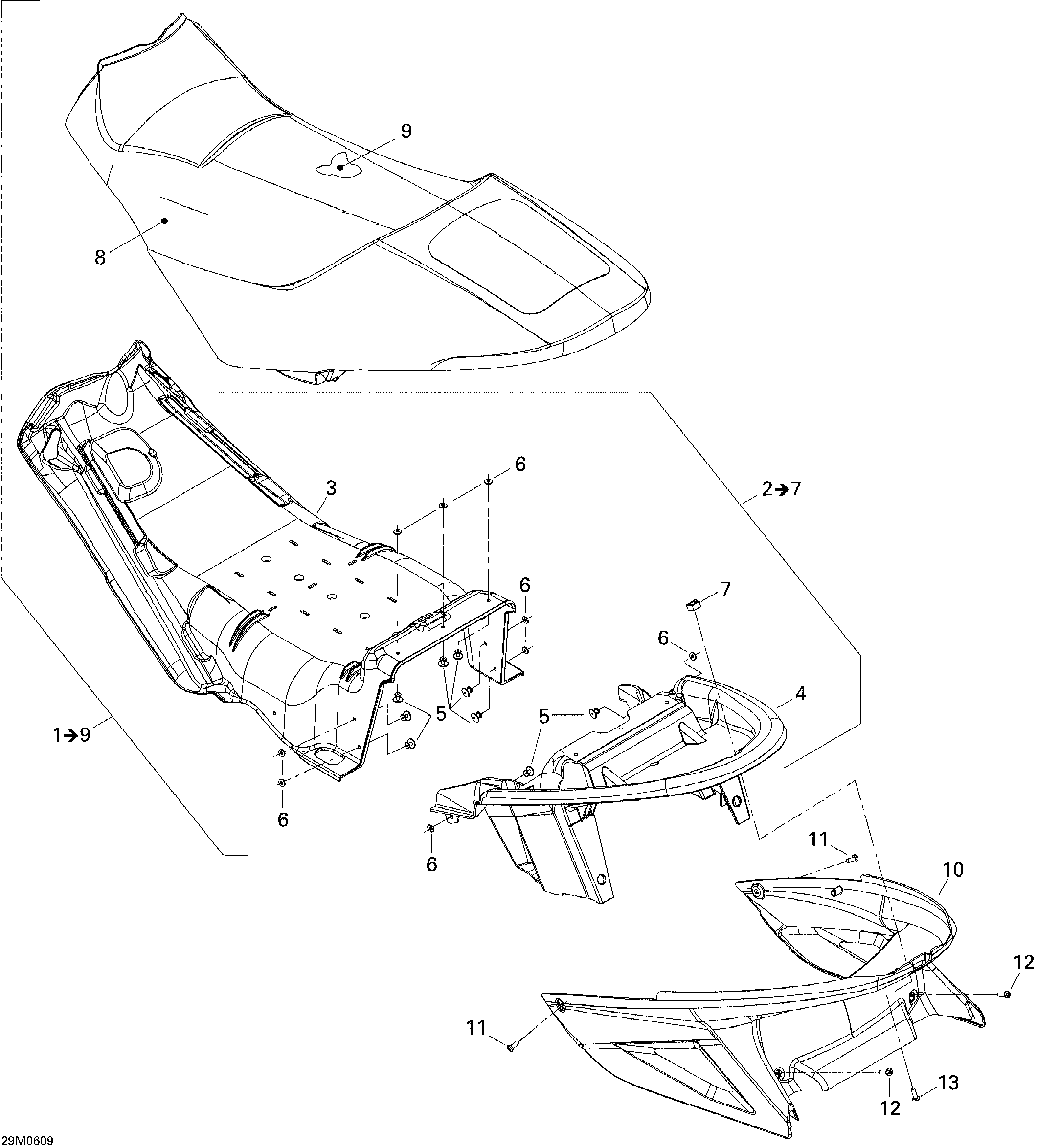

09- Seat для BRP Ski-Doo MX Z 1000 SDI Renegade X - 2006
-
№АртикулНазвание
-
2510004582 Seat Base Ass'y. Includes 2 to 7Seat Base Ass'y. Includes 2 to 7
-
5390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517225900 Flat WasherFlat Washer
-
7708000046 Nut Housing Ass'y, M6Nut Housing Ass'y, M6
-
8510004652 Seat Cover. Black, B-160Seat Cover. Black, B-160
-
8510004653 Seat Cover. Jaune, B-190Seat Cover. Jaune, B-190
-
9510004216 Seat FoamSeat Foam
-
10510004628 Trunk, Black B-160Trunk, Black B-160
-
10510004629 Trunk, Yellow, B-190Trunk, Yellow, B-190
-
11250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
12250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
13250000129 Torx Screw M6 X 16Torx Screw M6 X 16
