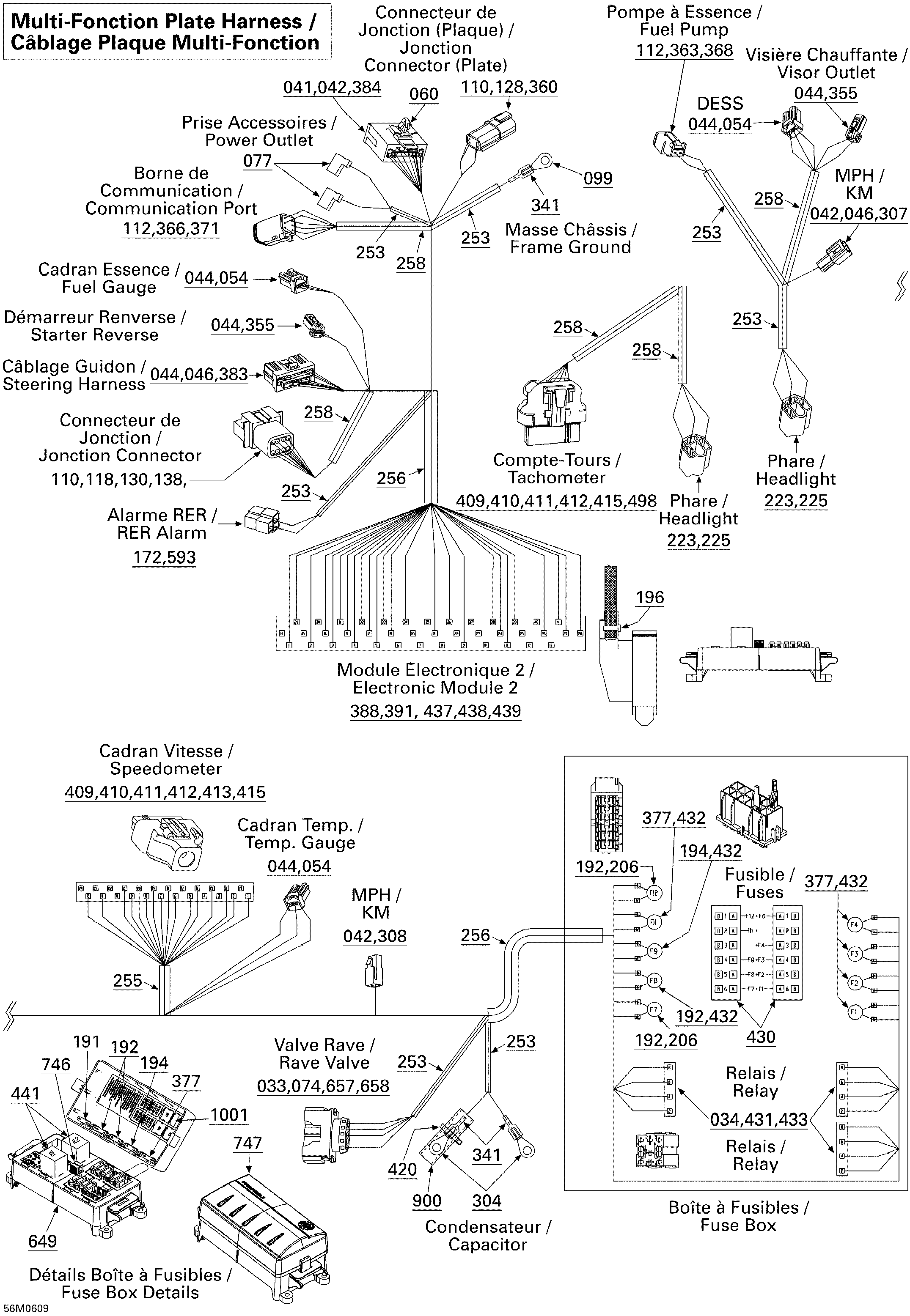

10- Multi Function Plate Harness для BRP Ski-Doo MX Z 1000 SDI Renegade X - 2006
-
№АртикулНазвание
-
1515176379 Multi-function Plate Harness. Includes 1 to 1001Multi-function Plate Harness. Includes 1 to 1001
-
33278000999 SealSeal
-
34409010100 Female TerminalFemale Terminal
-
41515175232 Male TerminalMale Terminal
-
42515175273 Male TerminalMale Terminal
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
54515175495 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
60515175283 Housing SupportHousing Support
-
74409013700 PlugPlug
-
77409010300 Female TerminalFemale Terminal
-
99278000992 Ring TerminalRing Terminal
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
118278001742 Male Terminal Housing (8 Circuits)Male Terminal Housing (8 Circuits)
-
128278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
130515175276 Lock Male (8 Circuits)Lock Male (8 Circuits)
-
138293000052 Sealing CapSealing Cap
-
172561503100 Female TerminalFemale Terminal
-
191410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
192409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
194278001197 Fuse 10 AmperesFuse 10 Amperes
-
196293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
206409004200 Female TerminalFemale Terminal
-
223515175320 Female TerminalFemale Terminal
-
225409202700 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
253515175442 Tubing, 6 mmTubing, 6 mm
-
255409901800 Tubing, 13 mmTubing, 13 mm
-
256415080000 Tubing, 16 mmTubing, 16 mm
-
257409901600 Tubing, 19 mmTubing, 19 mm
-
258415079900 Tubing, 10 mmTubing, 10 mm
-
304515175504 Ring TerminalRing Terminal
-
307515175509 Male Terminal Housing, 1 CircuitMale Terminal Housing, 1 Circuit
-
308515175510 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
355515175658 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
360278000635 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
363515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
366515175673 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
368515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
371515175678 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
377278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
383515175719 Female Terminal Housing, 11 CircuitsFemale Terminal Housing, 11 Circuits
-
384515175720 Male Terminal Housing, 11 CircuitsMale Terminal Housing, 11 Circuits
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
388278001750 Female TerminalFemale Terminal
-
391278001751 Female Terminal Housing, 41 CircuitsFemale Terminal Housing, 41 Circuits
-
409515175812 PlugPlug
-
410515175801 Female Terminal Housing, 24 CircuitsFemale Terminal Housing, 24 Circuits
-
411515175802 RetainerRetainer
-
412515175803 Wire SealWire Seal
-
413515175804 BlockBlock
-
415515175806 Female TerminalFemale Terminal
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
430515175857 Fuse HolderFuse Holder
-
431515175856 Relay HolderRelay Holder
-
432515175855 Female TerminalFemale Terminal
-
433515175854 Female TerminalFemale Terminal
-
437515175886 SealSeal
-
438515175883 LatchLatch
-
439515175884 LockLock
-
440515175885 CoverCover
-
441410113604 RelayRelay
-
498710000399 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
593515176069 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
649515176065 Fuse Box BaseFuse Box Base
-
657515176238 Male Housing, 5 CircuitsMale Housing, 5 Circuits
-
658515176239 Female TerminalFemale Terminal
-
746515175811 Fuse ToolFuse Tool
-
747515176066 CoverCover
-
900415079200 HoseHose
-
1001516002640 Fuse DecalFuse Decal
