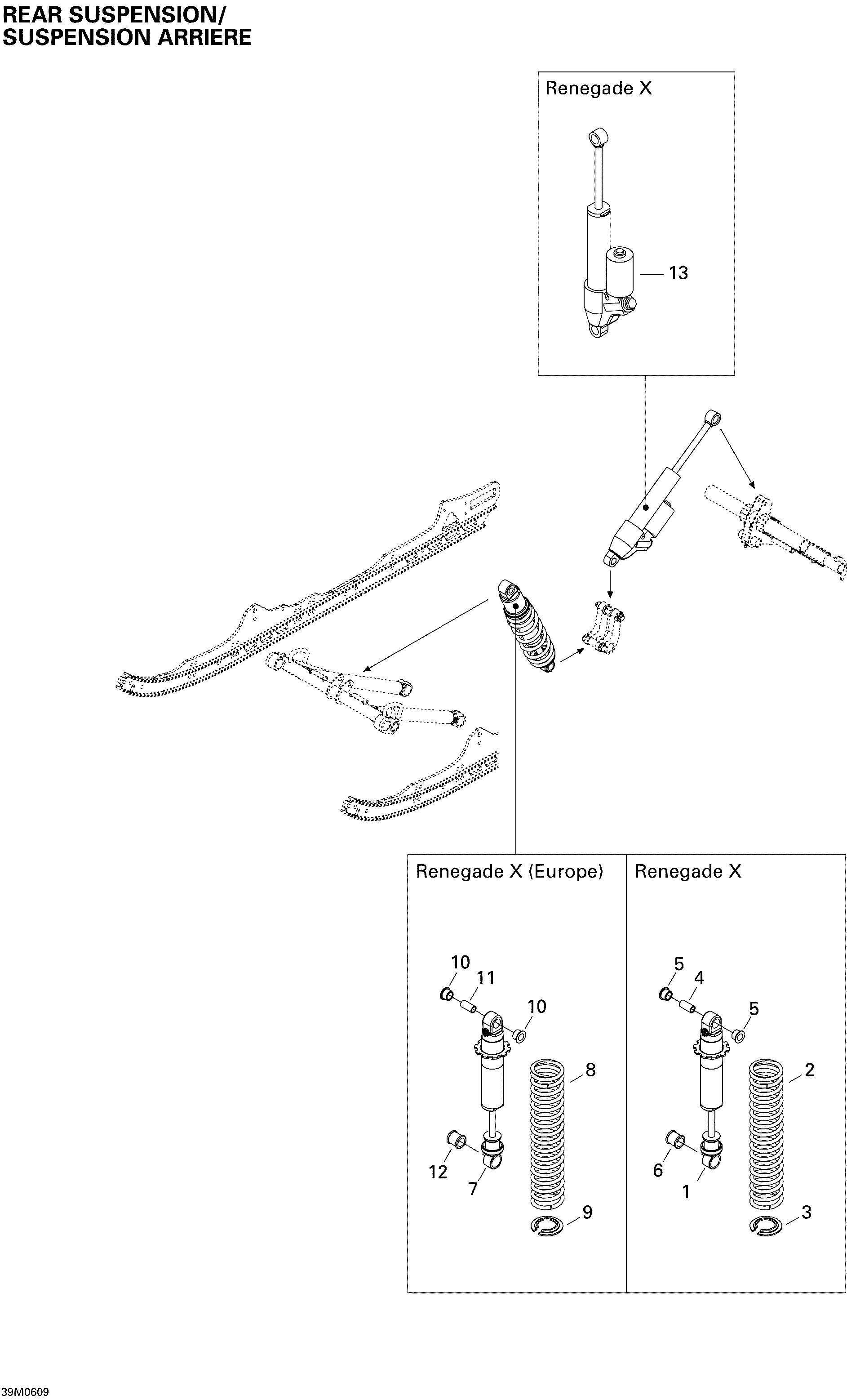

08- Rear Suspension Shocks для BRP Ski-Doo MX Z 1000 SDI Renegade X - 2006
-
№АртикулНазвание
-
1503191203 Center Shock. Renegade XCenter Shock. Renegade X
-
2503189325 Spring. Renegade XSpring. Renegade X
-
3503189912 Spring Stopper. Renegade XSpring Stopper. Renegade X
-
4503189117 Cushion. Renegade XCushion. Renegade X
-
5503189282 Bushing. Renegade XBushing. Renegade X
-
6503189271 Cushion. Renegade XCushion. Renegade X
-
7503191220 Center Shock. Renegade X (Europe)Center Shock. Renegade X (Europe)
-
8503189325 Spring. Renegade X (Europe)Spring. Renegade X (Europe)
-
9503189912 Spring Stopper. Renegade X (Europe)Spring Stopper. Renegade X (Europe)
-
10503189117 Cushion. Renegade X (Europe)Cushion. Renegade X (Europe)
-
11503189282 Bushing. Renegade X (Europe)Bushing. Renegade X (Europe)
-
12503189271 Cushion. Renegade X (Europe)Cushion. Renegade X (Europe)
-
13503190729 Rear Shock. Renegade XRear Shock. Renegade X
