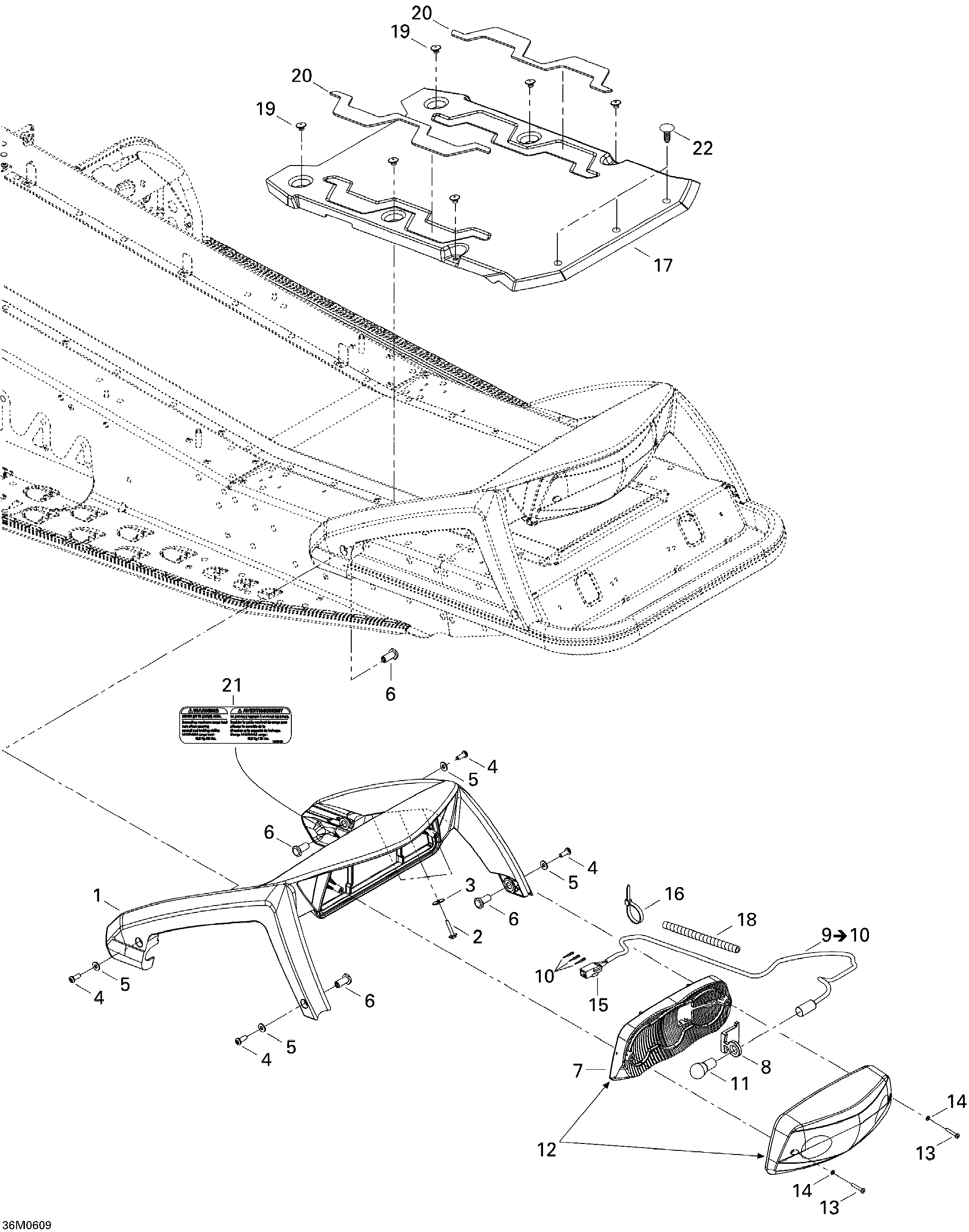

09- Luggage Rack для BRP Ski-Doo MX Z 1000 SDI Renegade X - 2006
-
№АртикулНазвание
-
1511000425 Luggage RackLuggage Rack
-
2250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
3250200040 Flat WasherFlat Washer
-
4250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
5250200039 Flat WasherFlat Washer
-
6511000398 InsertInsert
-
7510004442 ReflectorReflector
-
8511000431 Bulb SupportBulb Support
-
9511000466 Bulb Socket. Includes 9 to 10Bulb Socket. Includes 9 to 10
-
10515175232 Male TerminalMale Terminal
-
11410504100 Tail Lamp BulbTail Lamp Bulb
-
12861509300 Lens And Reflector Kit. Includes itrem 7Lens And Reflector Kit. Includes itrem 7
-
13209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
14414516400 WasherWasher
-
15515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
16293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
17511000436 Radiator CoverRadiator Cover
-
18515175442 Tubing, 6 mmTubing, 6 mm
-
19293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
20511000396 CarpetCarpet
-
21516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
22293730006 Black DartBlack Dart
