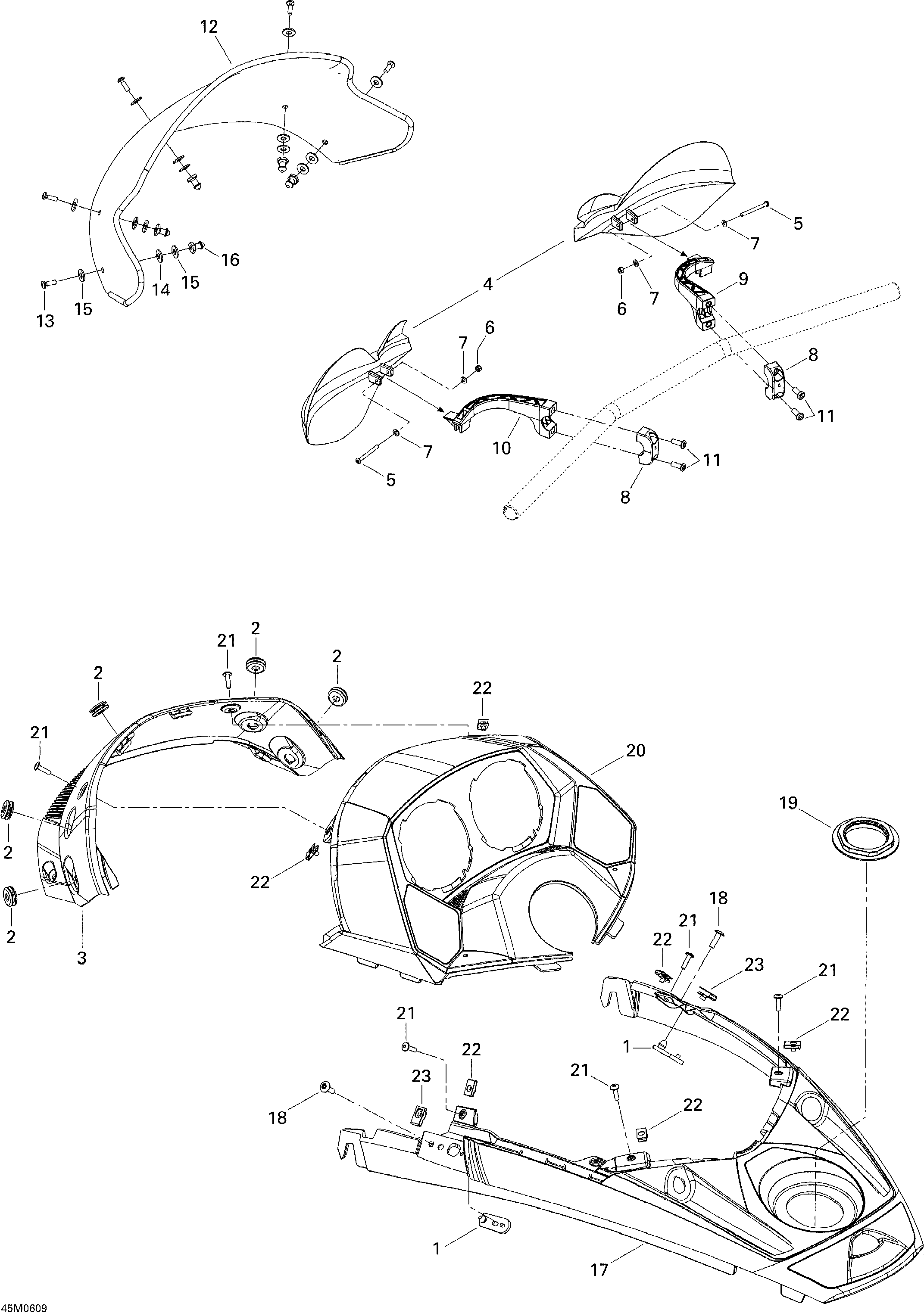

09- Windshield And Console для BRP Ski-Doo MX Z 1000 SDI Renegade X - 2006
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2517302841 GrommetGrommet
-
3517303219 Indicator Support DoorIndicator Support Door
-
4415128768 Air Deflector Kit, YellowAir Deflector Kit, Yellow
-
5205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
6232541484 Elastic Stop Nut M6Elastic Stop Nut M6
-
7234041480 Flat Washer 4 mmFlat Washer 4 mm
-
8517303264 U-ClampU-Clamp
-
9517303590 RH Deflector SupportRH Deflector Support
-
10517303591 LH Deflector SupportLH Deflector Support
-
11250000172 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
12517303542 Extra Low WindshieldExtra Low Windshield
-
13250000146 Torx Screw K50 X 16Torx Screw K50 X 16
-
14250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
15250200025 Washer 5 mmWasher 5 mm
-
16517303439 KnobKnob
-
17517303208 Center ConsoleCenter Console
-
18250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
19517302575 Console NutConsole Nut
-
20517303547 Indicator SupportIndicator Support
-
21250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
22250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
23250000048 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
