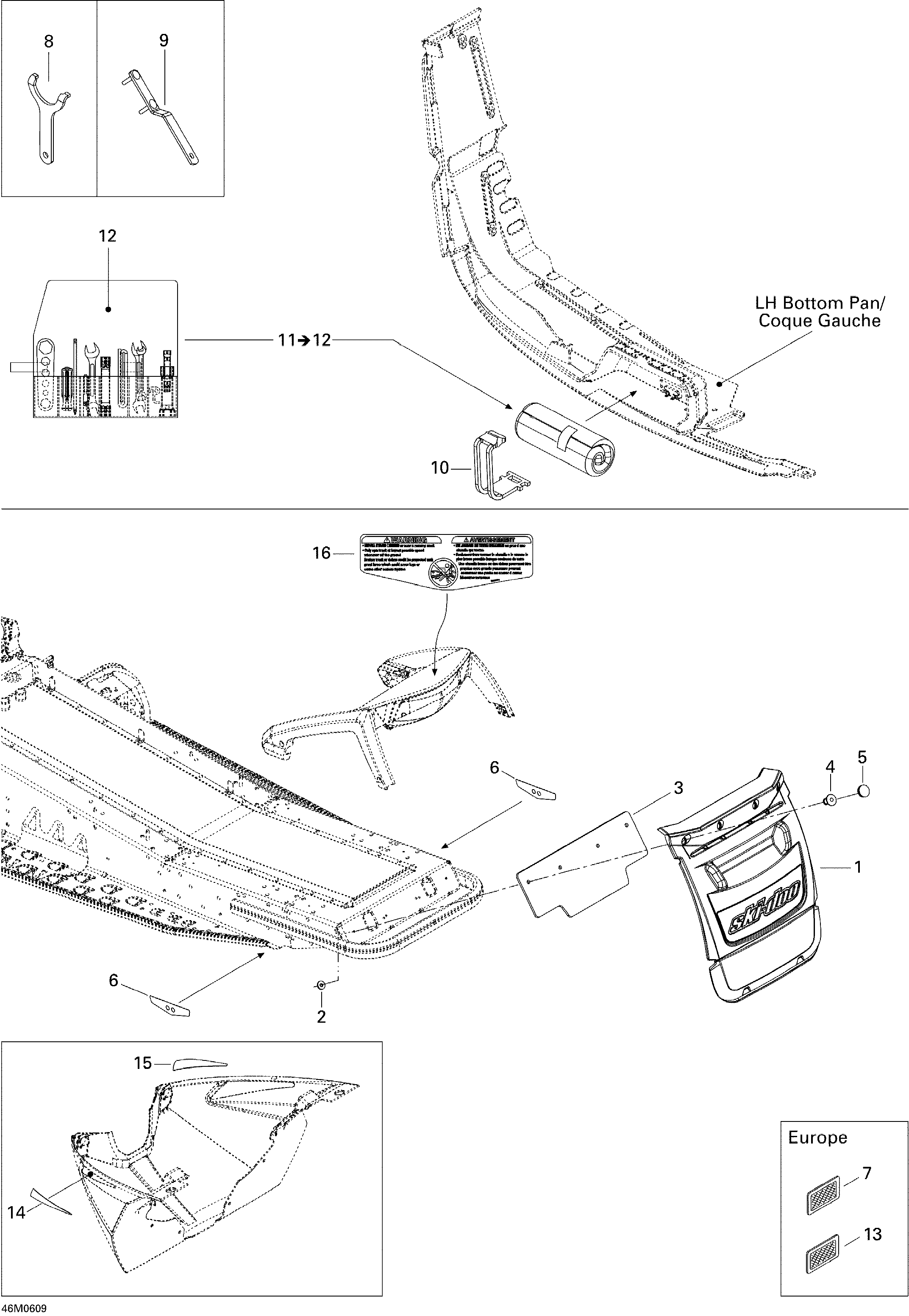

09- Utilities для BRP Ski-Doo MX Z 1000 SDI Renegade X - 2006
-
№АртикулНазвание
-
1520000446 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000488 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6520000382 Rear ReflectorRear Reflector
-
6520000383 Rear Reflector. EuropeRear Reflector. Europe
-
7520000271 Reflector Amber, Europe. EuropeReflector Amber, Europe. Europe
-
8529035582 Adjustment WrenchAdjustment Wrench
-
9520000126 Adjustment WrenchAdjustment Wrench
-
10520000528 LatchLatch
-
11529035596 Tool KitTool Kit
-
12520000047 Tool BagTool Bag
-
13415037900 White Reflector, Europe. EuropeWhite Reflector, Europe. Europe
-
14520000468 LH Front ReflectorLH Front Reflector
-
15520000469 RH Front ReflectorRH Front Reflector
-
16516003034 Warning Label, Track SecurityWarning Label, Track Security
