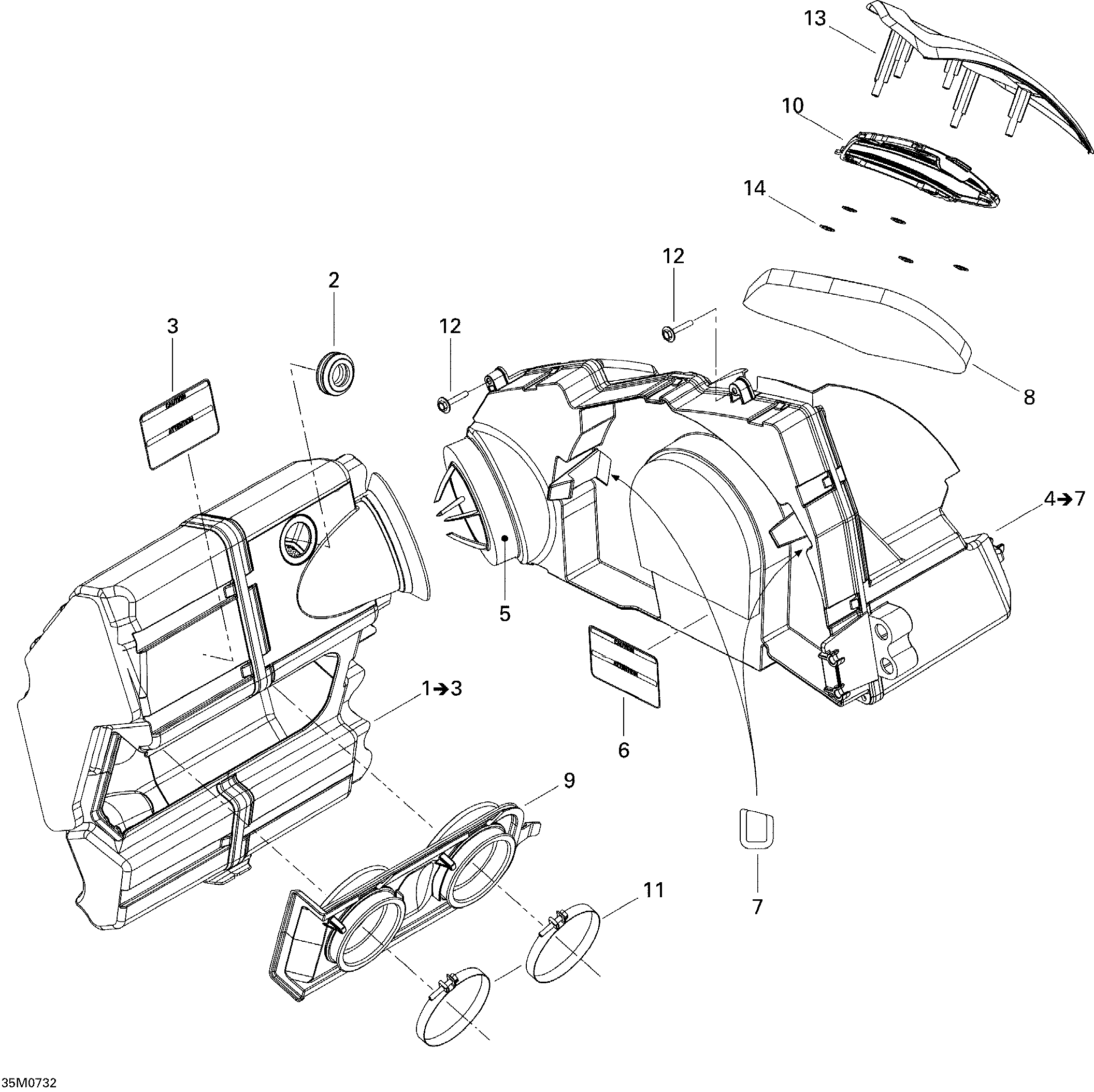

02- Air Intake System для BRP Ski-Doo Summit Highmark & Highmark X 1000 SDI - 2007
-
№АртикулНазвание
-
1508000354 Primary Chamber Ass'yPrimary Chamber Ass'y
-
2570065500 GrommetGrommet
-
3516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
4508000519 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
5508000520 FoamFoam
-
6516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
7516001910 RH Protector DecalRH Protector Decal
-
7516001911 LH Protector DecalLH Protector Decal
-
8508000367 Air FilterAir Filter
-
9508000451 Adaptor Plate Ass'yAdaptor Plate Ass'y
-
10508000506 Intake FilterIntake Filter
-
11508000346 Gemi ClampGemi Clamp
-
12250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
13508000461 DeflectorDeflector
-
14732610072 Push NutPush Nut
