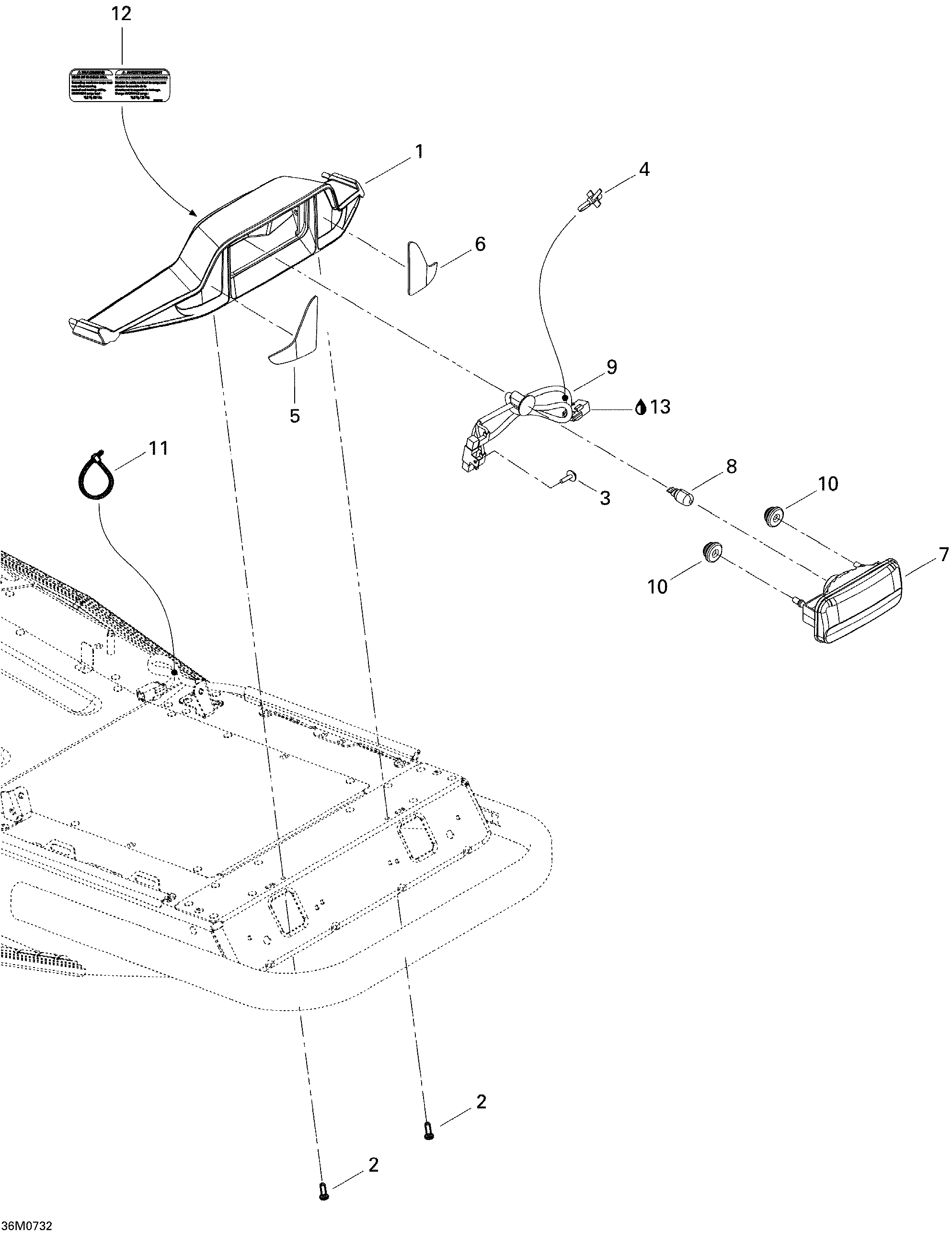

09- Luggage Rack для BRP Ski-Doo Summit Highmark & Highmark X 1000 SDI - 2007
-
№АртикулНазвание
-
1511000510 Light SupportLight Support
-
2250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
3250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
4293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
5511000459 Rear ReflectorRear Reflector
-
6511000460 Rear ReflectorRear Reflector
-
7710000652 Rear Lens BoxRear Lens Box
-
8710000653 BulbBulb
-
9511000508 Wiring HarnessWiring Harness
-
10705001119 WasherWasher
-
11293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
12516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
13293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
