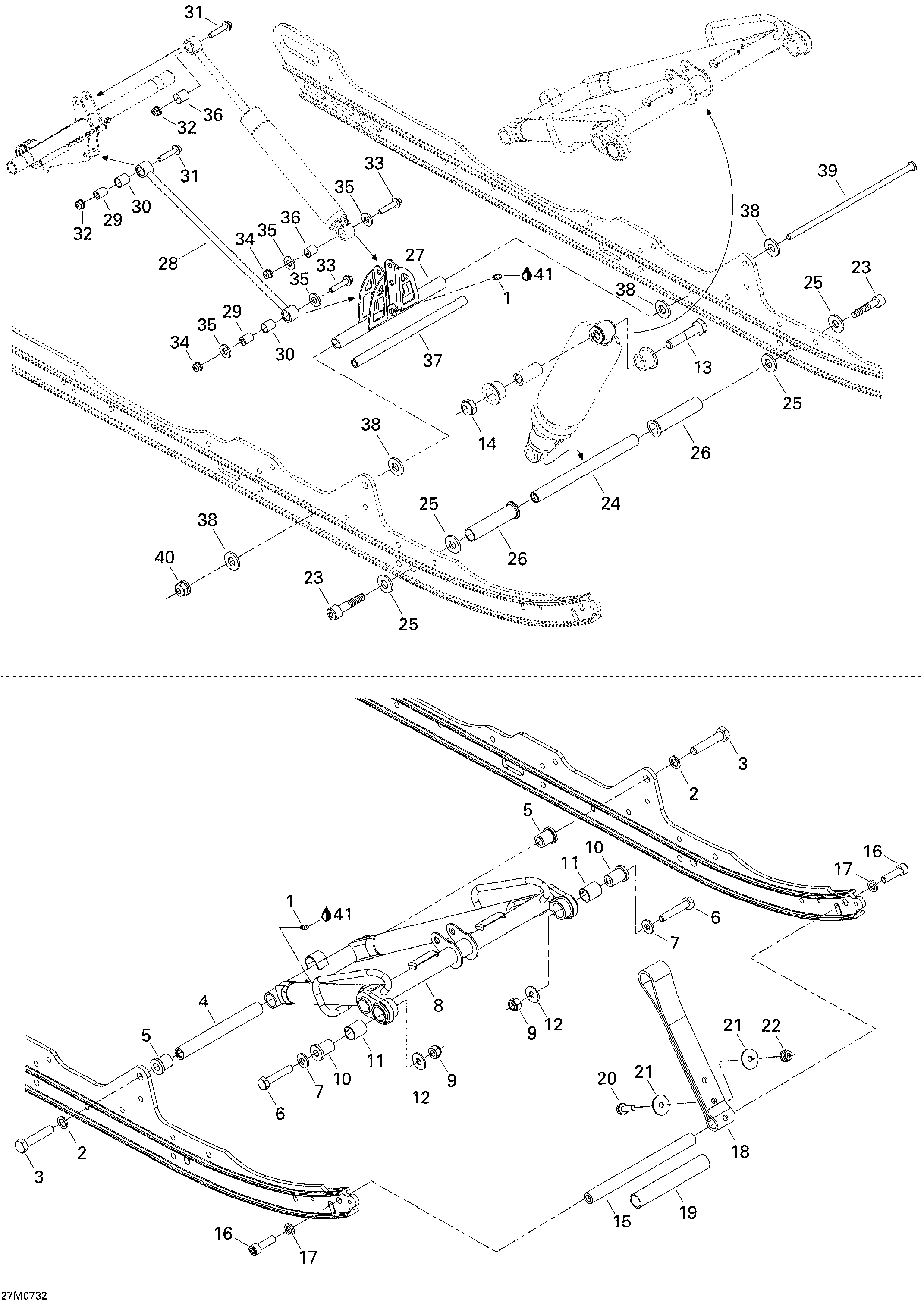

08- Front Arm для BRP Ski-Doo Summit Highmark & Highmark X 1000 SDI - 2007
-
№АртикулНазвание
-
1408200700 Grease FittingGrease Fitting
-
2503189276 WasherWasher
-
3207226044 Hex Screw M12 X 60, Scotch GripHex Screw M12 X 60, Scotch Grip
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
7732900049 WasherWasher
-
8503191142 Front ArmFront Arm
-
9233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
10503190373 ExtensionExtension
-
11503190474 Extended BushingExtended Bushing
-
12506151251 WasherWasher
-
13207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
14232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
15503191260 Axle StrapAxle Strap
-
16205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
17503189564 WasherWasher
-
18503191365 Stopper StrapStopper Strap
-
19503191448 SpacerSpacer
-
20207683044 Hex Flanged Screw M8 X 30Hex Flanged Screw M8 X 30
-
21224081301 Flat WasherFlat Washer
-
22233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
23205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
24503191258 Center Shock ShaftCenter Shock Shaft
-
25503189276 WasherWasher
-
26503191259 Center BushingCenter Bushing
-
27503189545 Pivot Arm, BlackPivot Arm, Black
-
28503189547 Throttle RodThrottle Rod
-
29503189133 Rod AxleRod Axle
-
30503189625 CushionCushion
-
31207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
32250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
33207084044 Hex Screw M8 X 40Hex Screw M8 X 40
-
34232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
35503191564 WasherWasher
-
36414936000 CushionCushion
-
37503189156 Pivot Arm AxlePivot Arm Axle
-
38503189157 WasherWasher
-
39732601198 Long Bolt M8Long Bolt M8
-
40250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
41219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
