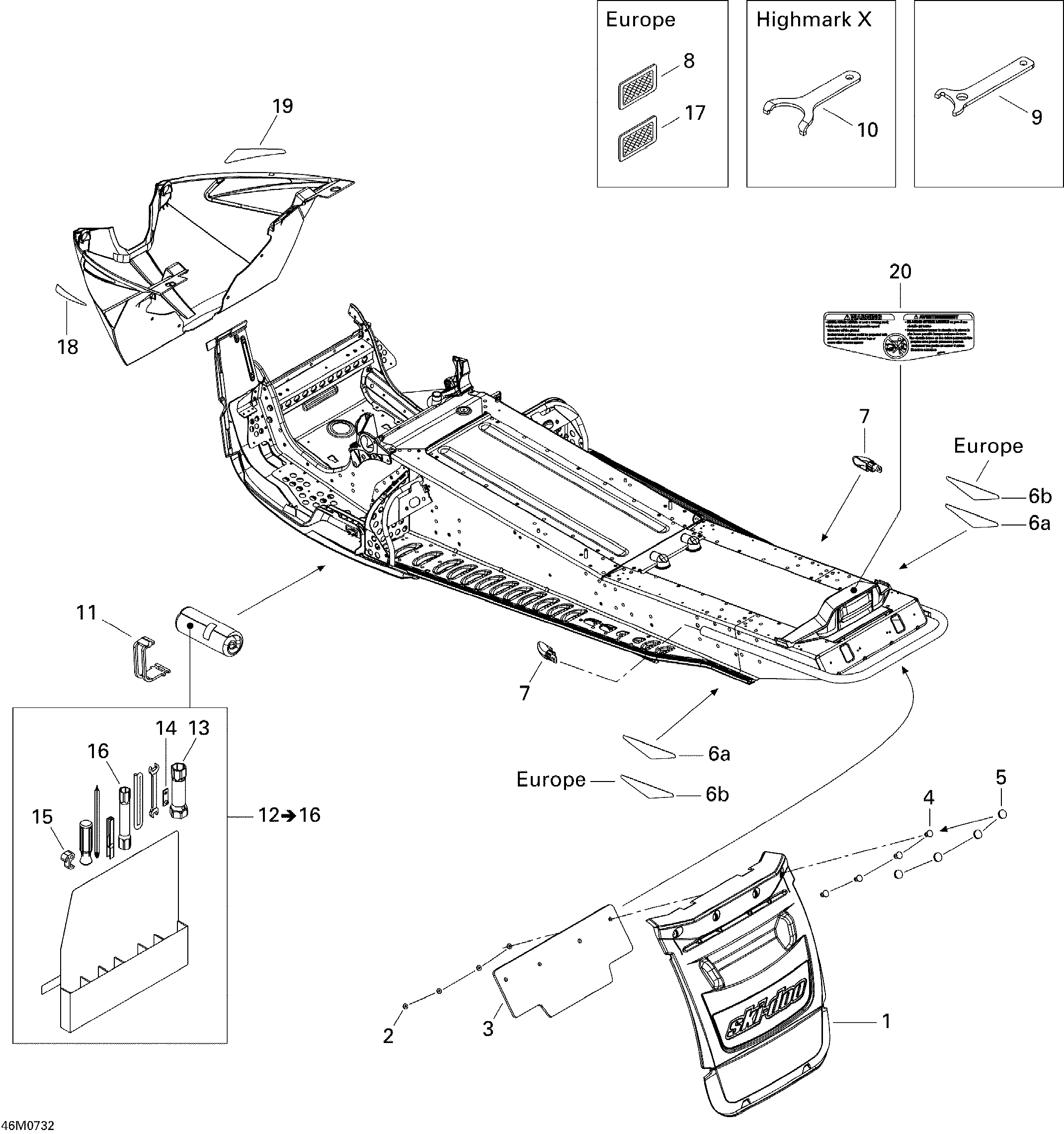

09- Utilities для BRP Ski-Doo Summit Highmark & Highmark X 1000 SDI - 2007
-
№АртикулНазвание
-
1520000495 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000488 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6a520000237 Rear Reflector, RedRear Reflector, Red
-
6b520000311 Rear Reflector, Amber. EuropeRear Reflector, Amber. Europe
-
7520000272 CapCap
-
8520000271 Reflector Amber, Europe. EuropeReflector Amber, Europe. Europe
-
9529032900 Adjustment WrenchAdjustment Wrench
-
10529035582 Adjustment Wrench. Highmark XAdjustment Wrench. Highmark X
-
11520000528 LatchLatch
-
12529000025 Tool Kit. Includes 12 to 16Tool Kit. Includes 12 to 16
-
13529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
14529024400 Rope AdaptorRope Adaptor
-
15529019400 Starter GripStarter Grip
-
16295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
17415037900 White Reflector, Europe. EuropeWhite Reflector, Europe. Europe
-
18520000468 LH Front ReflectorLH Front Reflector
-
19520000469 RH Front ReflectorRH Front Reflector
-
20516003034 Warning Label, Track SecurityWarning Label, Track Security
