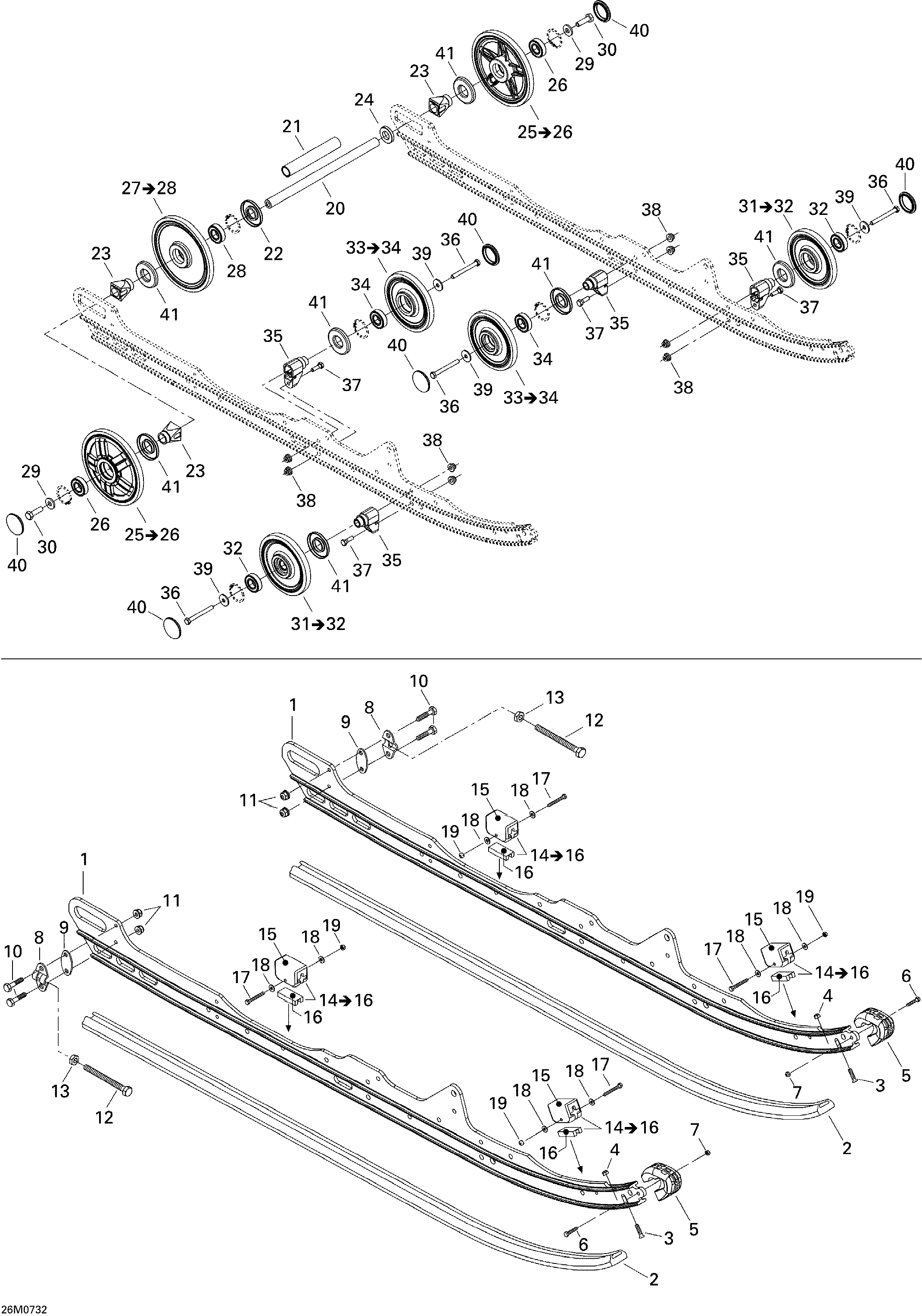

08- Rear Suspension для BRP Ski-Doo Summit Highmark & Highmark X 1000 SDI - 2007
-
№АртикулНазвание
-
1503190818 Runner 162Runner 162
-
1503191050 Runner 151''Runner 151''
-
2503190368 Rail 151'', BlackRail 151'', Black
-
2503190383 Rail 151'', YellowRail 151'', Yellow
-
2503190866 Shoe Slider 162'', BlackShoe Slider 162'', Black
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207652544 Hex Flange Screw M5 X 25Hex Flange Screw M5 X 25
-
7233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
8503155300 TensionerTensioner
-
9503189160 Tensioner SpacerTensioner Spacer
-
10207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
11233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
12230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
13233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
14503190905 Rubber Stopper Ass'y. Includes 14 to 16Rubber Stopper Ass'y. Includes 14 to 16
-
15570063000 Rubber StopperRubber Stopper
-
16572084800 Reinforcement StopperReinforcement Stopper
-
17207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
18391301700 WasherWasher
-
19232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
20503190429 Rear AxleRear Axle
-
21503190430 Rear Long SpacerRear Long Spacer
-
22503190682 Labyrinth SealLabyrinth Seal
-
23503190428 Rear Wheel SpacerRear Wheel Spacer
-
24503190432 WasherWasher
-
25503191559 Wheel 180, Black. Includes 25 to 26Wheel 180, Black. Includes 25 to 26
-
26503190396 Ball BearingBall Bearing
-
27503190395 Wheel 180. Includes 27 to 28Wheel 180. Includes 27 to 28
-
28503190396 Ball BearingBall Bearing
-
29503190439 WasherWasher
-
30250000019 Hex Screw With NylonHex Screw With Nylon
-
31503191311 Wheel 147 Ass'y. Includes 31 to 32Wheel 147 Ass'y. Includes 31 to 32
-
32503190396 Ball BearingBall Bearing
-
33503191311 Wheel 147 Ass'y. Includes 33 to 34Wheel 147 Ass'y. Includes 33 to 34
-
34503190396 Ball BearingBall Bearing
-
35503190580 SupportSupport
-
36207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
37207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
38233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
39211200041 WasherWasher
-
40570063600 Wheel CapWheel Cap
-
41503190434 Labyrinth SealLabyrinth Seal
