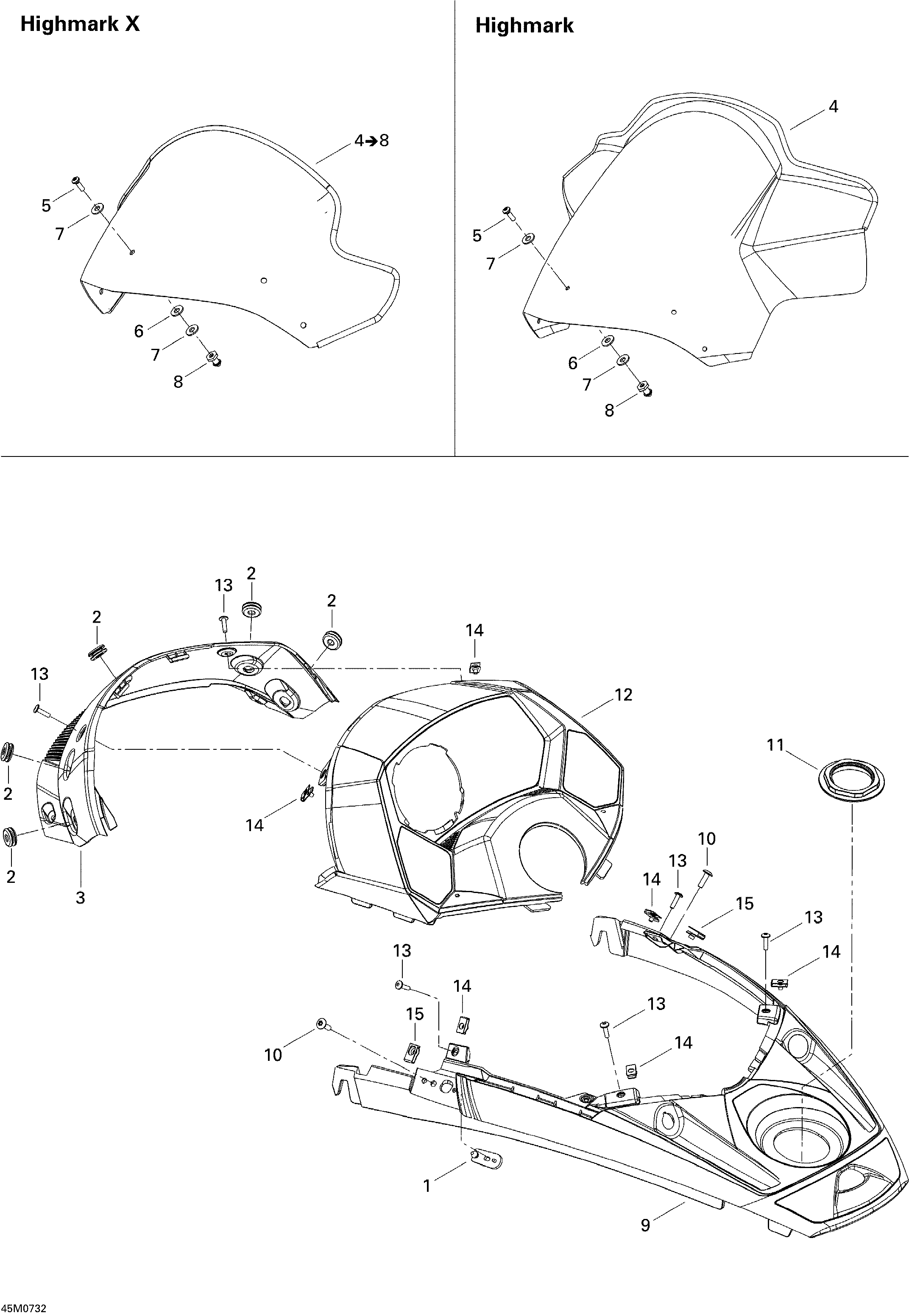

09- Windshield And Console для BRP Ski-Doo Summit Highmark & Highmark X 1000 SDI - 2007
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2517302841 GrommetGrommet
-
3517303219 Indicator Support DoorIndicator Support Door
-
4517303270 High Windshield. HighmarkHigh Windshield. Highmark
-
4517303711 Low Windshield. Includes 4 to 8, Highmark XLow Windshield. Includes 4 to 8, Highmark X
-
5250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
6250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
7250200025 Washer M5Washer M5
-
8517303439 KnobKnob
-
9517303533 Center Console. HighmarkCenter Console. Highmark
-
9517303726 Center Console. Highmark XCenter Console. Highmark X
-
10250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11517302575 Console NutConsole Nut
-
12517303358 Indicator SupportIndicator Support
-
13250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
14250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
15250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
