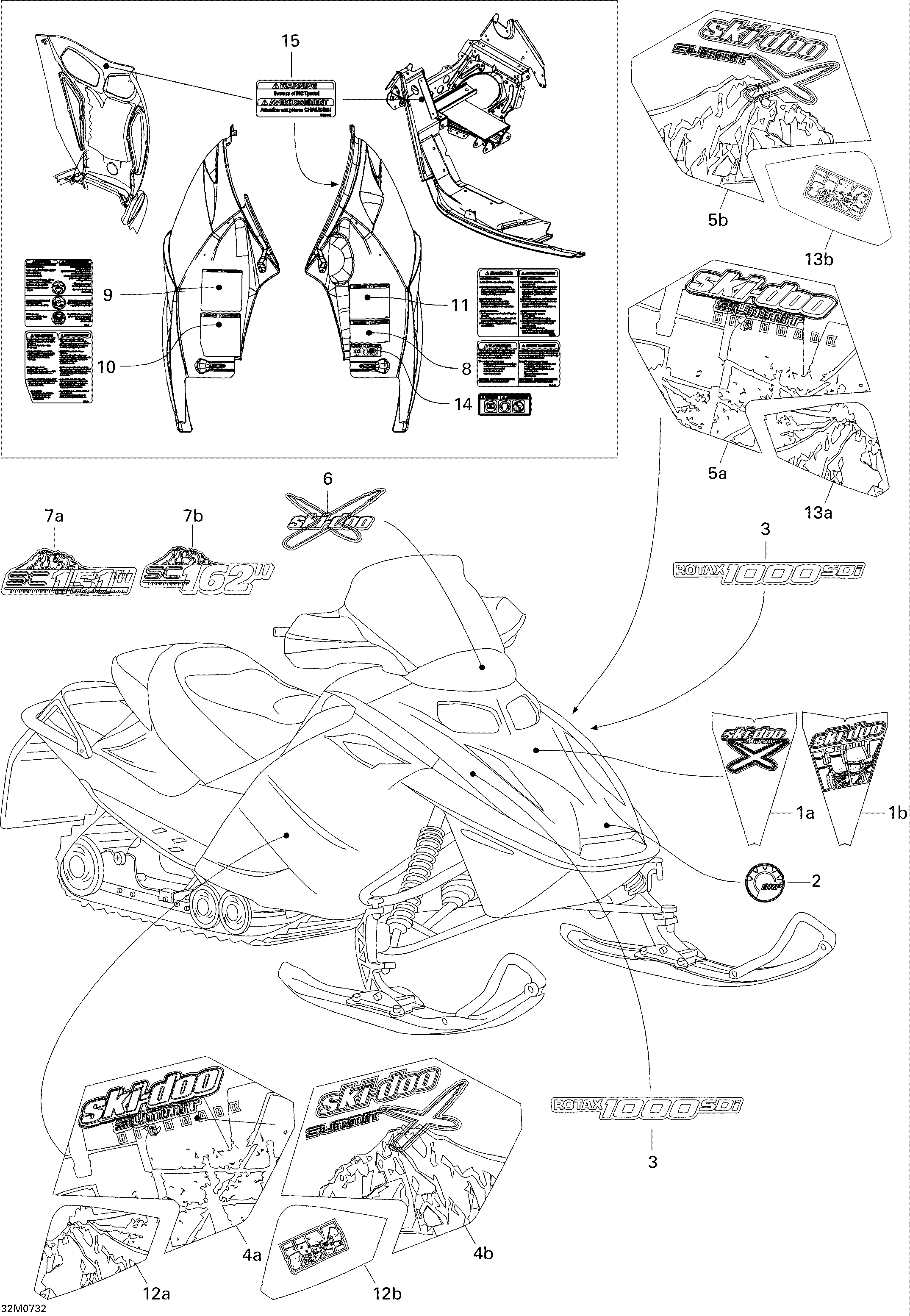

09- Decals для BRP Ski-Doo Summit Highmark & Highmark X 1000 SDI - 2007
-
№АртикулНазвание
-
1a516003111 Hood Decal. HIGHMARK XHood Decal. HIGHMARK X
-
1b516003174 Front Decal. HIGHMARKFront Decal. HIGHMARK
-
2219902468 Logo BRPLogo BRP
-
3516002841 Decal Rotax 1000SDIDecal Rotax 1000SDI
-
4a516003176 RH Side Decal. HIGHMARKRH Side Decal. HIGHMARK
-
4b516003181 RH Side Decal. HIGHMARK XRH Side Decal. HIGHMARK X
-
5a516003175 LH Side Decal. HIGHMARKLH Side Decal. HIGHMARK
-
5b516003180 LH Side Decal. HIGHMARK XLH Side Decal. HIGHMARK X
-
6516002874 Windshield Decal. HIGHMARK XWindshield Decal. HIGHMARK X
-
7A516002554 Forming Frame Decal 151''. HIGHMARK XForming Frame Decal 151''. HIGHMARK X
-
7b516002620 Forming Frame Decal 162''. HIGHMARK XForming Frame Decal 162''. HIGHMARK X
-
8516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
9516002908 Security Label, GeneralSecurity Label, General
-
10516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
11516003024 Security Label, StartingSecurity Label, Starting
-
12a516003178 RH Lower Side Decal. HIGHMARKRH Lower Side Decal. HIGHMARK
-
12b516003183 Decal. HIGHMARK XDecal. HIGHMARK X
-
13a516003177 LH Lower Side Decal. HIGHMARKLH Lower Side Decal. HIGHMARK
-
13b516003182 LH Lower Side Decal. HIGHMARK XLH Lower Side Decal. HIGHMARK X
-
14516003027 Europe Pictogram Decal. EUROPEEurope Pictogram Decal. EUROPE
-
15516002965 Security Label, Hot PartsSecurity Label, Hot Parts
