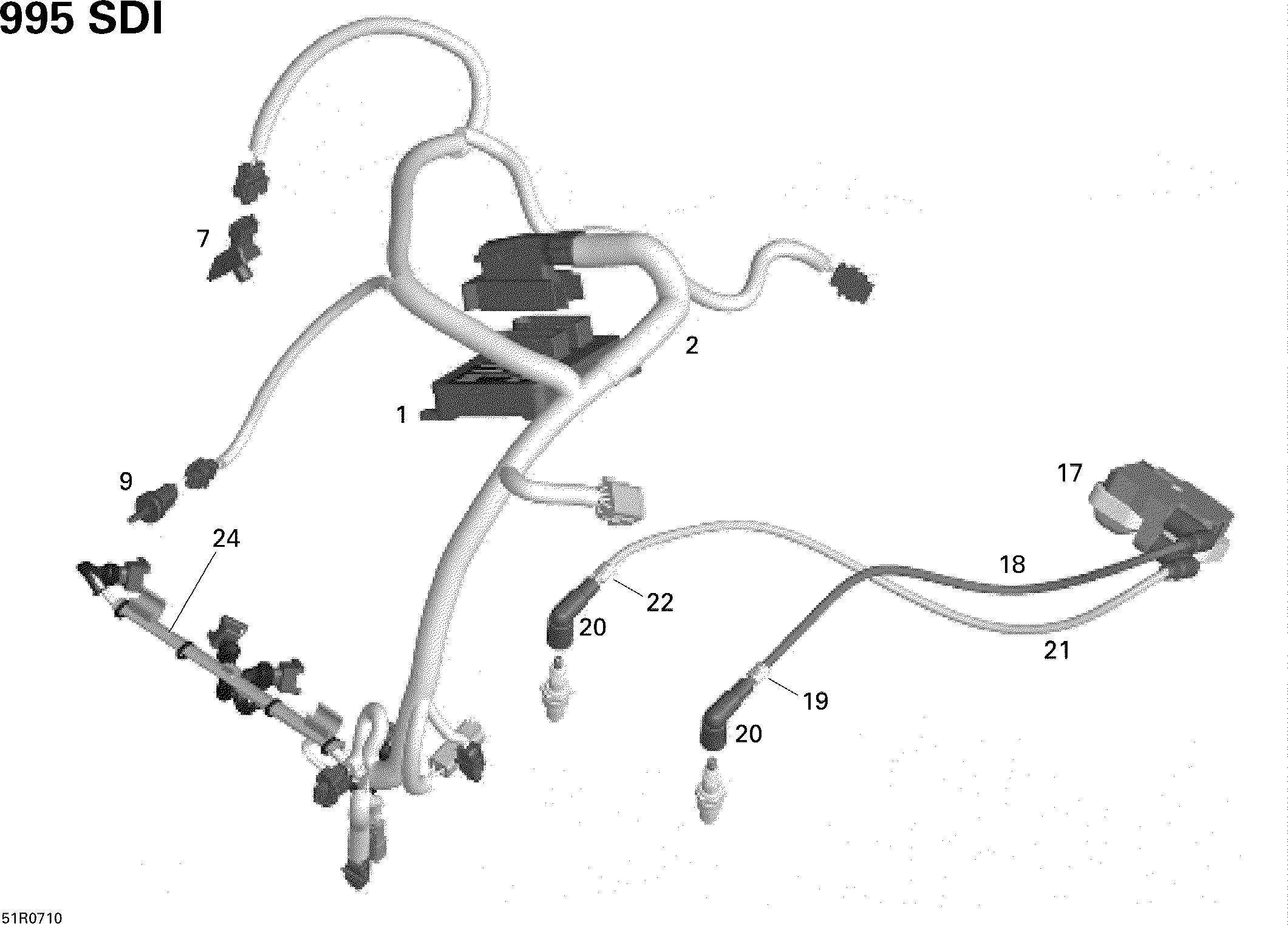

10- Engine Harness And Electronic Module, HM C/U, HMX для BRP Ski-Doo Summit Highmark & Highmark X 1000 SDI - 2007
-
№АртикулНазвание
-
1420664619 Ecm, Engine Control ModuleEcm, Engine Control Module
-
2420664550 Engine Wiring HarnessEngine Wiring Harness
-
7420274055 Pressure SensorPressure Sensor
-
9420966970 Temperature SensorTemperature Sensor
-
17278001546 Ignition CoilIgnition Coil
-
18420665335 Ignition Cable, Mag SideIgnition Cable, Mag Side
-
19420660632 Sleeve, Mag SideSleeve, Mag Side
-
20278000237 Spark Plug CapSpark Plug Cap
-
21420665330 spark plug cable, rear, 610 mm PTO Sidespark plug cable, rear, 610 mm PTO Side
-
22420660630 Sleeve, PTO SideSleeve, PTO Side
-
24420960880 Harness SupportHarness Support
Все узлы модели:
- 01- Cooling System
- 01- Crankcase
- 01- Crankshaft And Pistons
- 01- Cylinder and Cylinder Head, HM C/U, HMX
- 01- Cylinder and Cylinder Head, MACH, MXZ, HM EUR
- 01- Engine Highmark
- 01- Engine Highmark X
- 01- Exhaust System
- 02- Air Intake System
- 02- Fuel System
- 02- Oil System
- 03- Magneto
- 04- Rewind Starter
- 05- Drive System
- 05- Pulley System
- 06- Hydraulic Brakes
- 07- Front Suspension And Ski
- 07- Steering System
- 07- Take Apart Shock, Front
- 08- Front Arm
- 08- Rear Arm
- 08- Rear Suspension
- 08- Rear Suspension Shocks
- 08- Take Apart Shock, Rear X
- 09- Bottom Pan
- 09- Decals
- 09- Frame and Components
- 09- Frame RT 151
- 09- Frame RT 162
- 09- Hood
- 09- Luggage Rack
- 09- Seat HM
- 09- Seat X
- 09- Utilities
- 09- Windshield And Console
- 10- Electrical Accessories
- 10- Electrical Harness
- 10- Electrical System
- • 10- Engine Harness And Electronic Module, HM C/U, HMX
- 10- Engine Harness And Electronic Module, Mach, MXZ, HM EUR
- 10- Multi Function Plate Harness
- 10- Steering Wiring Harness
