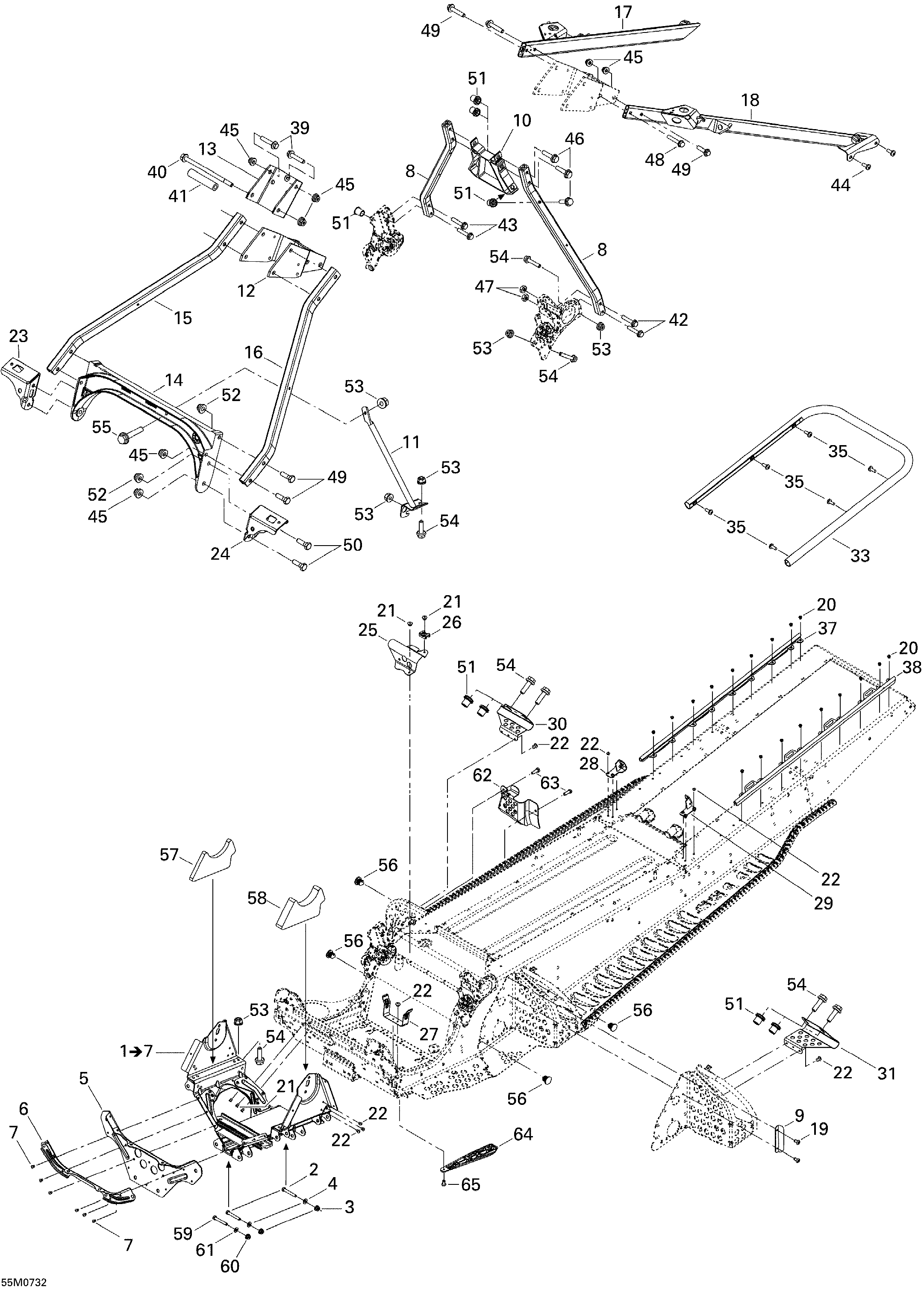

09- Frame and Components для BRP Ski-Doo Summit Highmark & Highmark X 1000 SDI - 2007
-
№АртикулНазвание
-
1518325433 Front Member Ass'y. Includes 1 to 7Front Member Ass'y. Includes 1 to 7
-
2207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518325422 Front PlateFront Plate
-
6518324727 Front Plate ReinforcementFront Plate Reinforcement
-
7390909100 Avex RivetAvex Rivet
-
8518324228 Handle SupportHandle Support
-
9518317504 Cable ProtectorCable Protector
-
10518323811 Handle Support ReinforcementHandle Support Reinforcement
-
11518324080 Brace, BlackBrace, Black
-
12518323676 Attachment BracketAttachment Bracket
-
13518324046 Steering Column SupportSteering Column Support
-
14518324265 Upper Cross MemberUpper Cross Member
-
15518324285 RH Front BraceRH Front Brace
-
16518324286 LH Front BraceLH Front Brace
-
17518324182 RH MemberRH Member
-
18518324183 LH MemberLH Member
-
19390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
20390402400 Pop Rivet 3/16''. 162'' TrackPop Rivet 3/16''. 162'' Track
-
20390402400 Pop Rivet 3/16''. 151'' TrackPop Rivet 3/16''. 151'' Track
-
21390909100 Avex RivetAvex Rivet
-
22390909200 Avex RivetAvex Rivet
-
23518324148 RH Shock BracketRH Shock Bracket
-
24518324150 LH Shock BracketLH Shock Bracket
-
25518323584 Hose SupportHose Support
-
26293750031 Tie Rap MountTie Rap Mount
-
27518202100 Belt Guard BracketBelt Guard Bracket
-
28518323769 RH Bracket, BlackRH Bracket, Black
-
29518323770 LH Bracket, BlackLH Bracket, Black
-
30518323948 RH Toe HoldRH Toe Hold
-
31518324392 LH Toe HoldLH Toe Hold
-
33518324833 Rear Bumper. 151'' TrackRear Bumper. 151'' Track
-
33518324853 Rear Bumper. 162'' TrackRear Bumper. 162'' Track
-
35236282084 Hex Screw M8 X 20Hex Screw M8 X 20
-
37518324940 RH Wire Protector. 151'' TrackRH Wire Protector. 151'' Track
-
37518324941 RH Wire Protector. 162'' TrackRH Wire Protector. 162'' Track
-
38518324942 LH Wire Protector. 151'' TrackLH Wire Protector. 151'' Track
-
38518324943 LH Wire Protector. 162'' TrackLH Wire Protector. 162'' Track
-
39207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
40230684044 Hex. Flanged Screw M8 X 140Hex. Flanged Screw M8 X 140
-
41518324048 SpacerSpacer
-
42250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
43207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
44250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
45233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
46250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
47232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
48207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
49207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
50207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
51415107300 InsertInsert
-
52232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
53233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
54207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
55207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
56518321954 Fastener PanelFastener Panel
-
57518324372 RH Front FoamRH Front Foam
-
58518323007 LH Front FoamLH Front Foam
-
59207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
60233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
61234081410 Flat Washer 8 mmFlat Washer 8 mm
-
62518324609 Footrest ExtensionFootrest Extension
-
63207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
64518324438 Front ProtectorFront Protector
-
65293150104 Pop Rivet 3/16''Pop Rivet 3/16''
