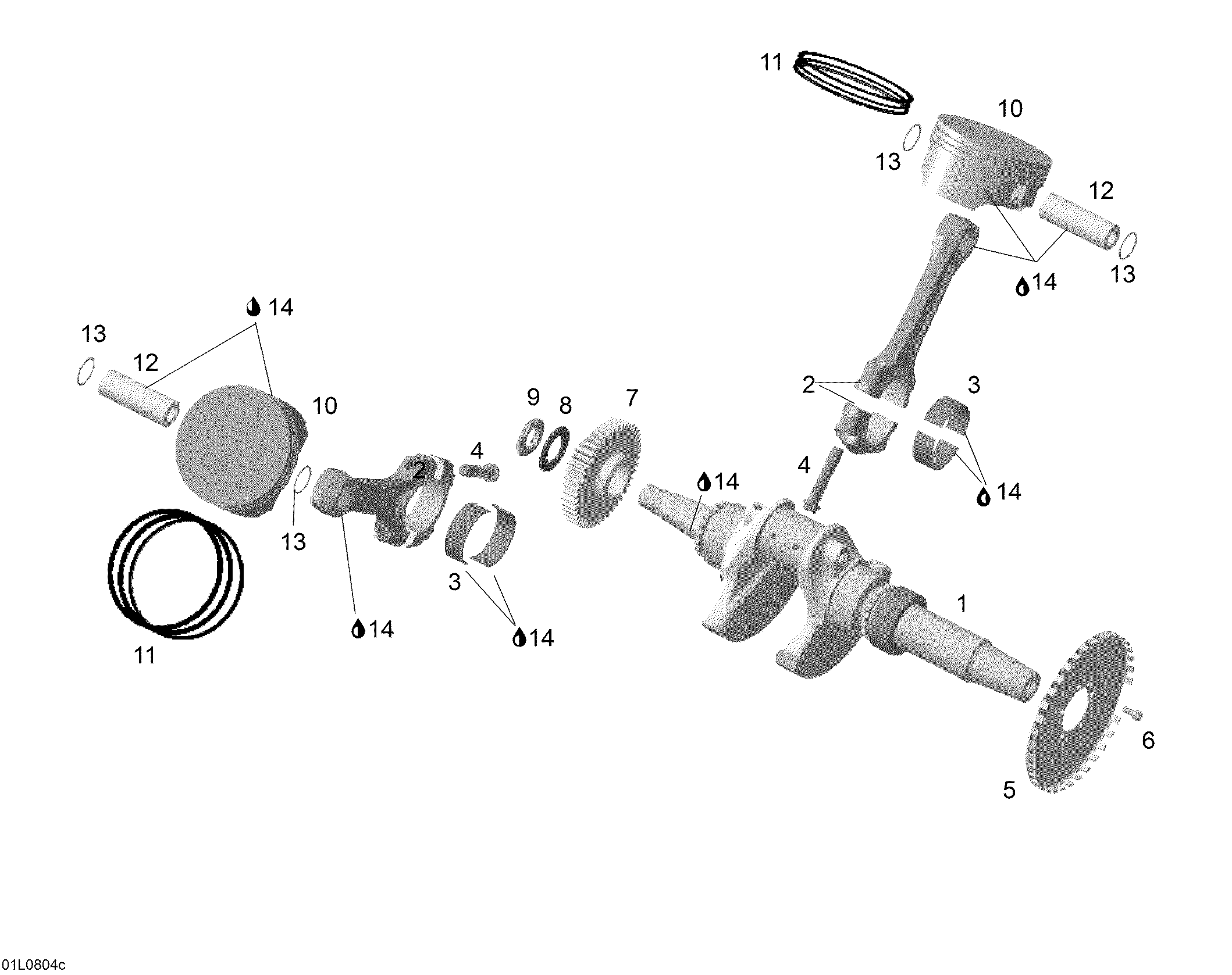

01- Crankshaft And piston для BRP Ski-Doo Expedition V-1300 - 2008
-
№АртикулНазвание
-
1420819087 Crankshaft Ass'yCrankshaft Ass'y
-
2420917525 Connecting RodConnecting Rod
-
3420933520 Half-BearingHalf-Bearing
-
4420640990 Connecting Rod ScrewConnecting Rod Screw
-
5420966850 Trigger WheelTrigger Wheel
-
6420640541 Socket Head Screw M5 X 12Socket Head Screw M5 X 12
-
7420834446 Drive Gear 45 TeethDrive Gear 45 Teeth
-
8420245860 Spring WasherSpring Washer
-
9420242871 Hex. Nut M22 X 1.5Hex. Nut M22 X 1.5
-
10420890087 Piston Ass'y 99,96Piston Ass'y 99,96
-
11420891124 Piston Ring SetPiston Ring Set
-
12420216250 Piston PinPiston Pin
-
13420845580 CirclipCirclip
-
14293600054 Synth Oil 4T 12x1Synth Oil 4T 12x1
