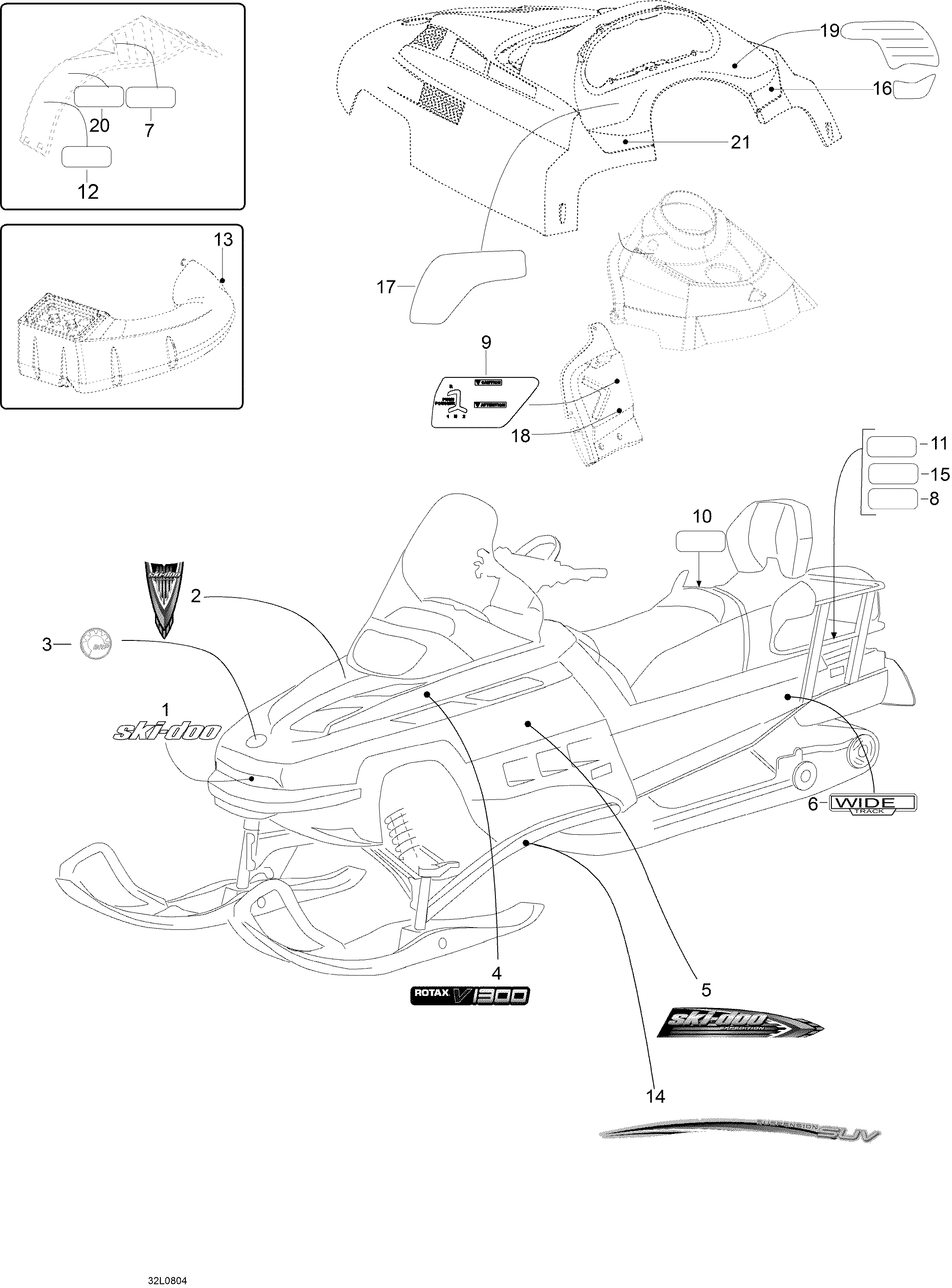

09- Decals для BRP Ski-Doo Expedition V-1300 - 2008
-
№АртикулНазвание
-
1516000338 Decal - «Ski-Doo»Decal - «Ski-Doo»
-
2516003195 Hood DecalHood Decal
-
3219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
4605354581 DecalDecal
-
5516003241 RH Side DecalRH Side Decal
-
5516003242 LH Side DecalLH Side Decal
-
6516002712 Frame DecalFrame Decal
-
7516002965 Security Label, Hot PartsSecurity Label, Hot Parts
-
8516002673 Warning DecalWarning Decal
-
9516001201 Reverse DecalReverse Decal
-
10516003474 Security LabelSecurity Label
-
11516003037 Warning Decal-Security-EnglishWarning Decal-Security-English
-
12516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
13516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
14516003200 DecalDecal
-
14516003201 DecalDecal
-
15516002667 Warning Label, Security, HitchWarning Label, Security, Hitch
-
16516002692 Instruction LabelInstruction Label
-
17516002693 Instruction LabelInstruction Label
-
18516002694 Instruction LabelInstruction Label
-
19516002695 Instruction LabelInstruction Label
-
20516001791 Decal - Checking Engine Oil LevelDecal - Checking Engine Oil Level
-
21605350682 Warning label, hoodWarning label, hood
