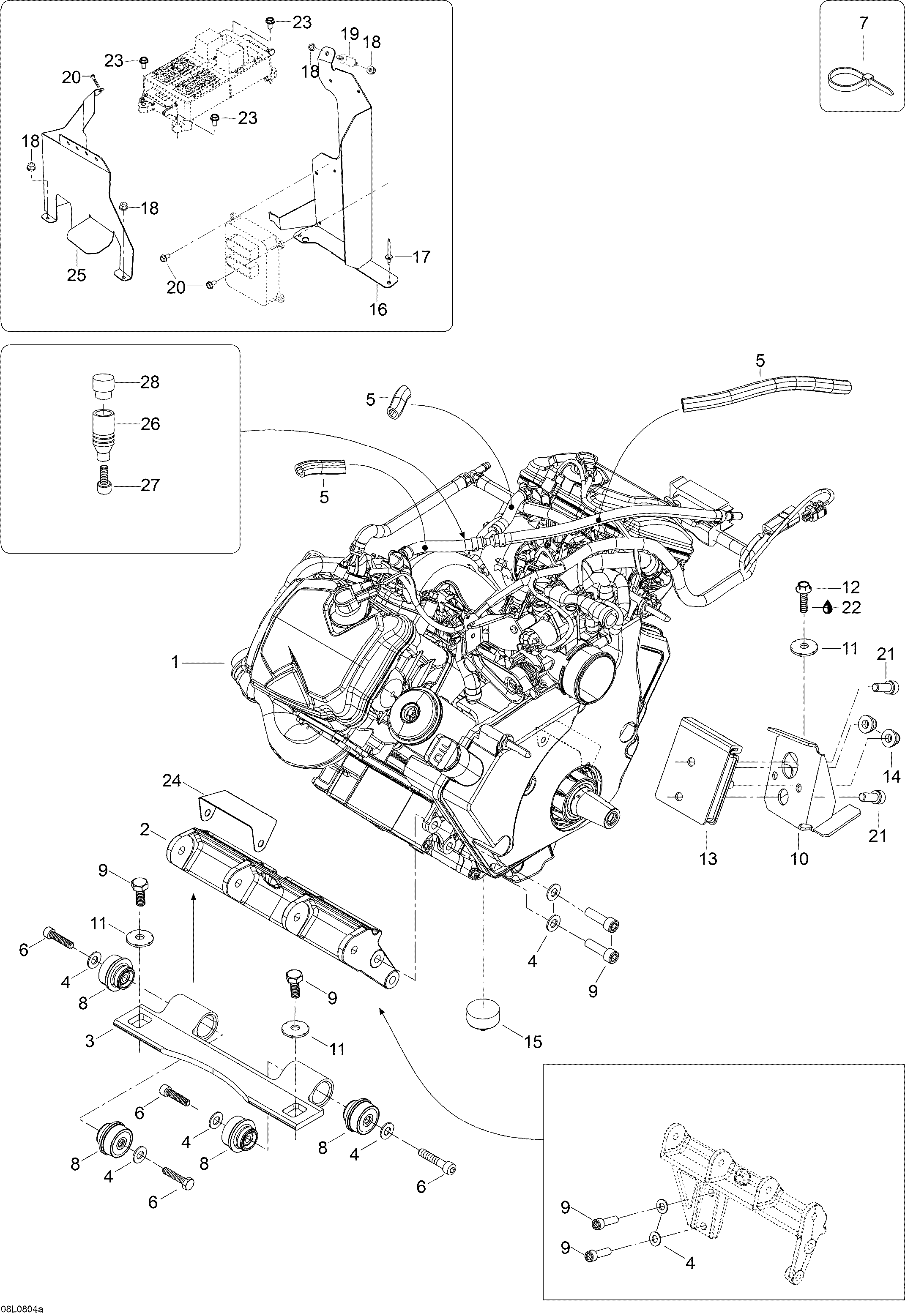

01- Engine And Engine Support для BRP Ski-Doo Expedition V-1300 - 2008
-
№АртикулНазвание
-
1361304190 EngineEngine
-
2605250905 Engine Mount. PlateEngine Mount. Plate
-
3512059425 Front Engine SupportFront Engine Support
-
4M20105 WasherWasher
-
5M27127 TubingTubing
-
6205003544 Socket Screw M10 X 35Socket Screw M10 X 35
-
7414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
8512059691 Rubber MountRubber Mount
-
9207103044 Hex. Screw M10 X 30Hex. Screw M10 X 30
-
10605350835 Engine Rear SupportEngine Rear Support
-
11512056700 Lock WasherLock Washer
-
12M40335 ScrewScrew
-
13512059958 Rubber MountRubber Mount
-
14M33074 NutNut
-
15512059710 StopperStopper
-
16605250844 Module SupportModule Support
-
17M36108 RivetRivet
-
18M33200 Nut M6Nut M6
-
19M12419 Rubber MountRubber Mount
-
20M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
21M40053 ScrewScrew
-
22293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
23210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
24514053620 Front DeflectorFront Deflector
-
25605351330 Temperature ShieldTemperature Shield
-
26605350745 SupportSupport
-
27M40053 ScrewScrew
-
28570044700 Rubber BumperRubber Bumper
