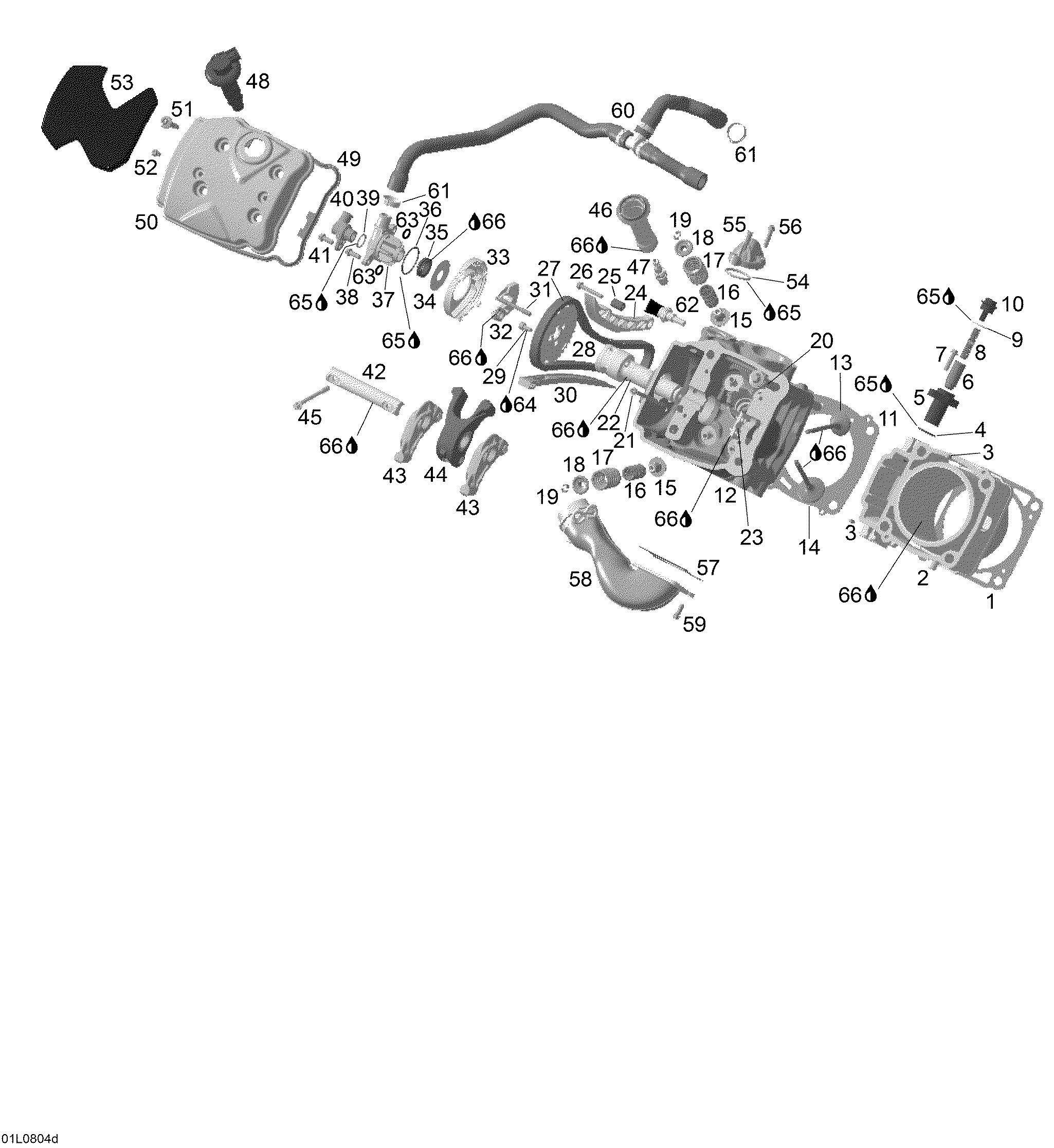

01- Cylinder Head Front для BRP Ski-Doo Expedition V-1300 - 2008
-
№АртикулНазвание
-
1420630080 GasketGasket
-
2420623212 Cylinder with Sleeve. Includes 2 to 3Cylinder with Sleeve. Includes 2 to 3
-
3420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
4420430370 O-RingO-Ring
-
5420236510 Chain Tensioner HousingChain Tensioner Housing
-
6420236520 Chain Tensioner PlungerChain Tensioner Plunger
-
7420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
8420238120 SpringSpring
-
9420250890 O-RingO-Ring
-
10420641150 Plug ScrewPlug Screw
-
11420950660 Cylinder Head GasketCylinder Head Gasket
-
12420613475 Cylinder Head Ass'YCylinder Head Ass'Y
-
13420254027 Exhaust Valve 31 mmExhaust Valve 31 mm
-
14420254293 Intake Valve, 38 mmIntake Valve, 38 mm
-
15420630200 Valve Stem SealValve Stem Seal
-
16420838280 Valve Spring InsideValve Spring Inside
-
17420238180 Valve SpringValve Spring
-
18420254281 Valve Spring RetainerValve Spring Retainer
-
19420253645 Valve CotterValve Cotter
-
20420641020 Torx Screw M11 X 215Torx Screw M11 X 215
-
21420440612 Flanged Torx Screw M6 X 105Flanged Torx Screw M6 X 105
-
22420837575 Camshaft FrontCamshaft Front
-
23420851693 Camshaft GuideCamshaft Guide
-
24420236540 Chain Tensioner GuideChain Tensioner Guide
-
25420247100 Distance SleeveDistance Sleeve
-
26420440272 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
27420297957 Camshaft ChainCamshaft Chain
-
28420254307 Timing Gear, 38 TeethTiming Gear, 38 Teeth
-
29420840031 Screw M6 X 12Screw M6 X 12
-
30420236500 Chain GuideChain Guide
-
31420220791 Deko ShaftDeko Shaft
-
32420231064 Centrifugal Weight Ass'YCentrifugal Weight Ass'Y
-
33420660036 CoverCover
-
34420627494 Thrust WasherThrust Washer
-
35420630125 V-ringV-ring
-
36420950870 O-RingO-Ring
-
37420610272 Camshaft CoverCamshaft Cover
-
38420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
39420430220 O-RingO-Ring
-
40420660275 Connecting CoverConnecting Cover
-
41420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
42420854599 Rocker Arm Shaft Ass'yRocker Arm Shaft Ass'y
-
43420254329 Rocker Arm, ExhaustRocker Arm, Exhaust
-
44420254316 Rocker Arm, InnerRocker Arm, Inner
-
45420641080 Torx Screw M8 X 72Torx Screw M8 X 72
-
46420851751 Spark Plug PipeSpark Plug Pipe
-
47707000246 Spark Plug, NGK DCP-R8ESpark Plug, NGK DCP-R8E
-
48420664020 Stick CoilStick Coil
-
49420630071 Sealing RingSealing Ring
-
50420610185 Valve CoverValve Cover
-
51420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
52420641488 Torx Screw M6 X 8Torx Screw M6 X 8
-
53420660201 Valve CoverValve Cover
-
54420950890 O-RingO-Ring
-
55420811700 Connecting CoverConnecting Cover
-
56420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
57420950680 GasketGasket
-
58420973782 Exhaust Manifold Ass'yExhaust Manifold Ass'y
-
59420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
60420660713 Air Vent Line Ass'yAir Vent Line Ass'y
-
61420853153 ClampClamp
-
62420222425 Temperature SensorTemperature Sensor
-
63420230415 Seal WasherSeal Washer
-
64293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
65293550030 Grease, Super LubeGrease, Super Lube
-
66293600054 Synth Oil 4T 12x1Synth Oil 4T 12x1
