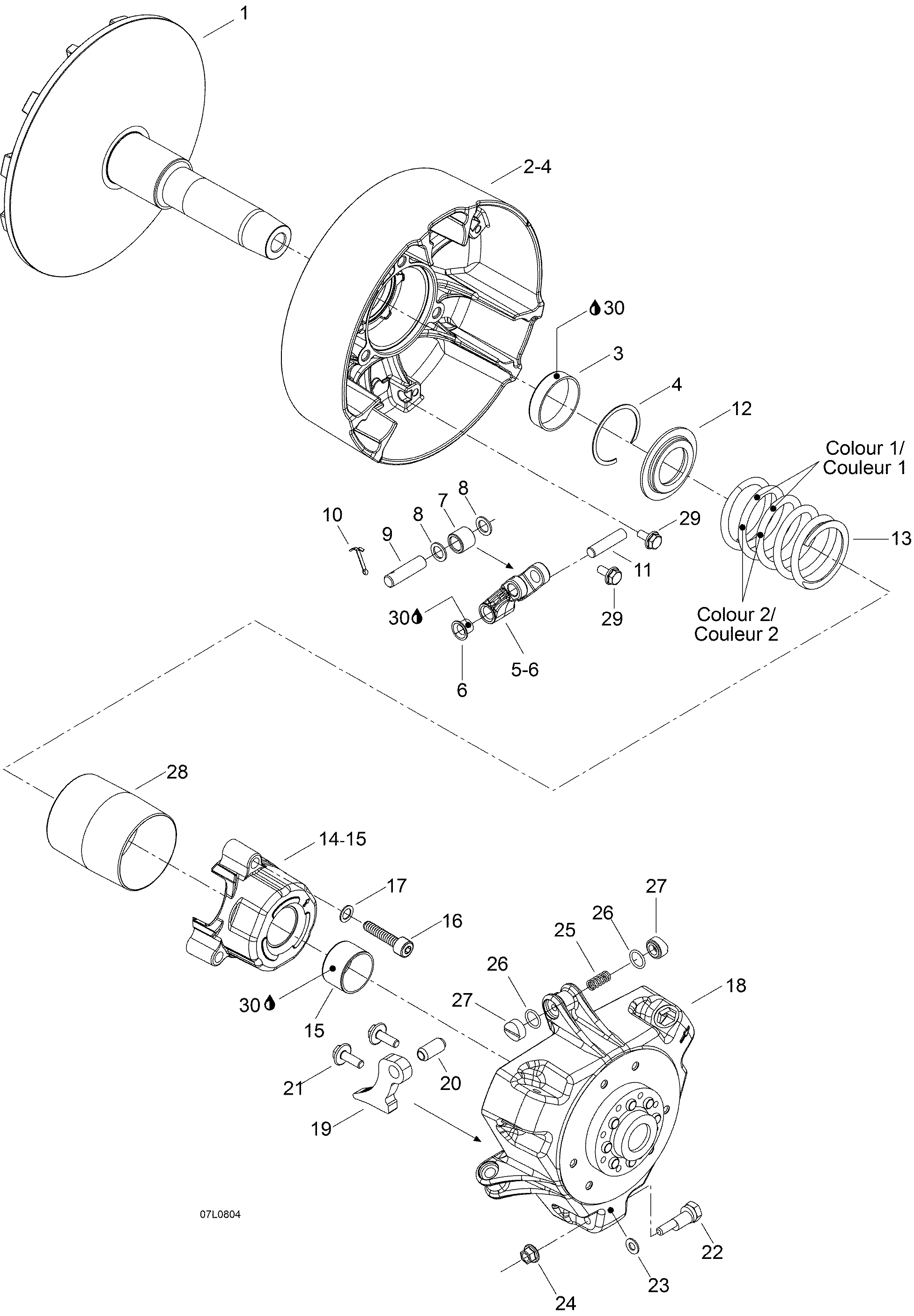

05- Drive Pulley для BRP Ski-Doo Expedition V-1300 - 2008
-
№АртикулНазвание
-
1417222743 Fixed Flange Ass'yFixed Flange Ass'y
-
2417222646 Sliding Flange Ass'y. Includes 2 to 4Sliding Flange Ass'y. Includes 2 to 4
-
3417222758 BushingBushing
-
4293370037 CirclipCirclip
-
5605354281 Lever Ass'y. Includes 5 to 6Lever Ass'y. Includes 5 to 6
-
6417004305 BushingBushing
-
7417222947 RollerRoller
-
8417004302 Stopper WasherStopper Washer
-
9417004308 PinPin
-
10417222813 Pin ScrewPin Screw
-
11605354282 Lever PinLever Pin
-
12417222745 Seat SpringSeat Spring
-
13414993000 Tra SpringTra Spring
-
14417222746 Spring Cover Ass'y. Includes 14 to 15Spring Cover Ass'y. Includes 14 to 15
-
15417009204 BushingBushing
-
16205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
17250200009 Lock Washer 8 mmLock Washer 8 mm
-
18417222729 Governor Cup Ass'y.Governor Cup Ass'y.
-
19605254091 Ramp, 607 hrRamp, 607 hr
-
20250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
21207162044 Hex. Cap Screw M6 X 20Hex. Cap Screw M6 X 20
-
22417222695 Calibration screwCalibration screw
-
23420827305 Flat WasherFlat Washer
-
24233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
25417005700 SpringSpring
-
26732401030 O-RingO-Ring
-
27417223021 Slider ShoeSlider Shoe
-
28417009205 GuardGuard
-
29210361296 Hex. Forming Screw M6 X 12Hex. Forming Screw M6 X 12
-
30413703100 Loctite 609, 10 mlLoctite 609, 10 ml
