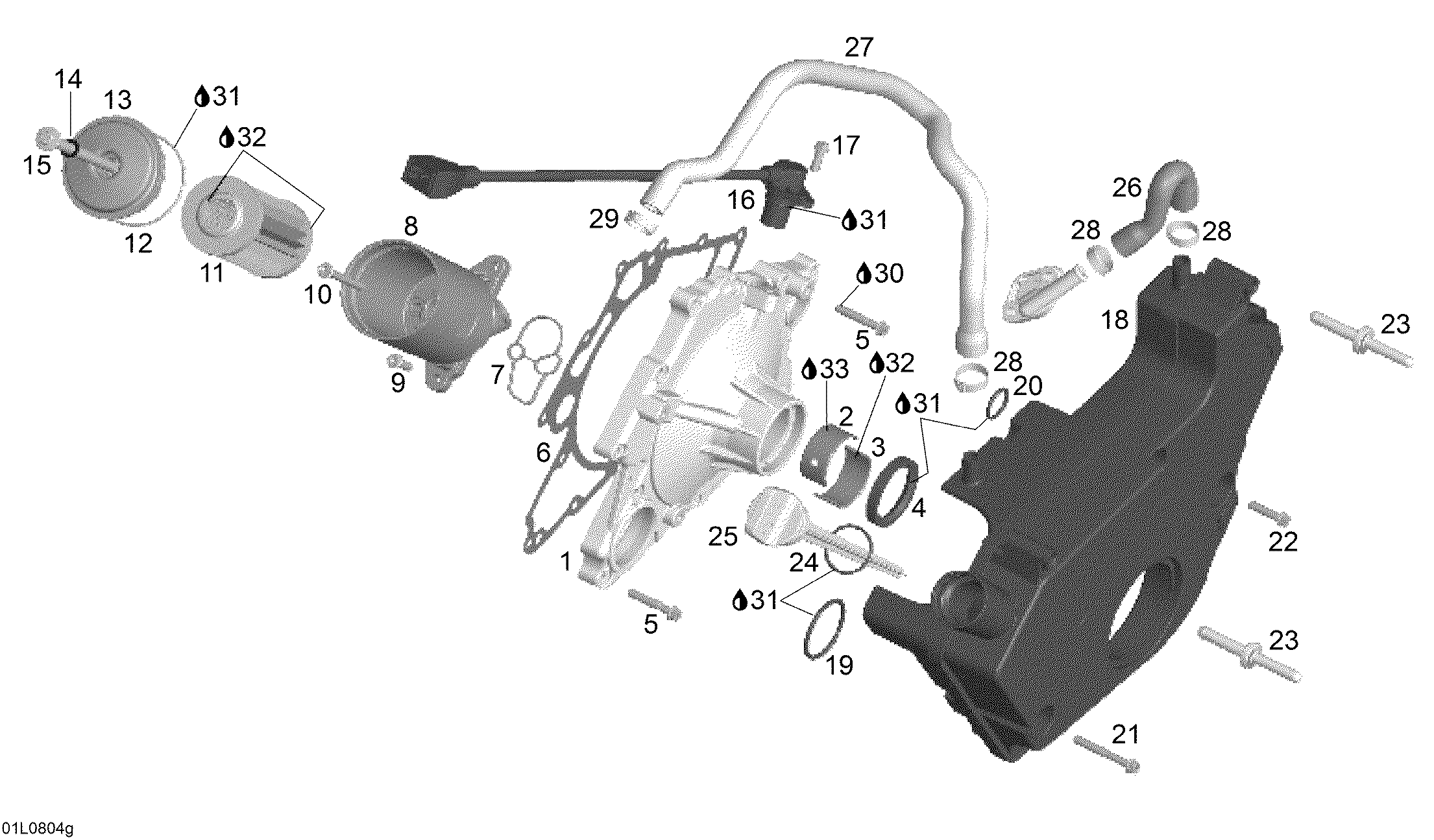

01- Oil System для BRP Ski-Doo Expedition V-1300 - 2008
-
№АртикулНазвание
-
1420811675 Clutch Cover Ass'yClutch Cover Ass'y
-
2420933540 Plain BearingPlain Bearing
-
3420933545 Plain BearingPlain Bearing
-
4420931155 Oil SealOil Seal
-
5420440272 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
6420950610 GasketGasket
-
7420950990 GasketGasket
-
8420811903 Oil Filter Housing Ass'yOil Filter Housing Ass'y
-
9420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
10420440602 Hex. Flanged Screw M6 X 65Hex. Flanged Screw M6 X 65
-
11420956741 Oil FilterOil Filter
-
12420230920 O-RingO-Ring
-
13420610326 Oil Filter CoverOil Filter Cover
-
14420950860 O-ringO-ring
-
15420641105 Hex. Screw M8 X 140.5Hex. Screw M8 X 140.5
-
16420966570 Crank Position Trigger Ass'yCrank Position Trigger Ass'y
-
17420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
18420956700 Oil Tank Ass'YOil Tank Ass'Y
-
19420631400 O-RingO-Ring
-
20420631410 O-RingO-Ring
-
21420440322 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
22420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
23420660860 Fixation BoltFixation Bolt
-
24420430590 O-ringO-ring
-
25420956890 Oil DipstickOil Dipstick
-
26420960740 HoseHose
-
27420960801 HoseHose
-
28420853143 ClampClamp
-
29420853313 ClampClamp
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31293550030 Grease, Super LubeGrease, Super Lube
-
32293600054 Synth Oil 4T 12x1Synth Oil 4T 12x1
-
33420899271 Petamo Grease, GHY133N, 400 GPetamo Grease, GHY133N, 400 G
