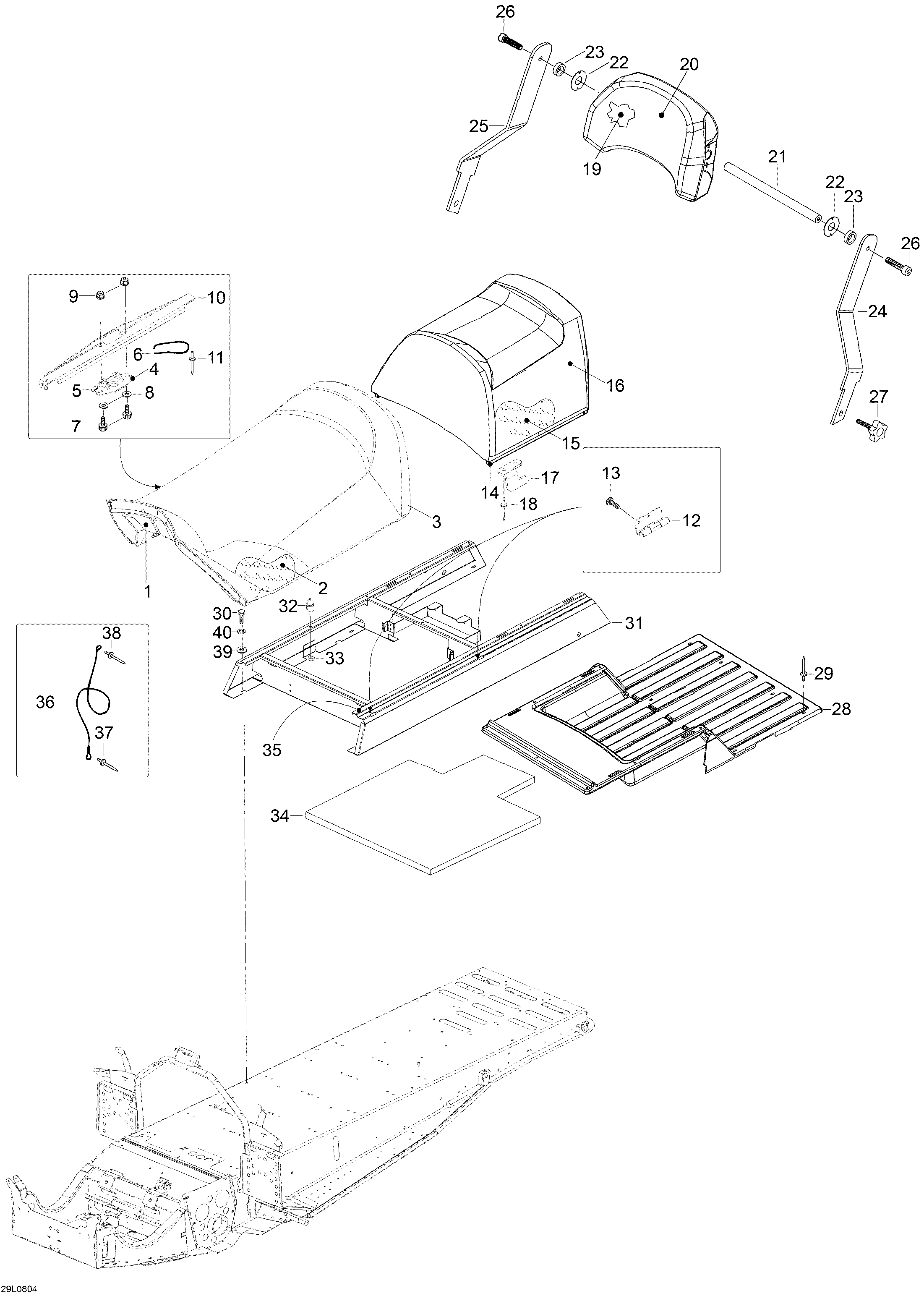

09- Seat для BRP Ski-Doo Expedition V-1300 - 2008
-
№АртикулНазвание
-
1605251388 Seat Base, FrontSeat Base, Front
-
2605254497 Front Foam SeatFront Foam Seat
-
3605254494 Front Cover SeatFront Cover Seat
-
4269700076 Latch CoverLatch Cover
-
5269700077 Latch LeverLatch Lever
-
6269700017 Latch SpringLatch Spring
-
7M40276 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
8M20003 Washer 6 mmWasher 6 mm
-
9M33010 Nut Elastic M6Nut Elastic M6
-
10605352483 Support PlateSupport Plate
-
11M36088 RivetRivet
-
12605351798 HingeHinge
-
13M40890 Screw 4,2 X 16Screw 4,2 X 16
-
14605251390 Seat Base, RearSeat Base, Rear
-
15605254498 Rear Seat FoamRear Seat Foam
-
16605254496 Seat CoverSeat Cover
-
17605351808 LH HookLH Hook
-
17605352007 RH HookRH Hook
-
18M36087 RivetRivet
-
19605255225 FoamFoam
-
20605355498 Backrest CoverBackrest Cover
-
21605355357 Backrest AxleBackrest Axle
-
22605355358 WasherWasher
-
23510004378 Rubber ShimRubber Shim
-
24605355499 LH ArmLH Arm
-
25605355500 RH ArmRH Arm
-
26605640010 Screw M10x20Screw M10x20
-
27605640015 Handle M8 X 35Handle M8 X 35
-
28605355484 Tunnel CoverTunnel Cover
-
29M36036 Rivet-BlackRivet-Black
-
30207161644 Hex. Screw M6 X 16Hex. Screw M6 X 16
-
31605254706 Seat BaseSeat Base
-
32605452035 Lock PinLock Pin
-
33M33010 Nut Elastic M6Nut Elastic M6
-
34605352460 FoamFoam
-
35M28413 Sealing StripSealing Strip
-
36M546777 Retainer CableRetainer Cable
-
37M36037 RivetRivet
-
38M36489 RivetRivet
-
39M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
40234161471 Lock Washer M6, BlackLock Washer M6, Black
